Acedeck® Ares X1 All Terrain Electric Skateboard-Gear drive
Note: The maximum shipping discount is $65.
1. Using code: ACEIT09, when your shipping fee is ≤ $65.
2. Using code: ACEIT91, when your shipping fee is＞$65.
- All New Gear Drive System
- New Gen ESC 3.0 - 90A
- CNC TKP Trucks 2.0
- Up to 37mph Top Speed (With 200mm wheels)/ 35 Mile Range
- Dual-6384 Motors (3500W x2)
- IP65 Water Resistance
*Note:
The accessories of the same order number and Boss Limited Free Parts will be shipped by air separately and delivered in 12-15 days.
Shipping & Delivery
- US: Domestic Delivery (1-7 Days) in 48 hours
- EU: Domestic Delivery (1-7 Days) in 48 hours
- AU: Sea shipping (40-60 days) or Air shipping (12-14 days) from China in 48 hours.
- Other Countries: Standard shipping from China in 48 hours.
What's In The Box?
- Fully Assembled eBoard with All Terrain 180mm wheels * 1
- Remote Control with USB Charging Cable (The same as Ares X1) * 1
- DC Port Charger Adapter (US, AU, and EU plugs) * 1
- User Manual & Quick Start Guide * 1
- Screw * n
- T-tool * 1
- Torx Wrench (2.5mm & 3.0mm) * 2
What's Changed?
- Upgraded ESC: Experience the next level of performance with the X1 2023's 90A ESC, delivering enhanced speed and power.
- Gear Drive: The 2023 version features our celebrated helical gear-drive, while the 2022 version utilizes a belt drive system. Gear drive offers a host of advantages, including high torque capacity, low maintenance requirements, and outstanding transmission efficiency. However, if you lean towards the belt drive system, our Nomad N1 provides an array of options tailored to your preferences.
-
Streamlined Configuration: The X1 2023 retains the 2WD configuration, focusing on optimized performance and handling. We've discontinued the 4WD option since our new ESC will deliver more than enough
power in 2WD. - New Tires: Get ready for enhanced torque and traction with the X1 2023's 180*65mm street tires, built in collaboration with tire specialist HOTA. Compared to the previous generation's tires, the wider width and smaller diameter provide improved performance and a better riding experience.
- Upgraded Structure: We’ve upgraded the X1 2023’s bushings with a better PU formula and configuration, to improve the steering angle, and reactivity of the board, for more control and manoeuvrability.
- New Trucks: The X1 2023 also features our new-gen CNC trucks which has improved material and performance.
- Samsung 40T Battery: We've replaced the battery with the Samsung 40T, offering excellent discharge rate performance, but at a more affordable price point.
FAQ
Q: What are the key differences between X1 2023 and Nomad N1?
A: X1 2023 and Nomad N1 share similar performance, both equipped with a 90A ESC, gear drive train, 14S4P Samsung 40T battery pack, and 6384 motors.
However, they differ in deck material and structure. X1 2023 boasts a premium carbon fibre integrated body design for a sleek appearance and exceptional strength, while N1 incorporates a multi-layer composite material.
The riding experience also sets them apart. X1 2023 prioritizes high speed and stability, while N1 takes inspiration from downhill skateboarding. Choose X1 2023 if you prefer outstanding performance and a classic all terrain skateboard design with carbon fibre aesthetics. Opt for N1 if you're intrigued by the concept of downhill skateboarding.
Q: Ares X1 2023 Edition vs. Nyx Z1 Street Edition: What's the Difference?
A: The X1 2023 and the top-tier version of the Z1 Street offer similar performance: Both models feature a gear drive, 90A ESC, a 14S4P Samsung 40T battery pack, and 6384 motors, known for their excellent performance.
The main differences lie in the deck shape and structure. The X1 2023 is a classic 2-in-1 all terrain board with a rigid carbon fibre deck, while the Z1 Street embraces a traditional Mountain Board structure, offering some deck flexibility and resilience for off-road terrains.
Additionally, the Z1 Street is available in two versions, one with a 14S3P battery pack and the other with a 14S4P battery pack, to accommodate different preferences.
- US: Domestic Delivery (1-7 Days) in 48 hours
- EU: Domestic Delivery (1-7 Days) in 48 hours
- AU: Sea shipping (40-60 days) or Air shipping (12-14 days) from China in 48 hours.
- Other Countries: Standard shipping from China in 48 hours.
- Fully Assembled eBoard with All Terrain 180mm wheels * 1
- Remote Control with USB Charging Cable (The same as Ares X1) * 1
- DC Port Charger Adapter (US, AU, and EU plugs) * 1
- User Manual & Quick Start Guide * 1
- Screw * n
- T-tool * 1
- Torx Wrench (2.5mm & 3.0mm) * 2
- Upgraded ESC: Experience the next level of performance with the X1 2023's 90A ESC, delivering enhanced speed and power.
- Gear Drive: The 2023 version features our celebrated helical gear-drive, while the 2022 version utilizes a belt drive system. Gear drive offers a host of advantages, including high torque capacity, low maintenance requirements, and outstanding transmission efficiency. However, if you lean towards the belt drive system, our Nomad N1 provides an array of options tailored to your preferences.
-
Streamlined Configuration: The X1 2023 retains the 2WD configuration, focusing on optimized performance and handling. We've discontinued the 4WD option since our new ESC will deliver more than enough
power in 2WD. - New Tires: Get ready for enhanced torque and traction with the X1 2023's 180*65mm street tires, built in collaboration with tire specialist HOTA. Compared to the previous generation's tires, the wider width and smaller diameter provide improved performance and a better riding experience.
- Upgraded Structure: We’ve upgraded the X1 2023’s bushings with a better PU formula and configuration, to improve the steering angle, and reactivity of the board, for more control and manoeuvrability.
- New Trucks: The X1 2023 also features our new-gen CNC trucks which has improved material and performance.
- Samsung 40T Battery: We've replaced the battery with the Samsung 40T, offering excellent discharge rate performance, but at a more affordable price point.
Q: What are the key differences between X1 2023 and Nomad N1?
A: X1 2023 and Nomad N1 share similar performance, both equipped with a 90A ESC, gear drive train, 14S4P Samsung 40T battery pack, and 6384 motors.
However, they differ in deck material and structure. X1 2023 boasts a premium carbon fibre integrated body design for a sleek appearance and exceptional strength, while N1 incorporates a multi-layer composite material.
The riding experience also sets them apart. X1 2023 prioritizes high speed and stability, while N1 takes inspiration from downhill skateboarding. Choose X1 2023 if you prefer outstanding performance and a classic all terrain skateboard design with carbon fibre aesthetics. Opt for N1 if you're intrigued by the concept of downhill skateboarding.
Q: Ares X1 2023 Edition vs. Nyx Z1 Street Edition: What's the Difference?
A: The X1 2023 and the top-tier version of the Z1 Street offer similar performance: Both models feature a gear drive, 90A ESC, a 14S4P Samsung 40T battery pack, and 6384 motors, known for their excellent performance.
The main differences lie in the deck shape and structure. The X1 2023 is a classic 2-in-1 all terrain board with a rigid carbon fibre deck, while the Z1 Street embraces a traditional Mountain Board structure, offering some deck flexibility and resilience for off-road terrains.
Additionally, the Z1 Street is available in two versions, one with a 14S3P battery pack and the other with a 14S4P battery pack, to accommodate different preferences.
7000w
Power
37 Mph
Top Speed
34 Miles
Range
Comprehensive Power Boost
Endless Power

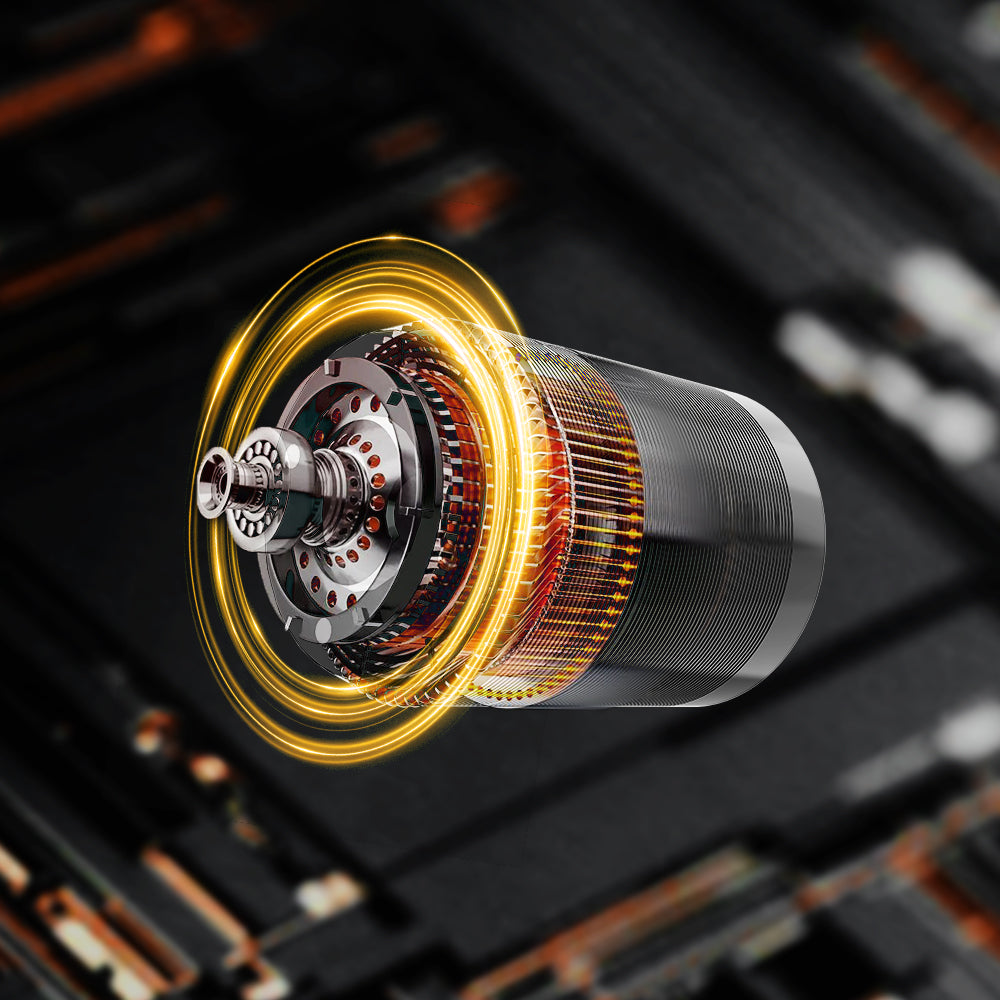

6384 Motor x 2, outshine the competition with unrivalled power.

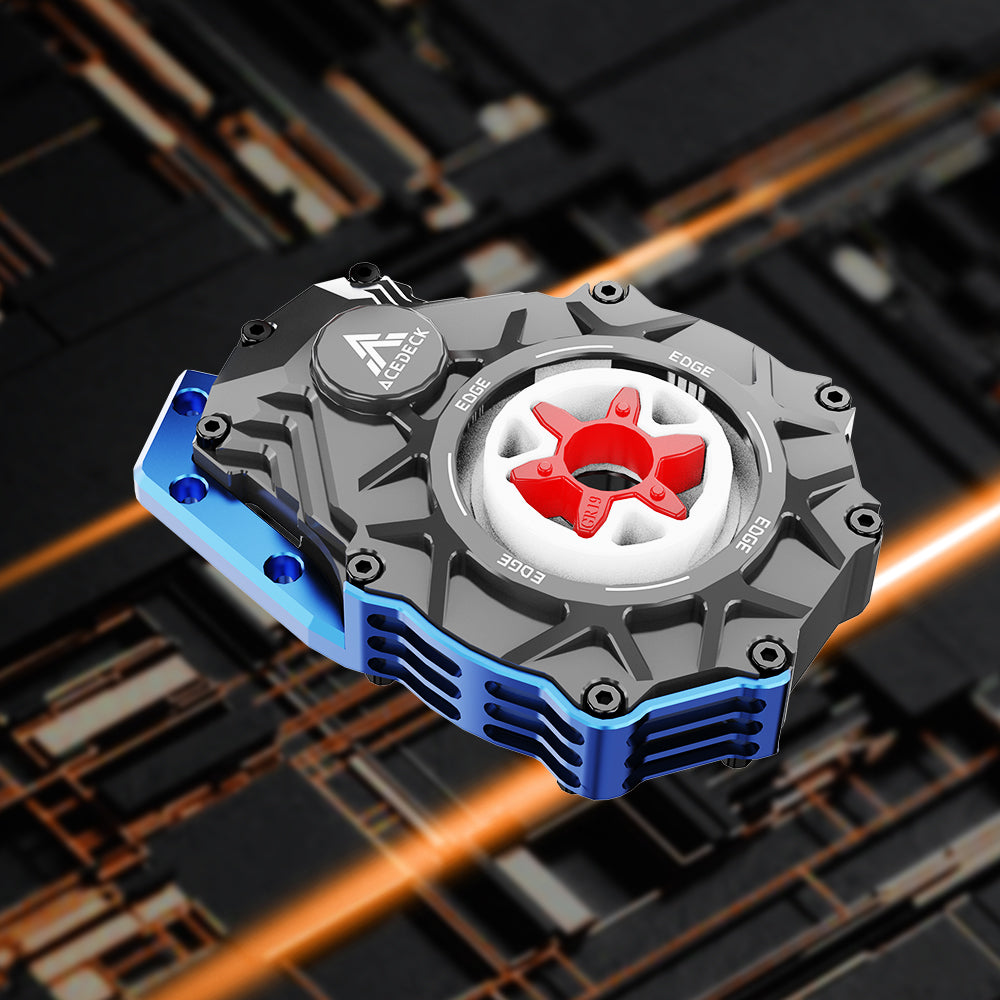

Gearing up
Leverage our cutting-edge gear drive design, unleash the full potential of the 6384 motors.
Smarter Control
ESC3.0 with 90A maximum output, 80% more power.
Seamless acceleration and braking.

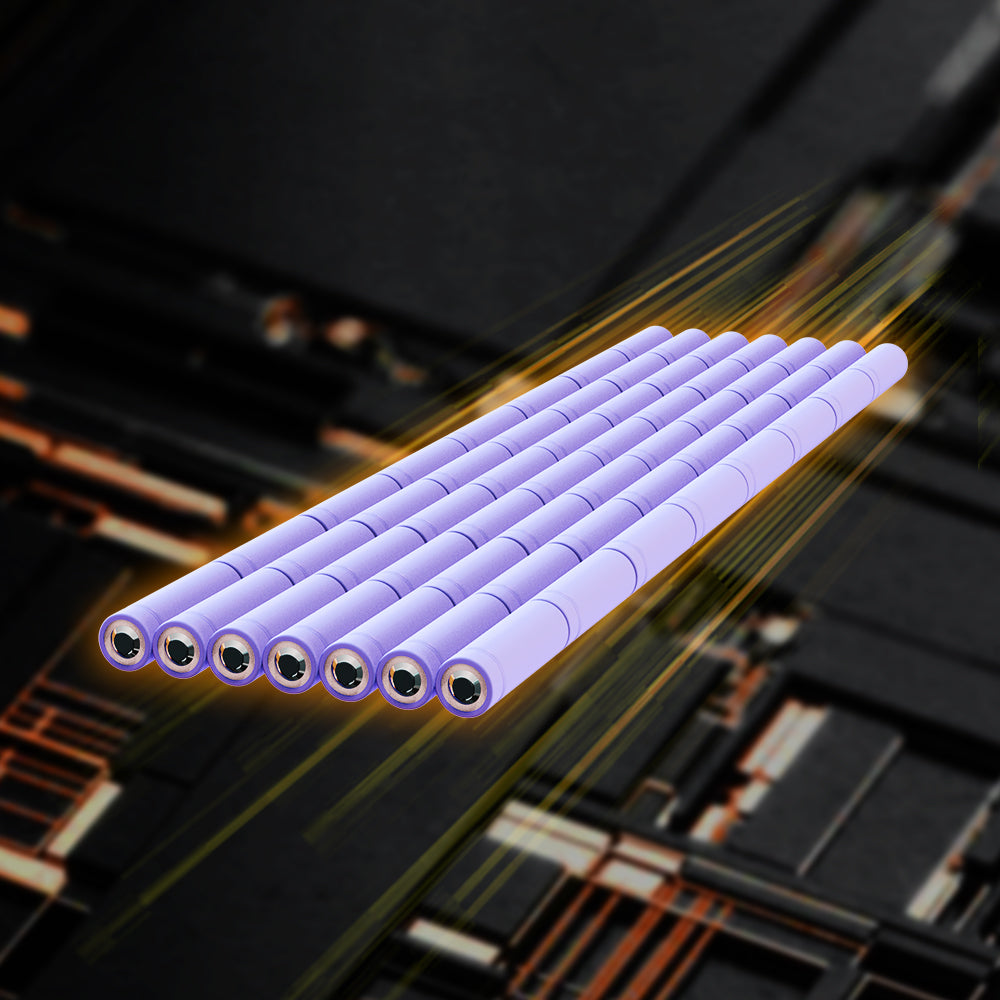

Extended Range
Advanced 21700 battery cell in 14s configuration.
58.8v output, 17% less heat dissipation.
Eskate Eye Candy
Get ready to be wowed by our handcrafted carbon fiber deck, boasting mesmerizing aesthetics and lightweight design. This masterfully crafted deck catches the eye and delivers outstanding strength and durability.

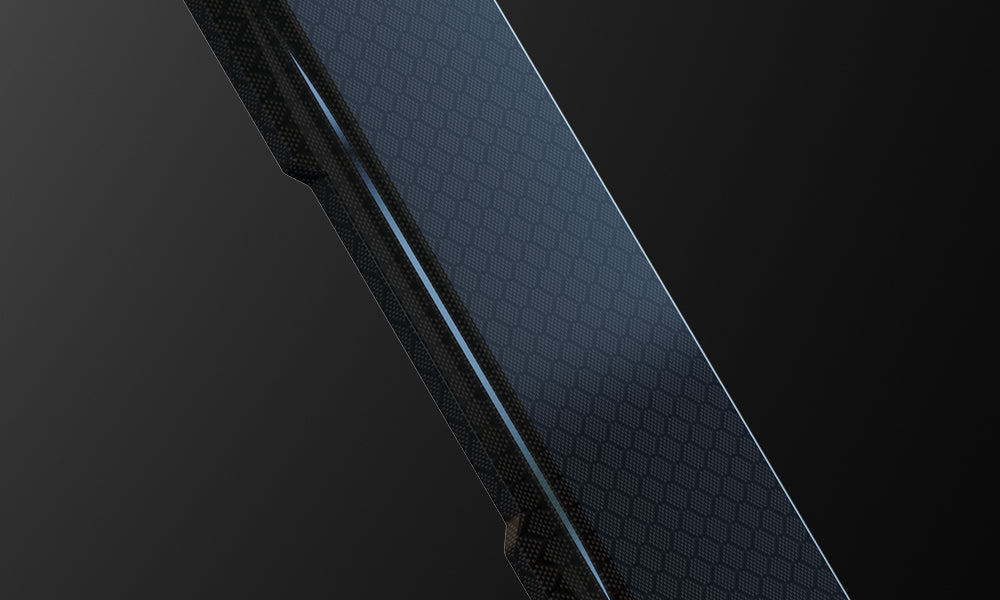

Luxurious Carbon Fiber Deck
Experience the premium quality and captivating feel of a high-end sports car.

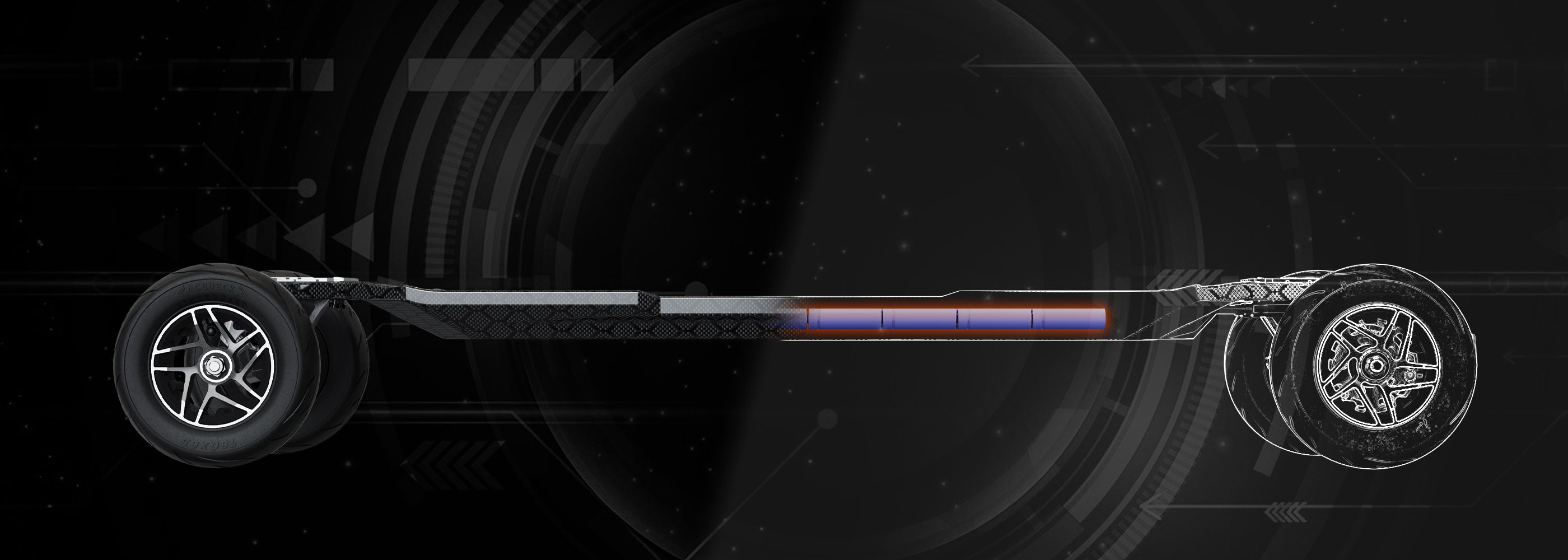

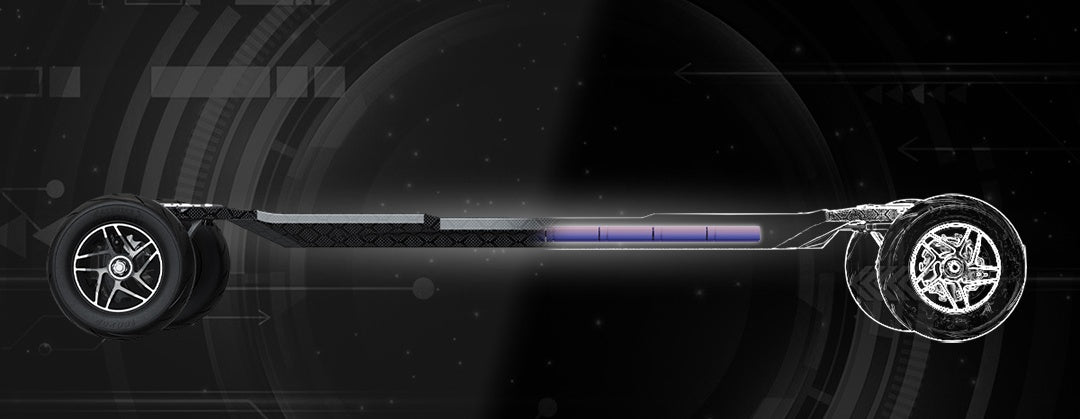

Ultra Large Yet Ultra Thin
This ultra-large battery has the thinner design demanded by experienced riders. This is the first electric skateboard that can accommodate this many single-layer batteries (up to 56 battery cells) in a carbon fiber board design this sleek.

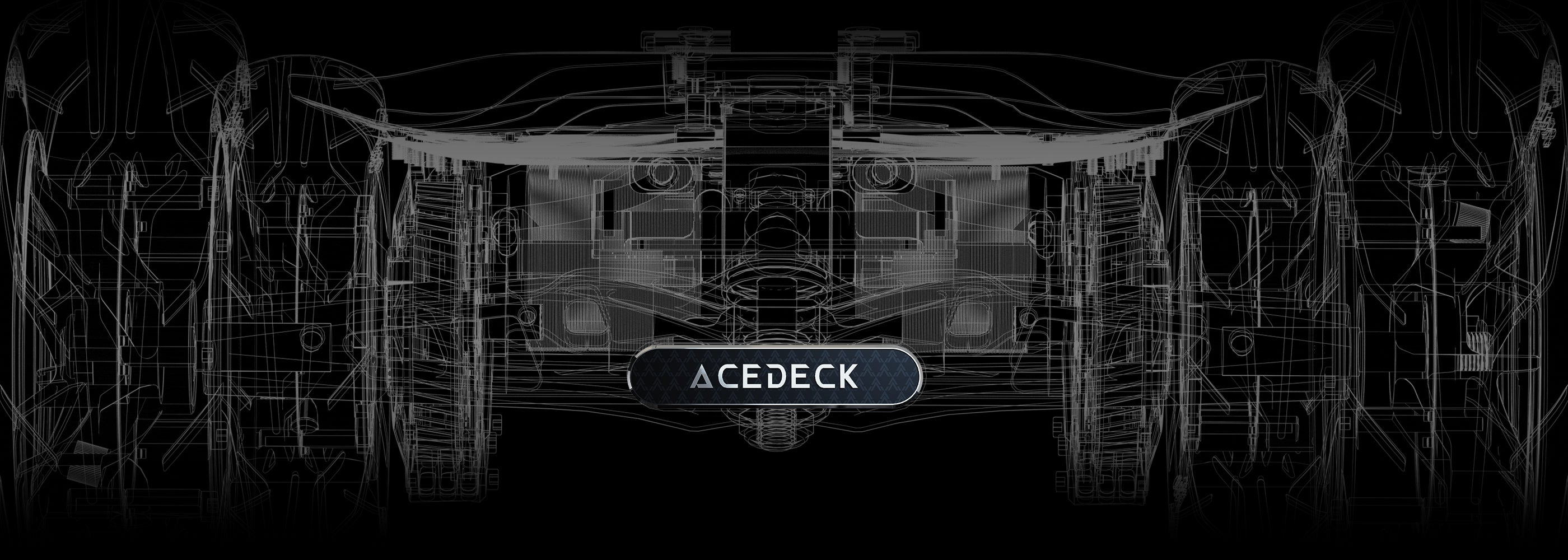

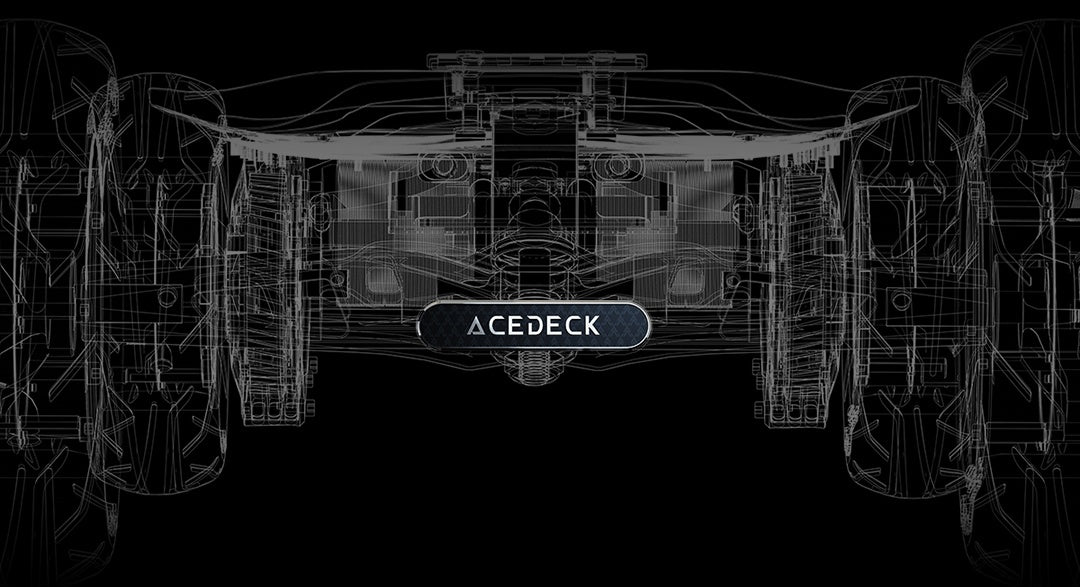

Structural Upgrade
Crafted to fulfil your riding needs, further structural improvements were made in this new generation of Ares X1.

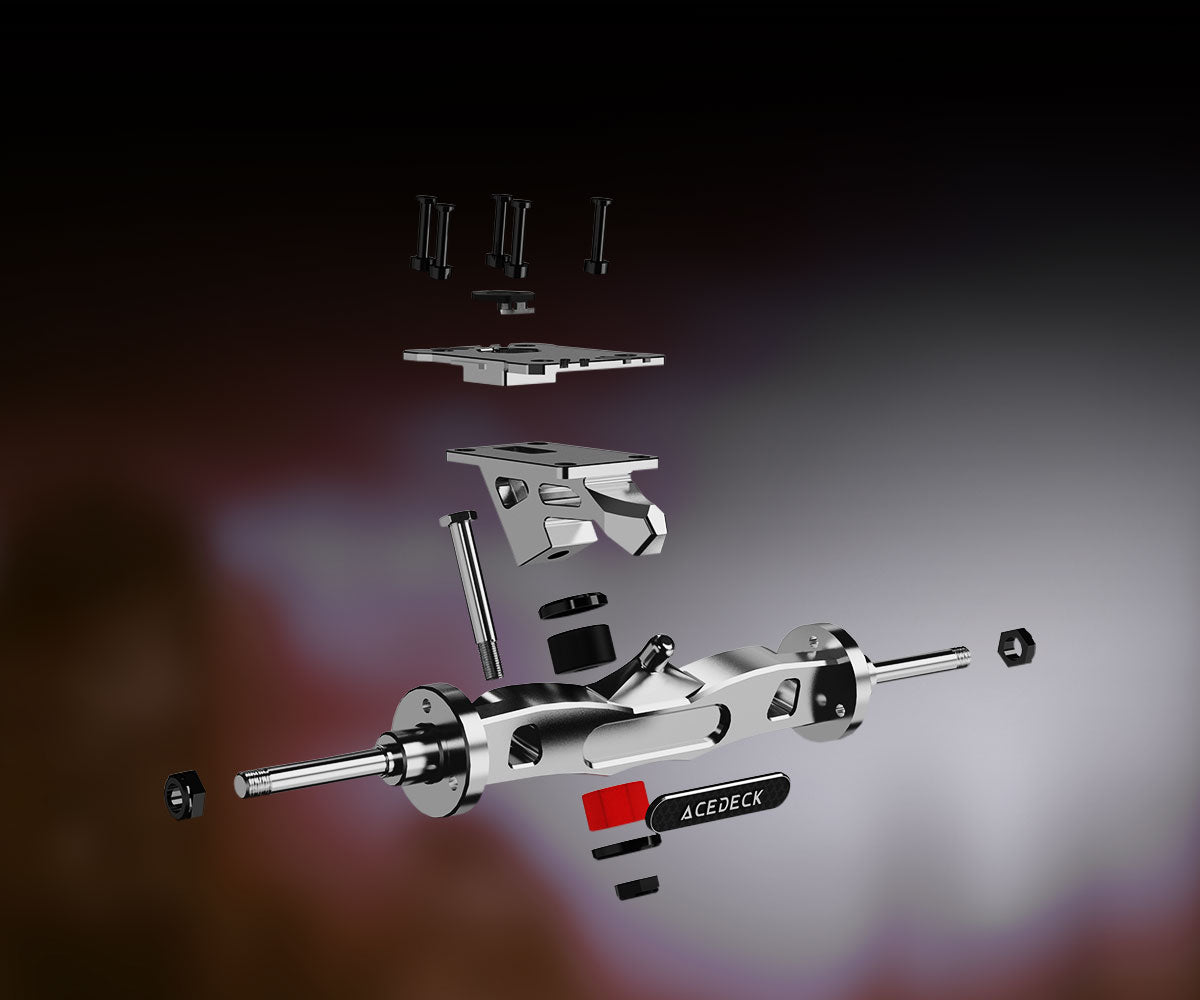

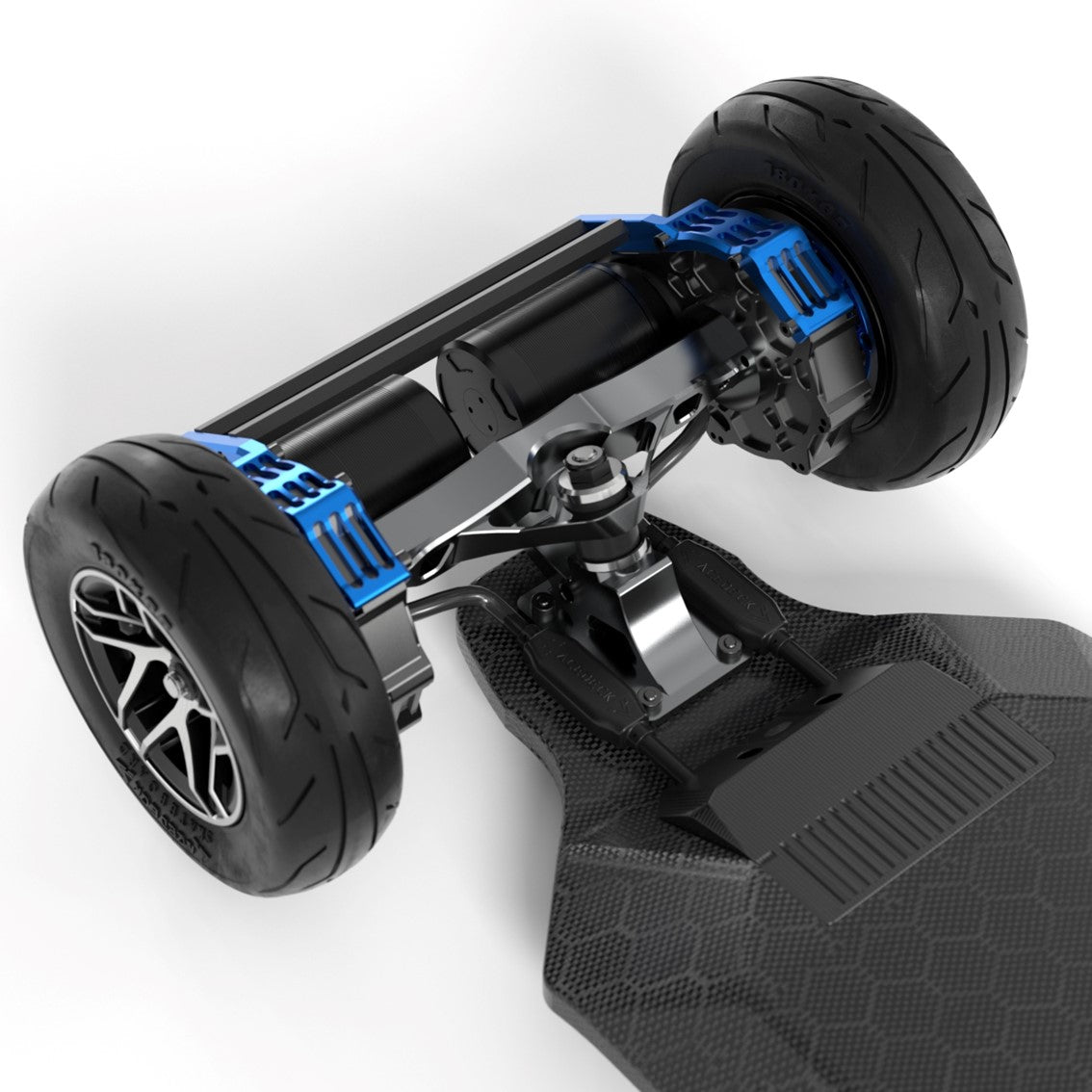

Newly Optimised Trucks
Building upon the success of our exclusive precision TKP trucks, we have raised the bar for 2023. These meticulously crafted marvels combine precision engineering, unmatched stability, and impeccable craftsmanship to deliver an unparalleled riding experience. With enhanced features and advanced technology, our trucks 2.0 take carving and maneuverability to a whole new level.

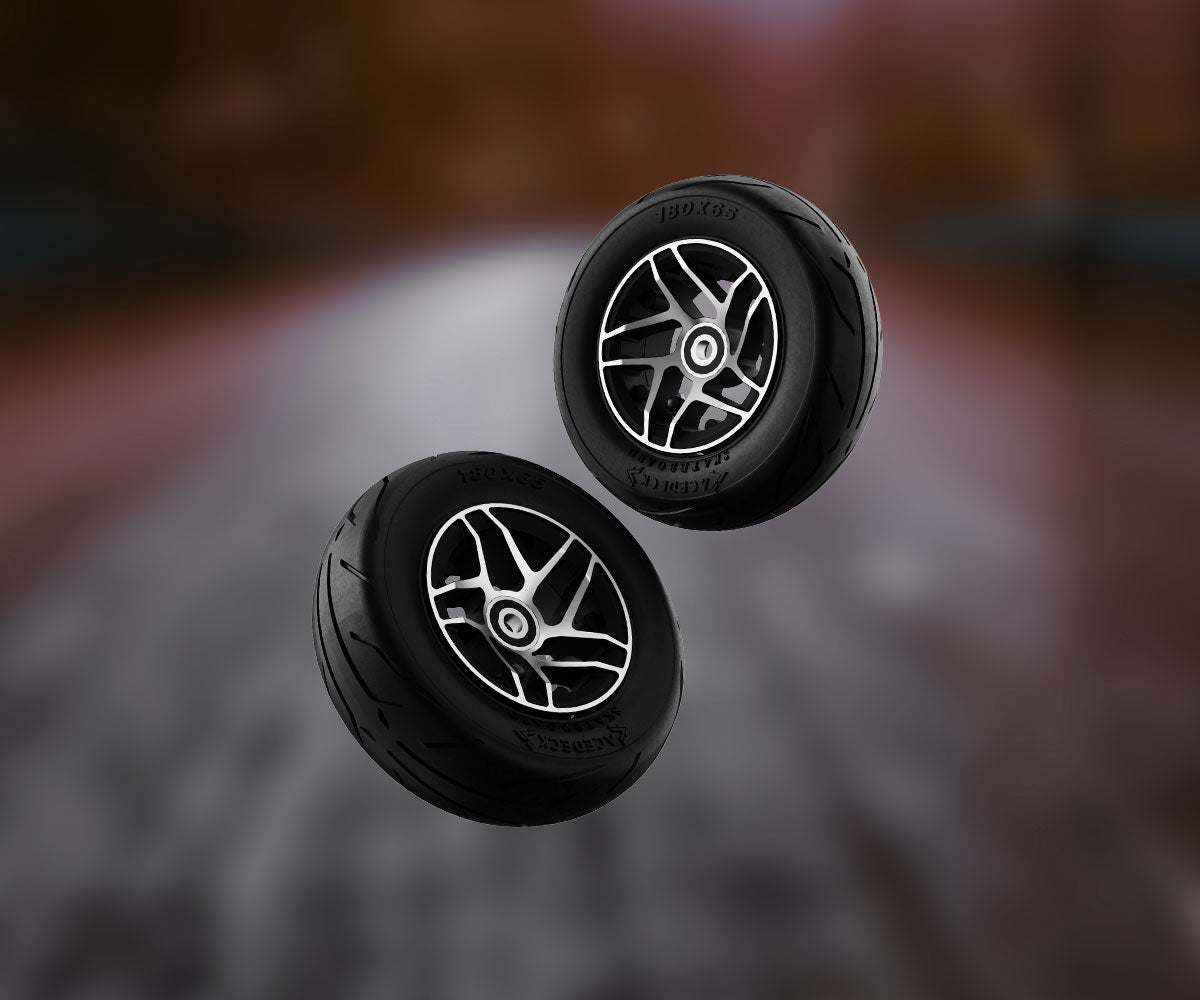

180*65mm Vacuum Tires
Designed exclusively with Hota, our vacuum tire is perfect for any riding condition. With reinforced walls that withstand high pressure and prevent punctures, the tire maintains stability and reduces energy consumption by changing shape according to the pressure applied, making it a durable and reliable option.

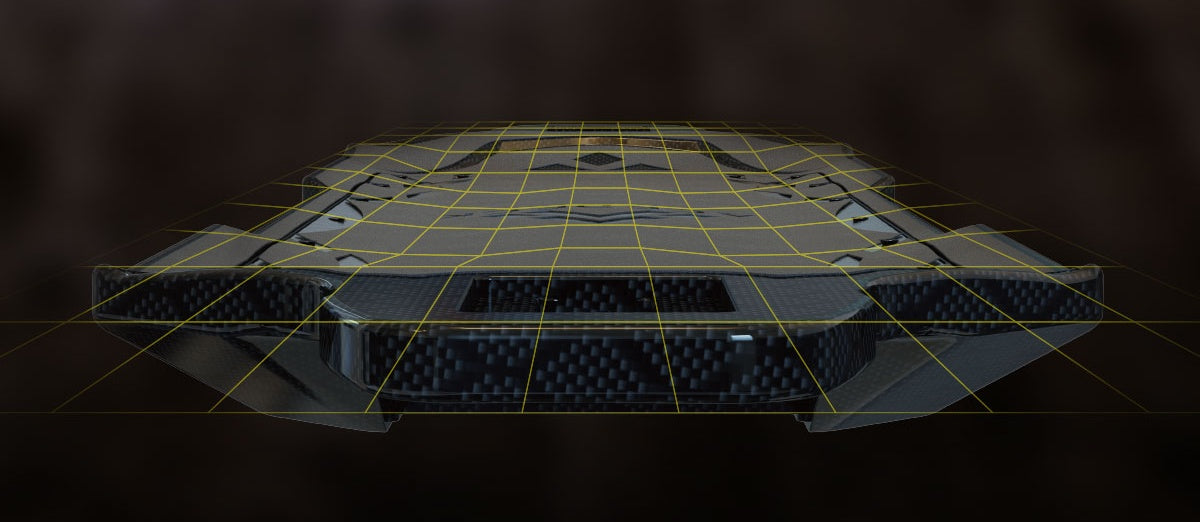

Endurance Meets Ergonomics
By integrating ergonomic principles and embracing the natural arch of your foot, we've further improved the concave design of Ares X1 to offer you more control and comfort that keeps you going for hours without fatigue. Discover a whole new level of ergonomic excellence and indulge in limitless adventures.
Impeccable attention to detail sets Acedeck apart from the rest.

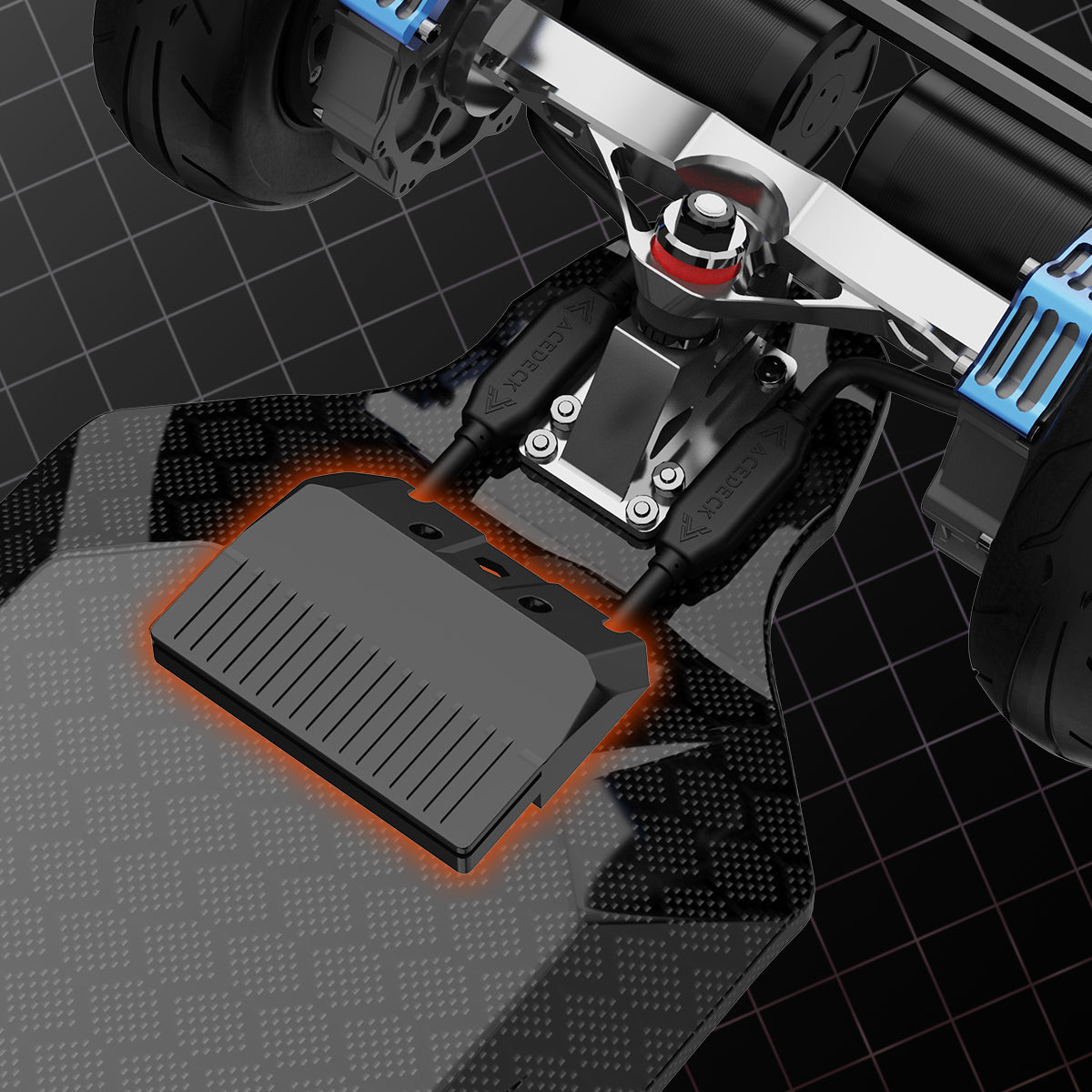

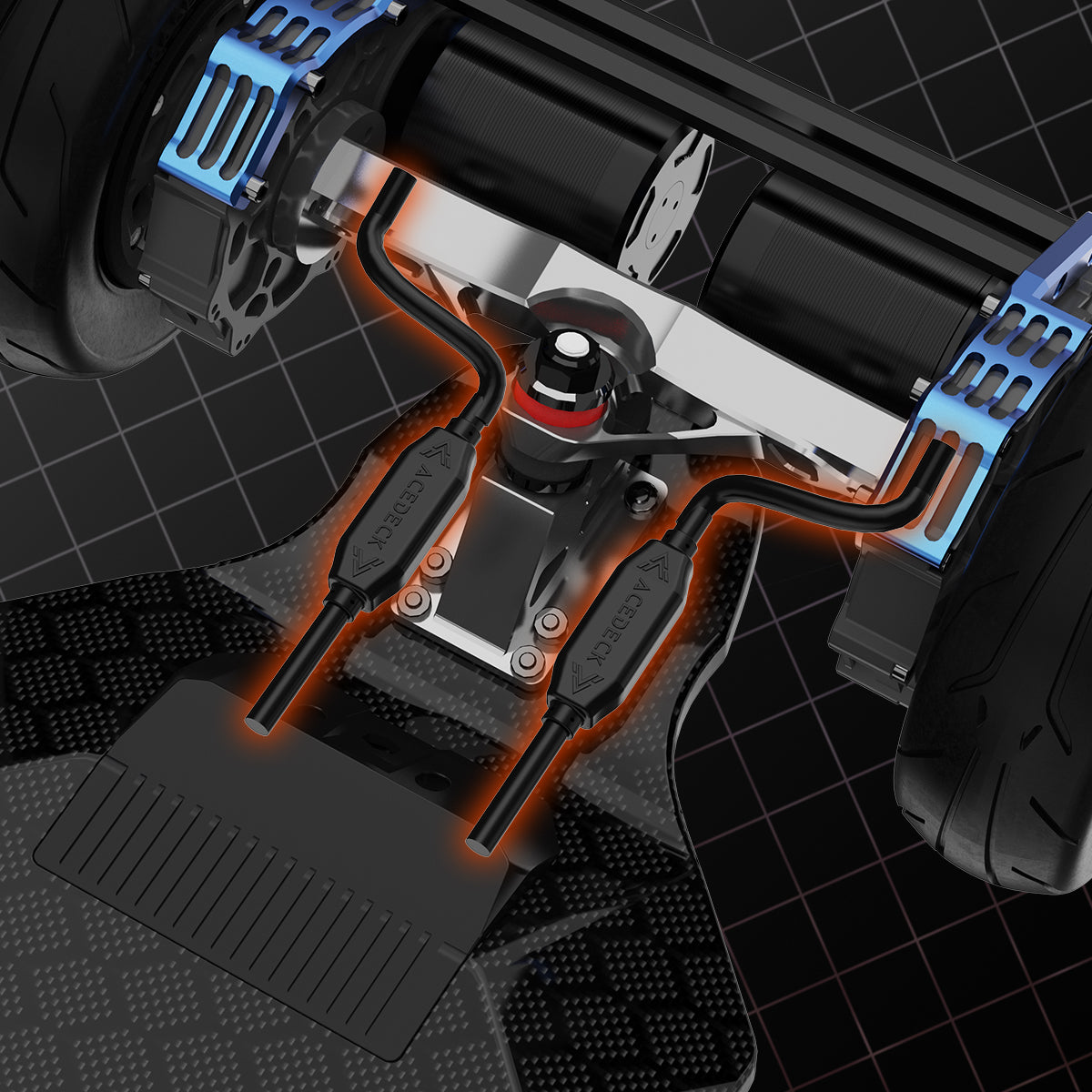

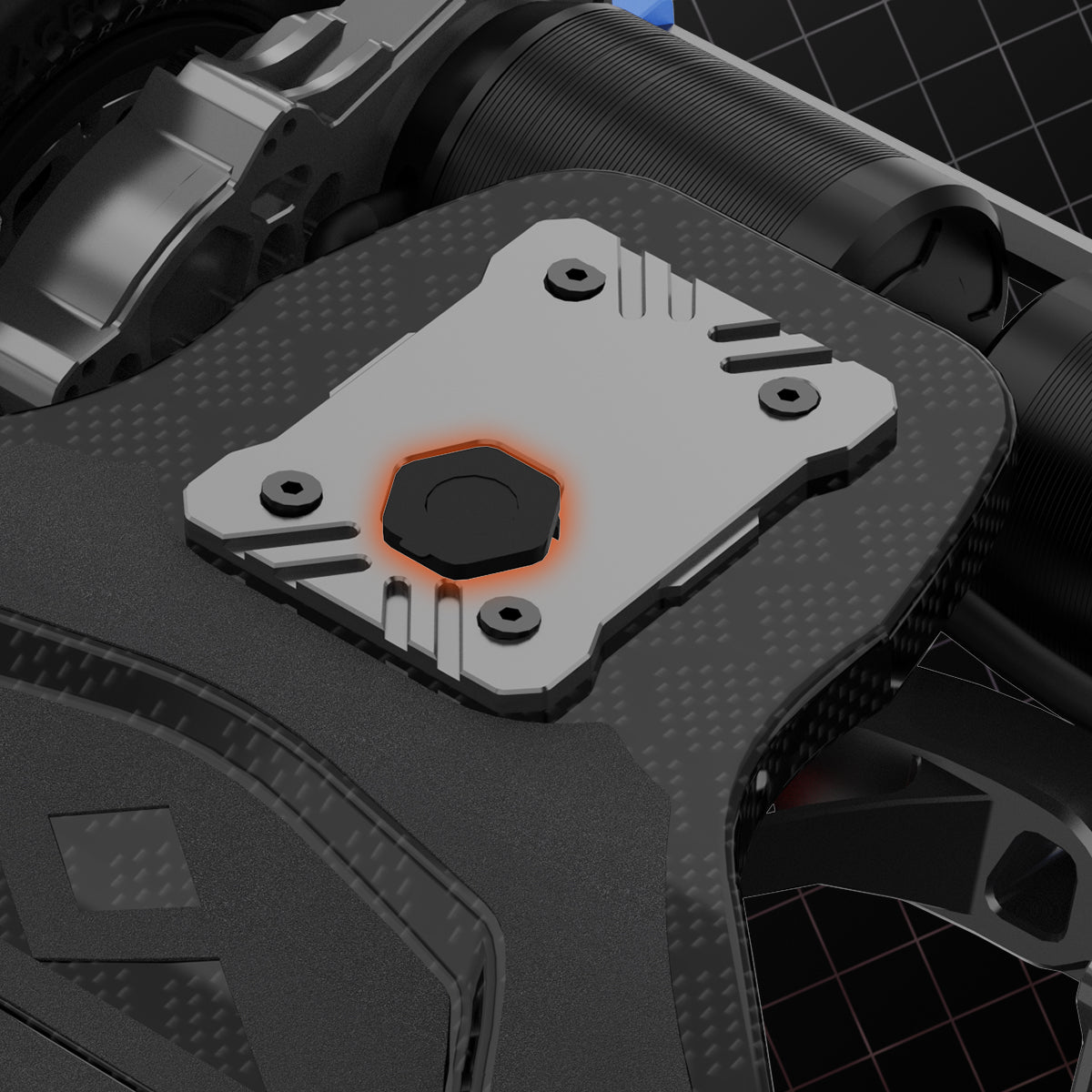

New Ares X1 redefine convenience with a charging port positioned on the top of the board, making charging a breeze. The upgraded motor plugs guarantee both safety and increased current output, unlocking unparalleled performance and reliability.

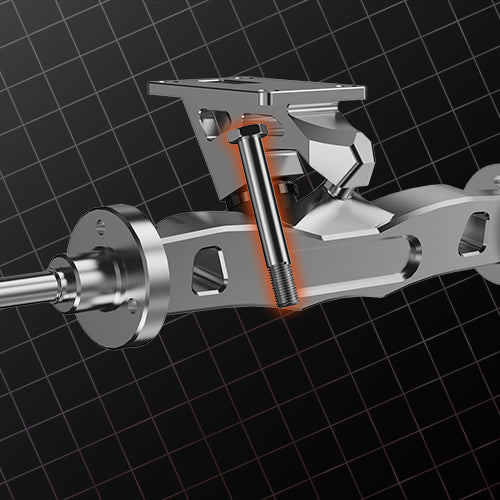

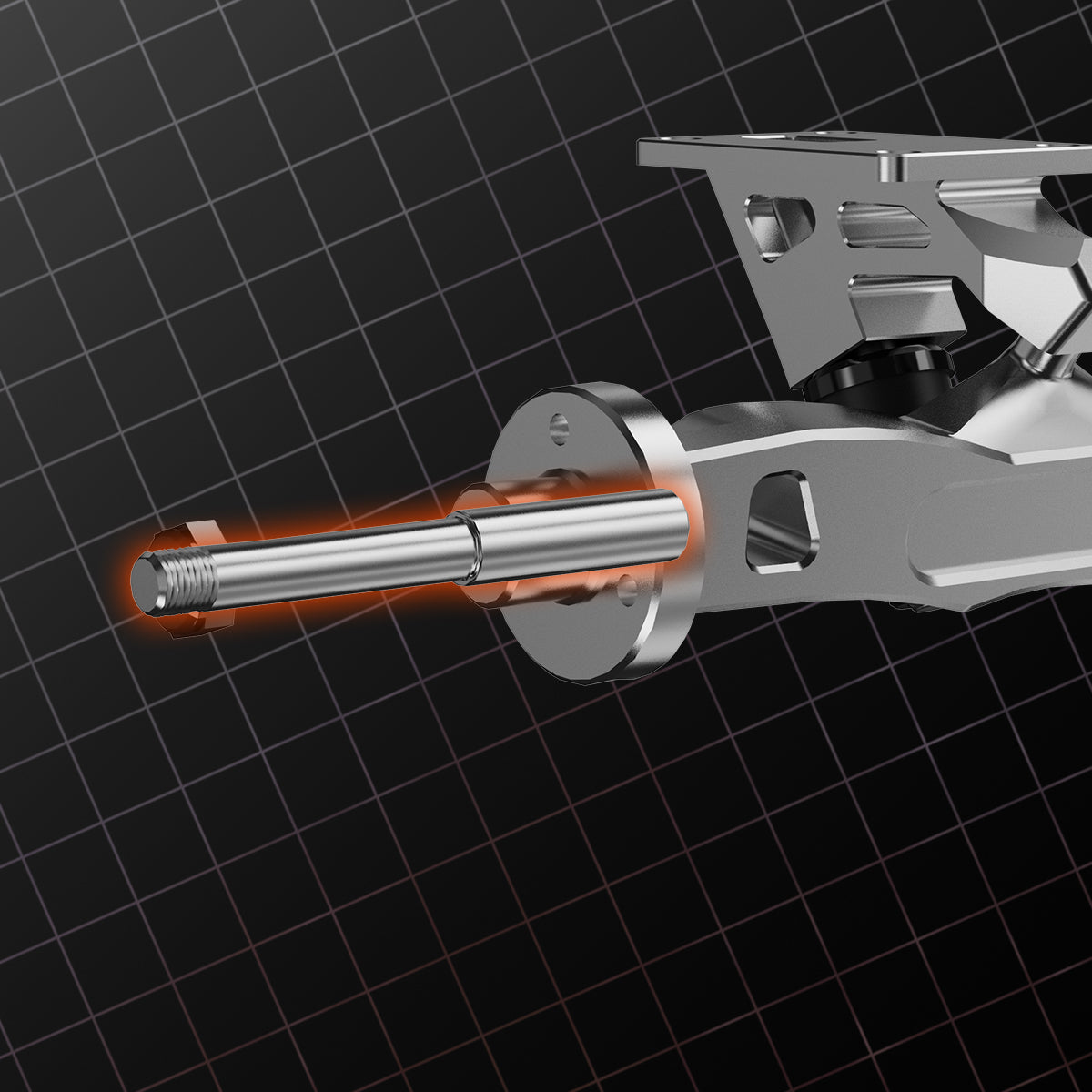

Plus, we've revolutionized our trucks by introducing even tougher stainless steel kingpins and
axles. These components are built to withstand any riding conditions, delivering a ride that
exceeds all expectations.
Technical Specifications
Ares X1 - Gear Drive
Ares X1 - Belt Drive 2WD
Gear Drive
Belt Drive
60kph/37mph (With 200mm wheels)
55kph/34mph (With 180mm wheels)
60kph/37mph
Up to 55km/34miles
Up to 60km/37miles
90A
50A
14S4P Samsung 40T
14S4P Molicel P42A
16Ah/828Wh
16.8Ah/870Wh
6384 150KV
6384 150kv
CNC TKP 2.0
CNC TKP 1.0
Football Pattern
Football Pattern/Forged Pattern
AT 7 inches（180*65mm）Pneumatic wheels
AT 8 inches（200*50mm）Pneumatic wheels
46%
46%
200kg
200kg
4-5h
4-5h
