RS1·16HP Peak Power·18S High-Voltage 240A ESC·12kW Output·High Torque 7290 motors-Peak Power 9000w*2·Z-Quick-Release Battery System™·Hyper-Link™ Truck·New Gear Drive System·King of Control·RS1·16HP Peak Power·18S High-Voltage 240A ESC·12kW Output·High Torque 7290 motors-Peak Power 9000w*2·Z-Quick-Release Battery System™·Hyper-Link™ Truck·New Gear Drive System·King of Control
— RS1 Positioning
Track performance, Road soul.
In the world of performance machines, the ones worth remembering are built for a singular purpose—then refined to conquer everything else. The RS1 is our statement. A board that was born on the track and bred for the road.
"This isn't just an electric racing board. It's the one you reach for when you want to feel what it's like to own the road."
12kW
Peak Output
16HP
Horsepower
18S
High-Voltage Platform
100km
Range
16
01 — Power System
16HP At Your Fingertips.
Zero Hesitation.
The RS1 isn't just an electric skateboard; it's a high-performance machine built on a massive 18S high-voltage platform. With 160A bus current and 240A phase current, we've unlocked 12kW of peak power. That's 16 horsepower—more than enough to dominate any incline and leave the competition in the dust.
Experience the V8 of electric carving.
Pro-Level Control, No Compromises. We've rewritten the rules of engagement with our all-new FOC algorithm. For the purists, we've pre-set a Pure Current Control Mode in your remote—PRO riders can easily switch to SPEED MODE to bridge the gap between production boards and DIY beasts. Every millimeter of throttle movement translates into instant, raw torque.
In addition, all ACEDECK models equipped with the 18S ESC feature a built-in reverse mode, which can be activated through the remote’s advanced settings. This makes maneuvering in tight spaces easier and adds extra convenience in everyday riding situations.
Bus Current
160
A
Phase Current
240
A
Voltage Platform
18
S
Peak Power
12
kW
Peak Horsepower
16
HP
FOC Algorithm
NEW GEN
Pure Current Control Mode& Reverse Function Available
VESC Function
02 — Reliability
Engineering Redundancy. Built to Outlast.
Built to take what you throw at it. And then some.
Confidence in every mile. Performance is only as good as the reliability behind it. The RS1 powertrain is designed with an intentional margin of safety—what we call engineering redundancy. Every component is over-specced to ensure that even at the edge of performance, you are nowhere near the edge of the board's capability.
Acedeck® VORTEX™ Motor-Fully in-house developed. Next-Gen High-Torque 7290 Motors. Where peak performance meets endurance. Designed for high-performance electric skateboards, the 7290 motor balances extreme torque with mechanical durability—a powertrain that handles the stress of uphill climbs and rapid acceleration without breaking a sweat.
⬡
N48SH Magnetic Stability
Premium magnets ensure consistent torque and efficiency, even during demanding hill climbs.
⬡
Structural Precision
Six YFS high-strength screws secure the motor housing, eliminating play and ensuring long-term alignment.
⬡
High-Impact Alloy Shaft
A reinforced core designed to absorb road shock and resist torsional fatigue at peak loads.
⬡
Debris-Shielded Cooling
Custom internal ducts channel heat away while preventing sand and grit from entering the motor's vitals.
⬡
16HP Overhead
Engineered to handle massive power loads, providing a wide safety margin for every ride.
Stay fast. Stay cool.

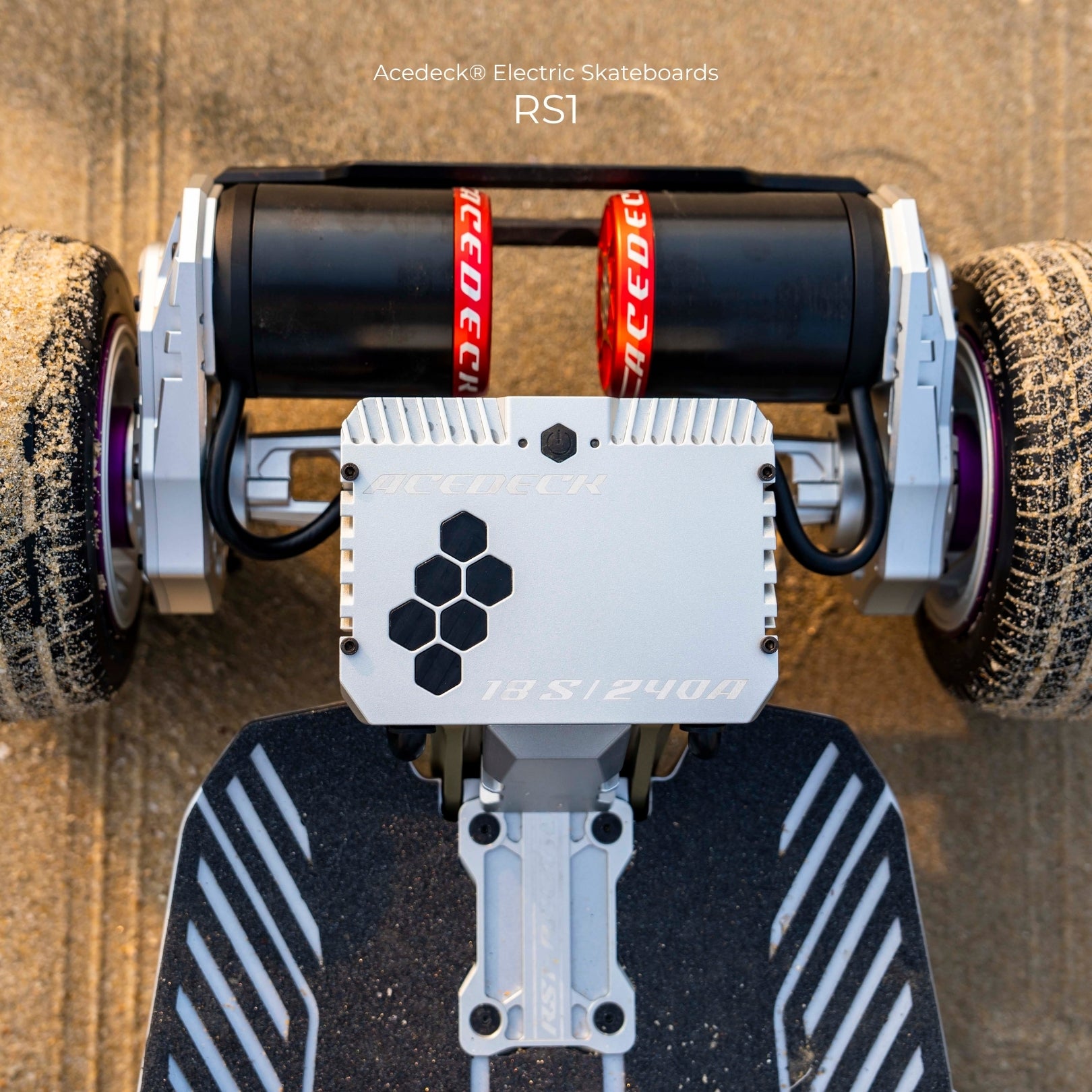

Advanced 18S ESC Thermal Management
The RS1 ESC is engineered to manage heat as effectively as it manages power. By maximizing surface area, we ensure your board delivers consistent speed from the first mile to the last.
Integrated Potting Heatsink
Combines a solid thermal mass with precision-milled fins for rapid heat dissipation.
Sustained Performance
Optimized thermal conductivity means the system maintains high power output longer, significantly reducing the risk of overheating or speed drops.
Reliable Power Delivery
Designed for riders who demand continuous performance during long-distance or high-intensity sessions.
Integrated Potting Heatsink
Combines a solid thermal mass with precision-milled fins for rapid heat dissipation.
Sustained Performance
Optimized thermal conductivity means the system maintains high power output longer, significantly reducing the risk of overheating or speed drops.
Reliable Power Delivery
Designed for riders who demand continuous performance during long-distance or high-intensity sessions.
Introducing

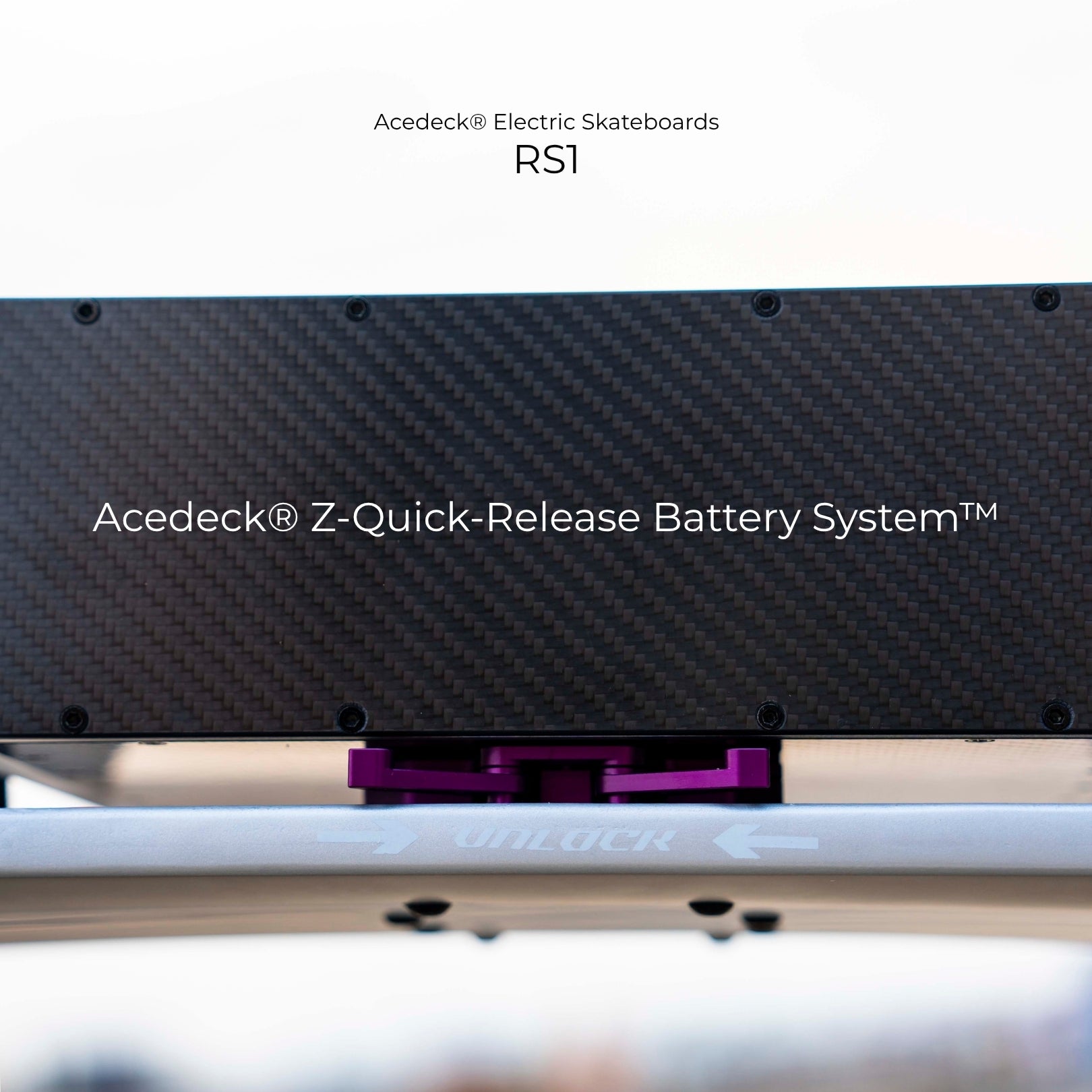

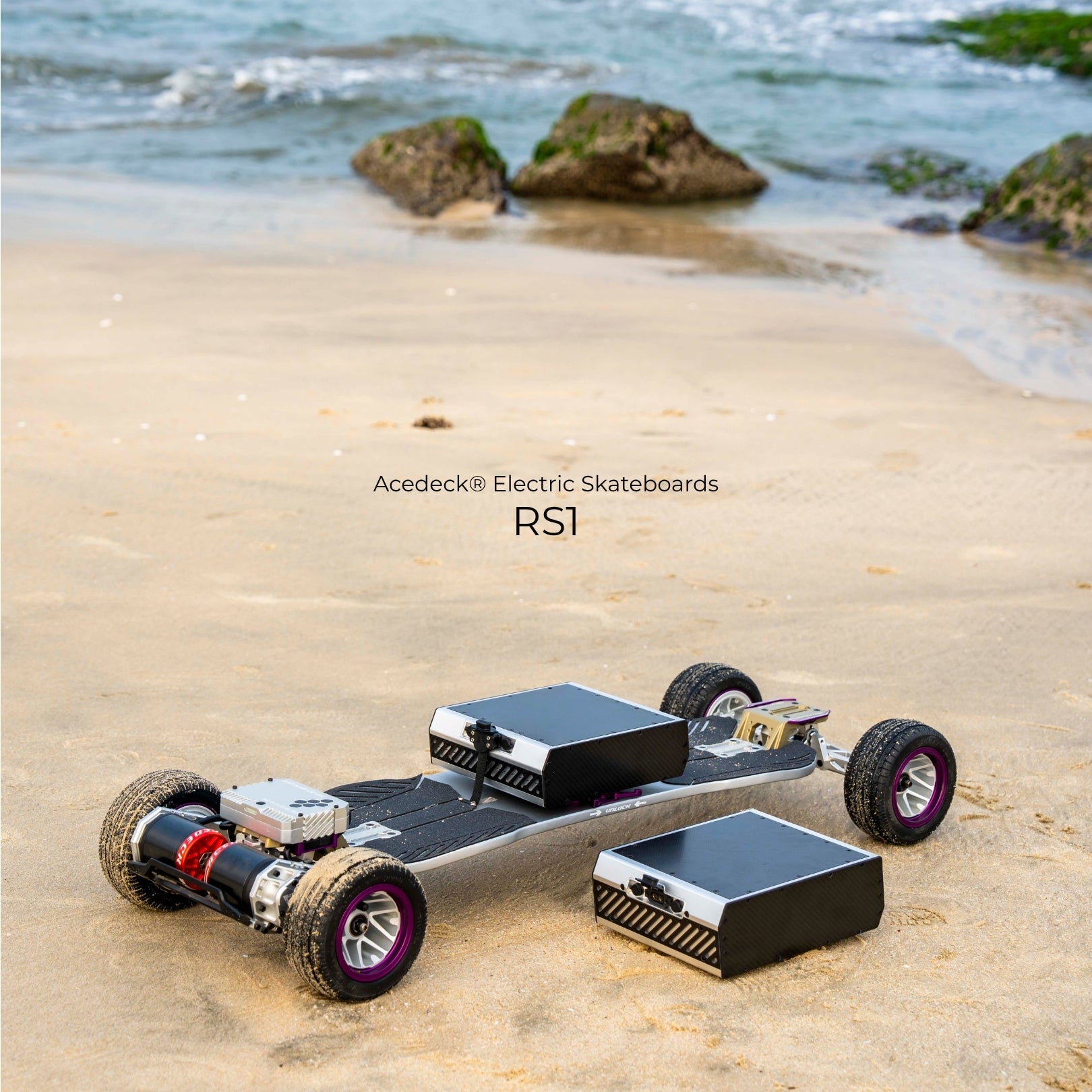

Acedeck® Z-Quick-Release Battery System™
Introducing
Acedeck® Z-Quick-Release Battery System™
03 — Modular Energy
Swap. Don't Stop.
Range anxiety is officially a thing of the past.
30seconds to full power.
We believe the ride should only end when you want it to. The RS1 introduces a modular power philosophy that treats energy like a tool—swappable, scalable, and relentlessly efficient. Forget the wait. We spent 18 months and over a dozen design iterations to perfect a mechanical quick-swap system that feels like a professional pit stop. Built with aerospace-grade 7075 alloy, the latch is as secure as it is fast.
Drag
DUALbattery solutions.
One Board. Two Souls. Choose your range. Choose your performance.Whether you’re planning an all-day cross-country trek or a high-speed track session, the RS1 adapts to your mission. Two distinct battery pack, one seamless interface.
Standard — Included
The Endurance Pack
1665Wh
Up to 100km Range
60kg rider · 20 km/h avg · 18S 5P Samsung 50S
① Go further. Way further.
② 1665Wh of Samsung 50S cells in an 18S5P configuration.
③ 70+ km Real-World Range. Tested with a 70kg rider at a sustained 35km/h.
② 899Wh of Molicel P45B cells in an 18S3P configuration.
③ Weight-Optimized. Designed for agility, high-discharge bursts, and rapid laps.
④ When every gram matters and every second counts.
◈
Pit-Stop Speed
Change your battery in seconds. No tools, no struggle. You'll be back on the road before your coffee gets cold.
◈
High-Current Architecture
Custom heavy-duty terminals handle massive 18S current flow without heat buildup or performance degradation.
◈
Safety-First BMS
Intelligent BMS keeps connectors "cold" until fully seated, eliminating sparks and short-circuit risks completely.
The RS1 eliminates the "charging wall." By decoupling the energy source from the board, we've given you the freedom to ride indefinitely.
Swap, don't stop.
Fast-Charging System
Designed for Track Rhythm. Less waiting. More laps.
75.6V|7.5A
567W
RS1
includes a 75.6V / 7.5A / 567W high-power charger
Dual charging ports
reserved for rapid energy replenishment during race sessions
20A
Battery protection system
supports up to 20A charging current
04 — Ride Dynamics
Ride as One.
Ultra-responsive handling and composed stability for a seamless connection with every carve.

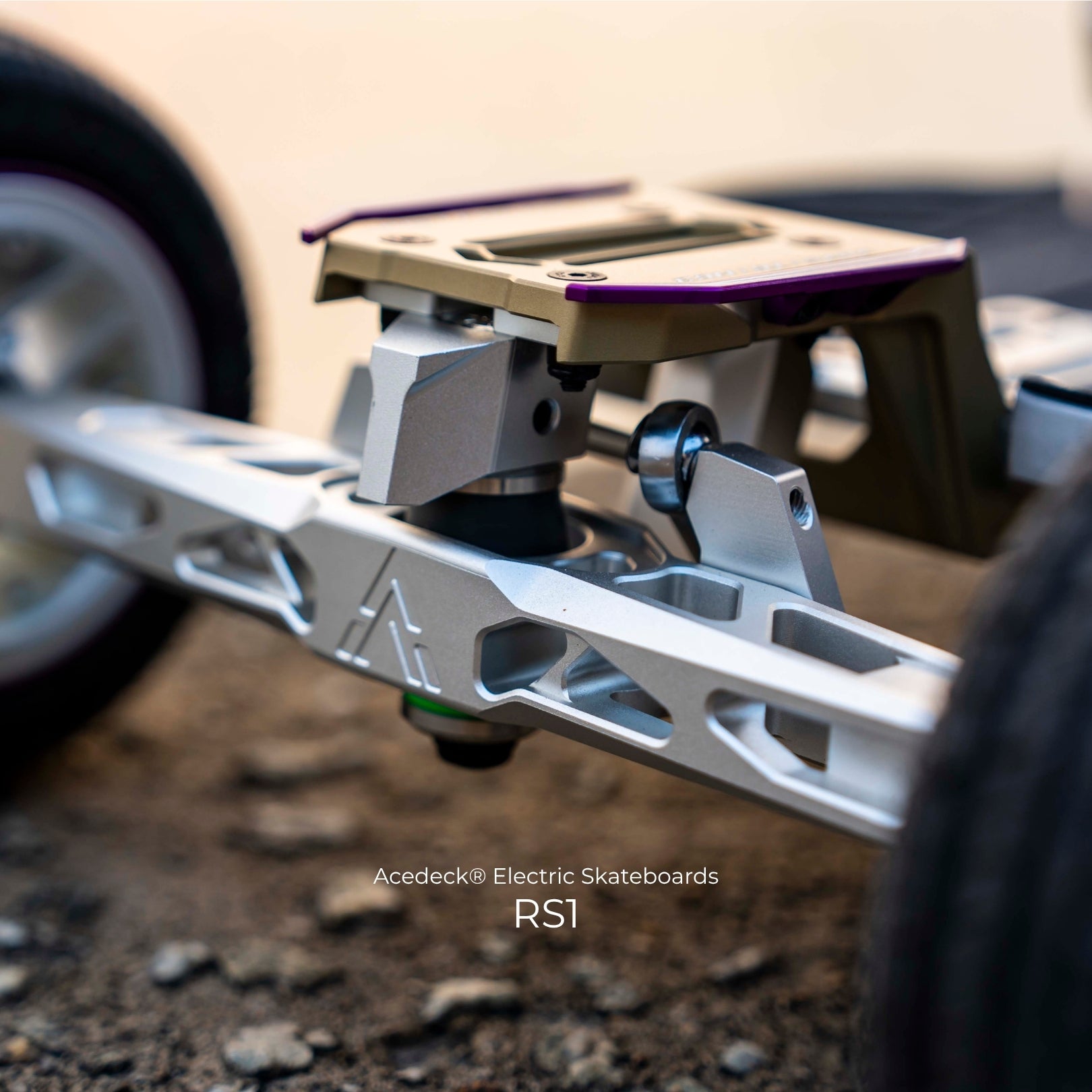

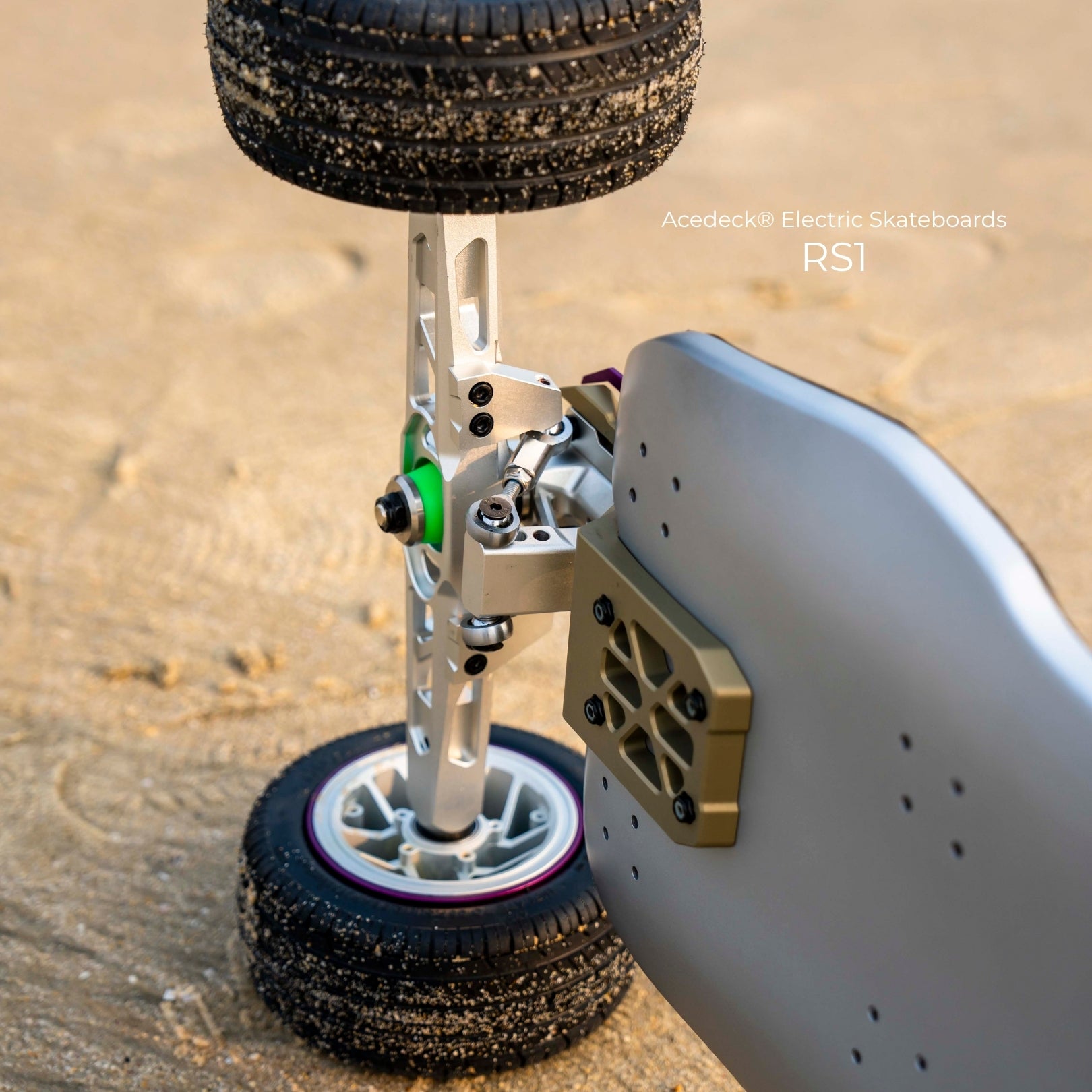

Acedeck® Hyper-Link™ Truck
No slop. No wobble. Just razor-sharp control.
What is Acedeck® Hyper-Link™ Truck? A multi-link system to ensure precise steering accuracy, allowing for more accurate control during each turn.
The result:
— Effective suppression of high-speed speed wobble
— Predictable and controllable behavior during emergency lane changes
— The confidence to push deeper into the limit
After 12+ months of validation and repeated testing, our engineers finalized the Acedeck® Hyper-Link™ Truck—a racing chassis philosophy, not just a component.
50°
Front Truck
Maximizes steering agility and carve response at lower speeds
30°
Rear Truck
High-speed stability — suppresses death wobble at full sprint
Asymmetric geometry: front handles agility, rear handles stability. Together, they eradicate speed wobble.
Cold-forged 6061 aluminum, extensively CNC-machined to reduce weight without compromising strength
Axles & kingpins
Forged alloy steel, precision-turned and ground to ensure accuracy
Patented vertical bushing structure
- Provides stable support with optimal flexibility
- Easy bushing replacement
- Compatible only with tall-style bushings (Riptide Tall Barrel specification)
Rod-end bearings
High-hardness chromoly steel with anti-corrosion treatment, eliminating play and looseness
Fixed link lengths
- Front and rear geometry locked using dedicated jigs
- User adjustment not recommended
- Standard replacement links available from Acedeck (three lengths, three mounting positions)
Custom fasteners
- Taiwan FangSheng custom screws
- Installed to 16 Nm torque
- Secured with Loctite 243
- Removal requires heating to approximately 200°C
RS1 Deck design
Stay Low. Stay Locked In.
Lower center of gravity. Higher confidence. The RS1 redefines board control by dropping the deck to a remarkable 92mm off the ground and using a CNC-machined 7075-T6 aluminum drop-down chassis. By aligning the deck with the truck mounting line and incorporating a wider, aggressive concave deck, it creates a true rider cockpit that locks your feet in. Whether you are carving at high speeds or braking hard, the RS1 eliminates twitchiness, delivering a planted, ultra-stable ride that gives you the confidence to lean deeper into every turn.
Pre-drilled bingding holes
The Drop-Down Chassis
The drop-down chassis is fully CNC-machined from a single block of 7075-T6 aluminum, combining exceptional rigidity with functional durability.
Wide Deck
The expansive deck offers ample space to lock in your most natural, high-control stance.

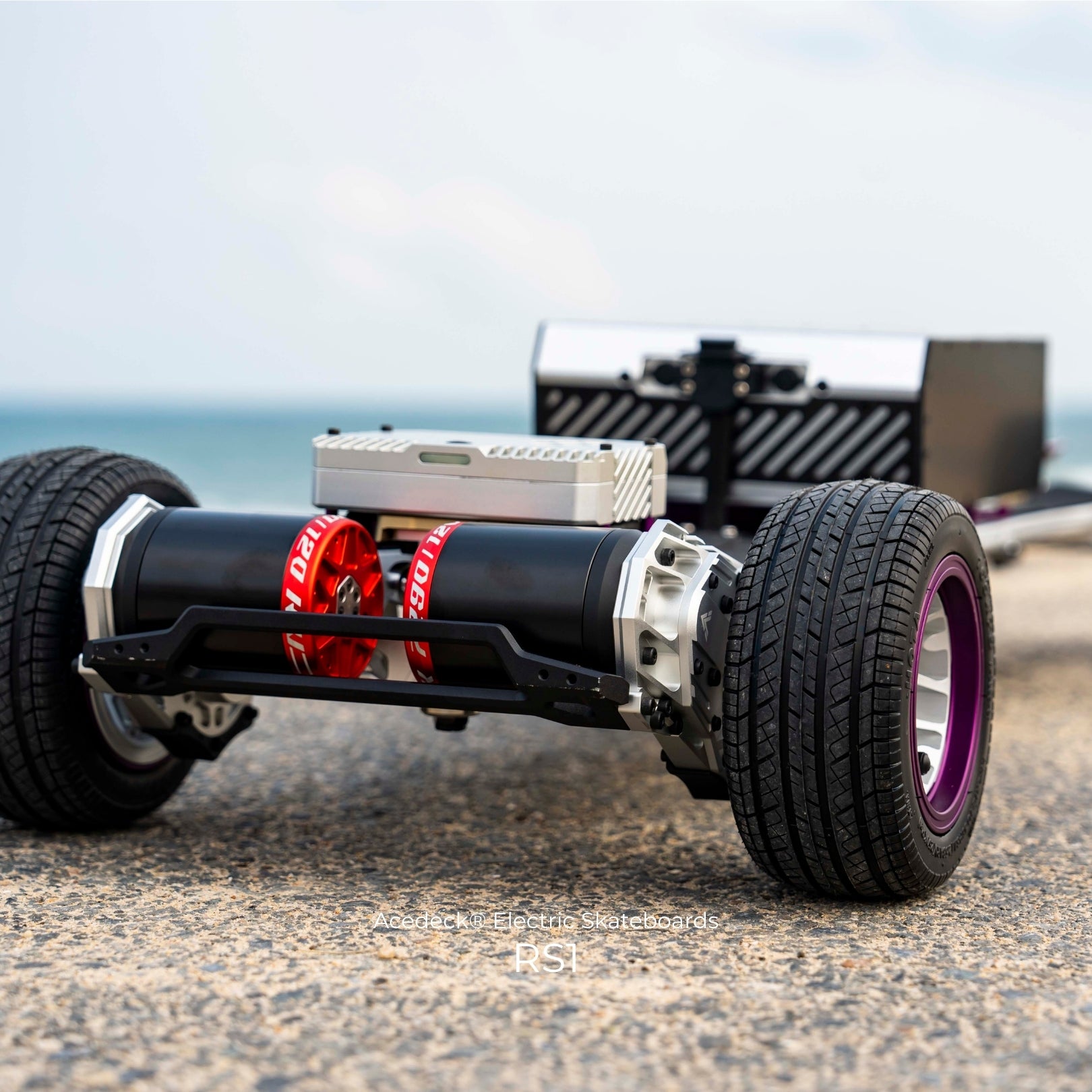

05 — The New Geardrive System-ECHELON CNC Gear Drive
Instant Throttle. Zero Lag.
Power doesn’t wait. Neither do you. The RS1’s helical gear drive delivers millisecond-level response, slamming torque directly to the ground the instant you touch the throttle or brake. Engineered from high-strength Japanese powder metallurgy with a dual-idler design, this heavy-duty architecture handles peak torque spikes with zero efficiency loss. Plus, with a configurable gear ratio (3.7–4.3), it instantly adapts from 125mm to 200mm wheels—delivering smoother, stronger, and more immediate power in any environment.
3.7–4.3
Configurable Gear Ratio
Instantly adjust powertrain geometry to fine-tune power delivery profiles.
125-200mm
Wheel Adaptability
Seamless compatibility from sleek street setups to rugged all-terrain setups.

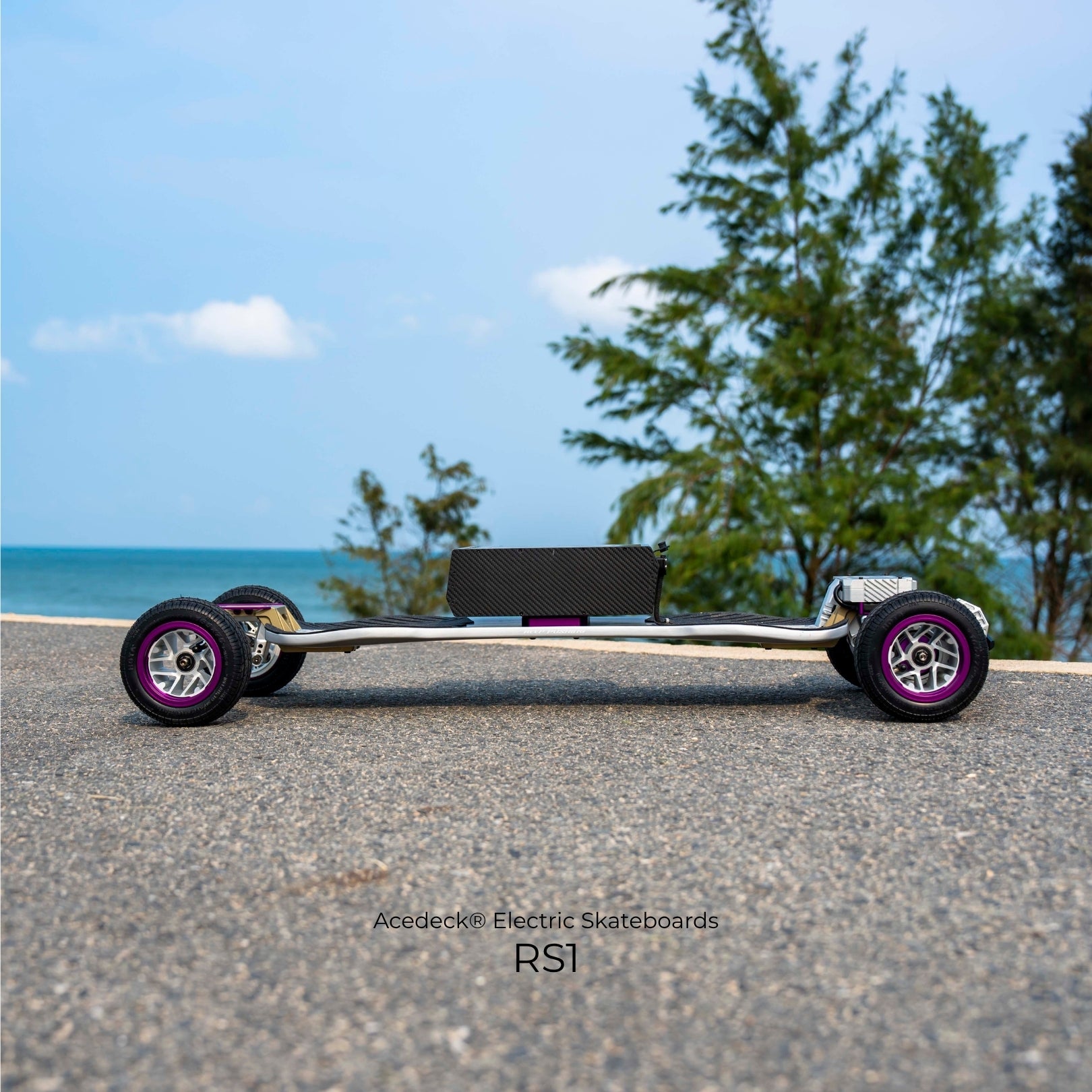

Acedeck® RS1
King ofControl.
In the world of performance machines, some are called the king of the road. They combine power, precision, and confidence in a way that makes every ride effortless. That's exactly what we built here.
This isn’t just an electric longboard. It’s the one you reach for when you want to feel what it’s like to own the road.
16
Horsepower
30s
Battery Swap
100
km Range
75kph/47mph
Top Speed

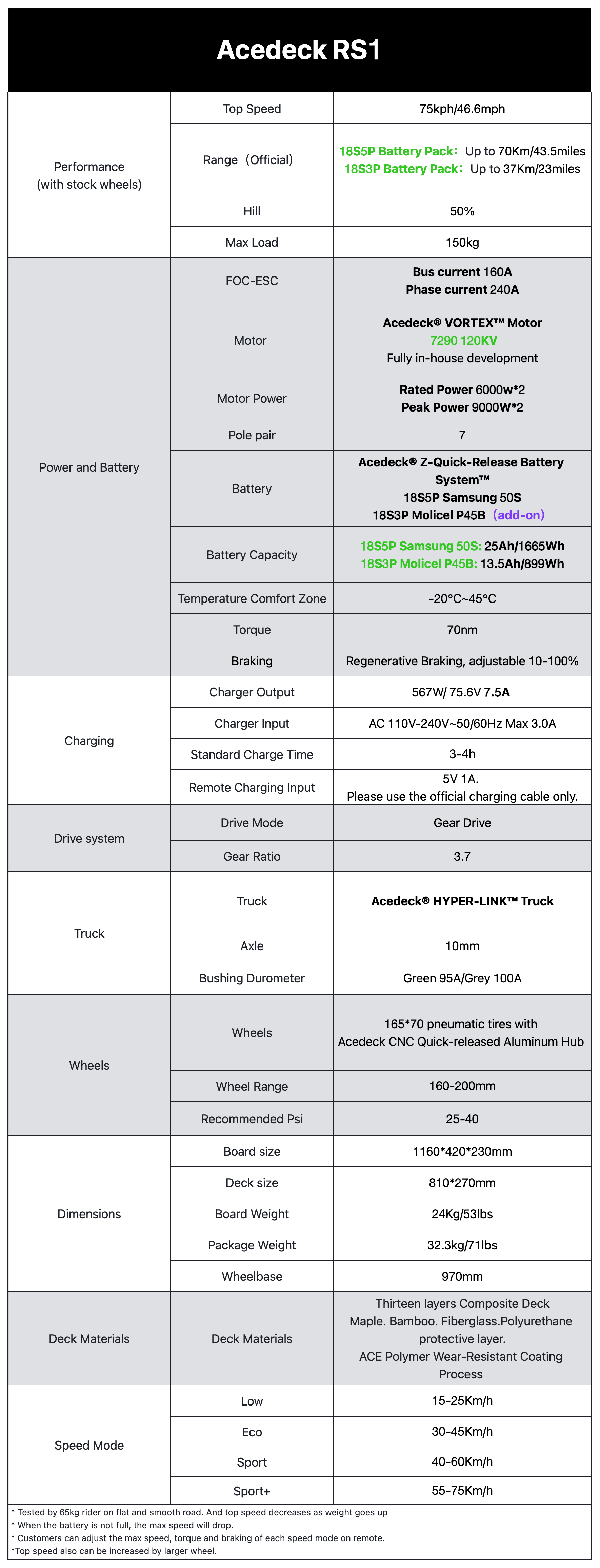

Full Specs
What's in the Box?
Complete Board *1
165*75mm tires*4 +Acedeck Quick-Release hubs
The new upgraded Remote Control (Black-purple) with USB Charging Cable *1
Spare gear drive adapter*2
75.6V 7.5A Charger*1
Quick Start Guide *1
Acedeck Stickers *n
T-Tool *1, L-Tool *1
Hexagon Wrench Tool (2.5mm & 3mm&4mm) *1
Screws *n
Complete Board *1
165*75mm tires*4 +Acedeck Quick-Release hubs
The new upgraded Remote Control (Black-purple) with USB Charging Cable *1
Spare gear drive adapter*2
75.6V 7.5A Charger*1
Quick Start Guide *1
Acedeck Stickers *n
T-Tool *1, L-Tool *1
Hexagon Wrench Tool (2.5mm & 3mm&4mm) *1
Screws *n

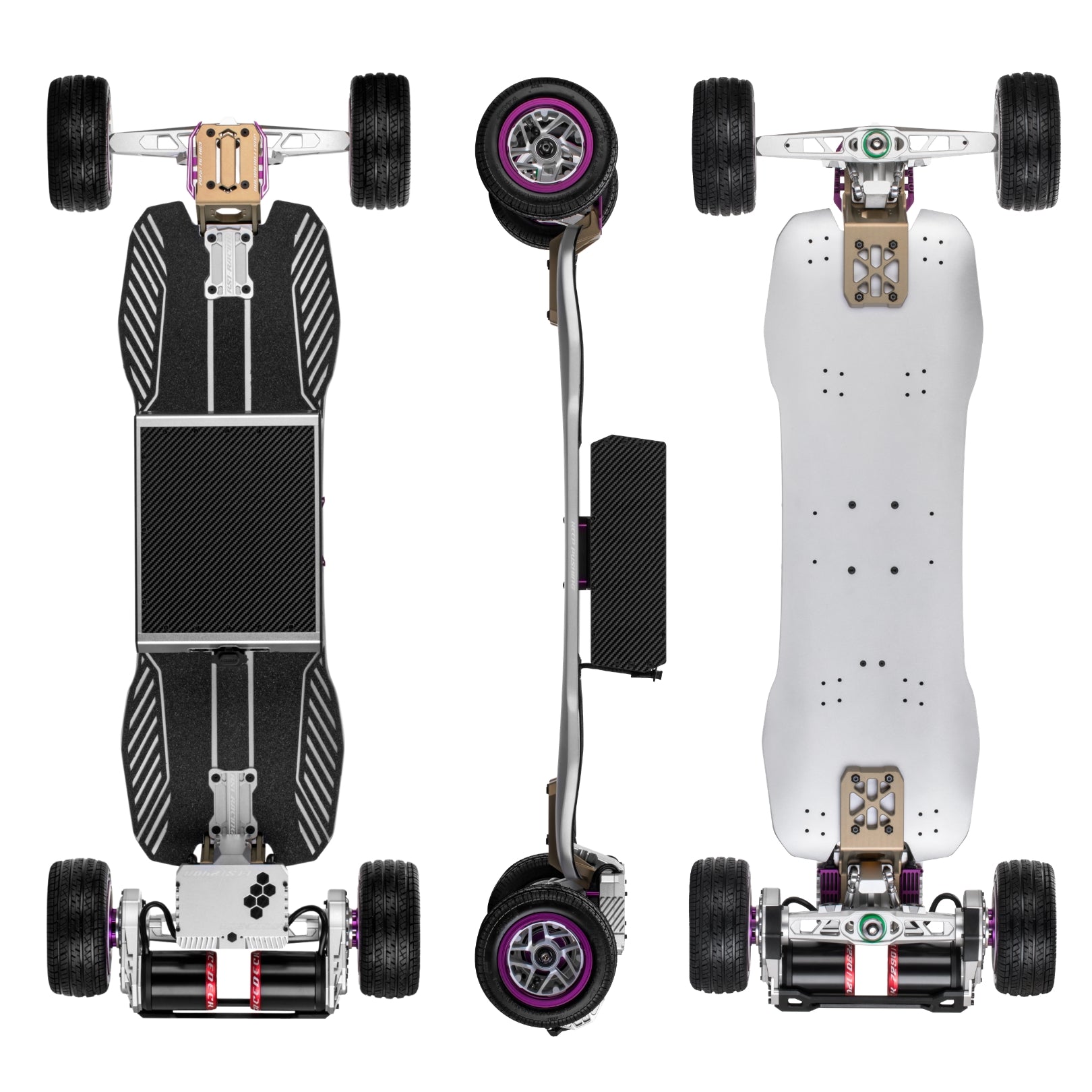

Acedeck® RS1 Electric Skateboard
Geardrive Components Lifetime Guarantee
Ride with confidence — we’ve got you covered for life.
Fast shipping
Sale price :
Sale price$2,499.00 USDRegular price$3,999.00 USD(/)
Engineered for the track. Mastered for the road. This isn't just an electric longboard. It's the one you reach for when you want to feel what it's like to own the road.
Product Focus:
01 / SWAPPABLE BATTERY & RANGE
18S High-Voltage Platform: Engineered for sustained, sag-free maximum power output.
Z-Quick-Release Battery System™: Swap in 30 seconds. A professional pit-stop experience for continuous back-to-back sessions.
Dual Battery Configurations: 18S5P (Samsung 50S | 1665Wh): Cruising up to 100 km. Built for the weekend adventurers and all-day exploration. 18S3P (Molicel P45B | 899Wh): Weight-optimized for 55 km of raw agility, maximum discharge bursts, and rapid hot laps.
567W Dual Fast-Charging: 75.6V / 7.5A system with dual charging ports. Double the efficiency, half the wait.
Precision-tuned geometry delivers exceptional high-speed stability and confident cornering.
No slop. No wobble. Just razor-sharp control. A multi-link system to ensure precise steering accuracy, allowing for more accurate control during each turn.
【First-Ever Fully In-House Developed】Acedeck® VORTEX™ Motor-7290 All-new in-house motor provides instant torque and sustained high-output performance.
Customized 18S Advanced ESC Platform-240A ACEDECK’s 18S system enables smoother power delivery and superior high-speed control.
04 / DECK
Extended stance, deepened foot wells, and pre-drilled holes for foot straps.
Pre-Drilled Binding Holes
Premium Finish: Automotive-grade metallic silver coating with high scratch resistance.

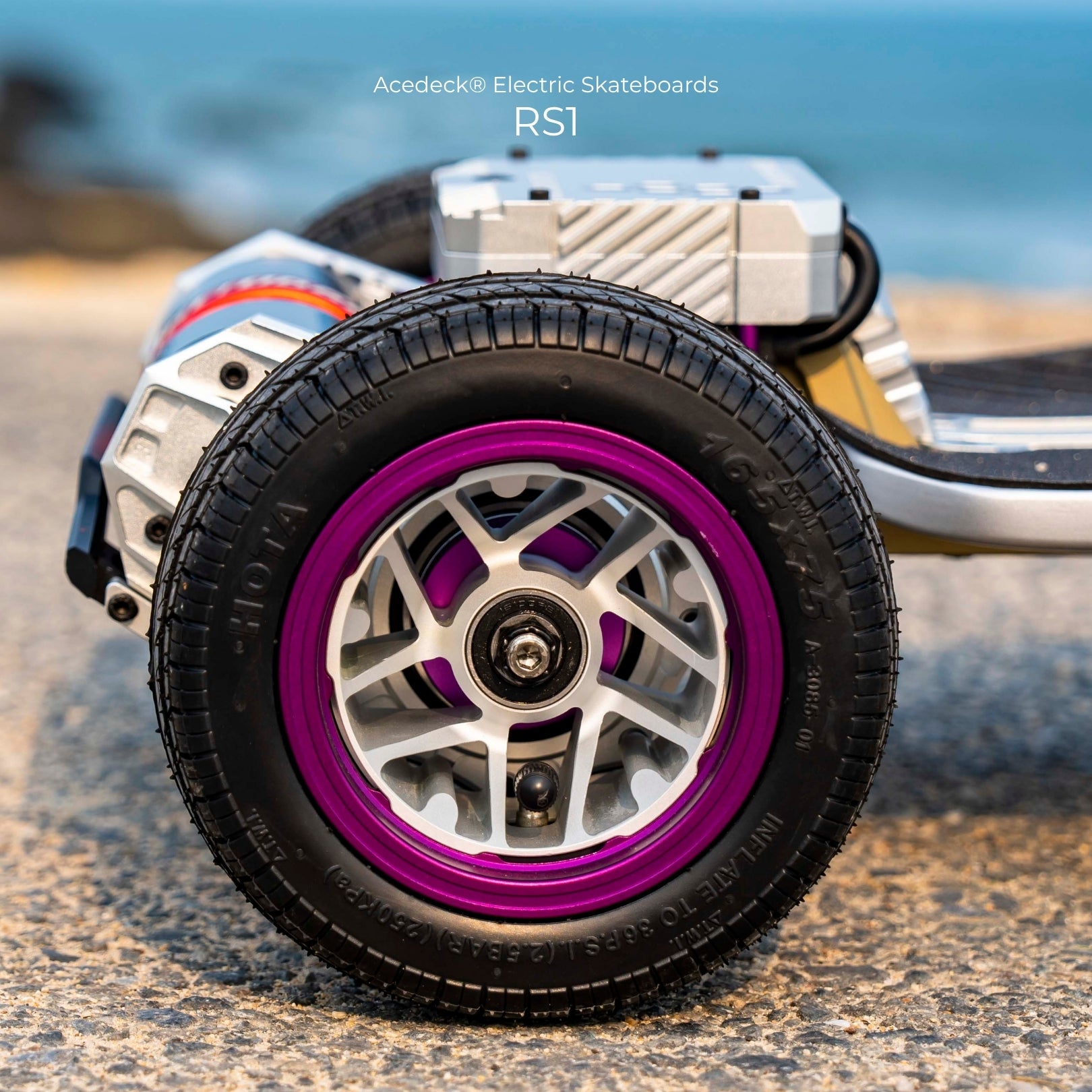

05 / HUBS AND WHEELS
CNC Quick-Release Hubs Precision-machined hubs allow fast wheel changes without compromising strength.
All Terrain 165*75mm Hota Wheel Tire
With reinforced walls that withstand high pressure and prevent punctures, they also do well during hard carving. The tire maintains stability and can change shape according to the pressure applied, making it a versatile and reliable option.
Notice for Canadian Customers: Due to local regulations regarding electric vehicle speeds, all orders shipped to Canada will include a customized remote programmed with a top speed limit of 25 km/h. Standard, unrestricted remotes are available for separate purchase if needed.
