Horizon
Order
160 A
Power
110 KM
Endurance
44 MPH
Top Speed

The Ultimate Long Range,

The Most Comfortable Electric Skateboard

Acedeck is releasing its fastest and most powerful product to date, the Acedeck® Horizon. It is our new entry in the long range, street carver style board, a category meant for riders who want to ultimate electric skateboard adventure.

This board will take you further than ever before, in the safest and most comfortable way imaginable. This is possible thanks to our refined suspension system fitted to a carefully shaped deck, a gigantic flexible battery, the best drive system on the market, and as always with Acedeck, ultimate power. If you let it, this board will truly take you to new horizons.

Go up to 110km on a single charge
biggest battery ever DH011-01

We are now introducing our biggest battery ever, a 14s8p, 2072Wh battery configuration with Samsung 50S cells, so that you go further than ever before. We are achieving this capacity by not only adding more cells in parallel but also using the high-quality and high-capacity Samsung 50S cell.

Our other battery options are 1554Wh and 1036Wh might give you less range and, in that, shorten your ride, but you might consider them if you want a lighter or more affordable board.

The new ACEDECK 9A Fast-Charger

To make our chargers safer than ever before, we partnered with industry leader MDA, known for their top-quality components. After extensive R&D efforts on specifications and protection circuit design, they developed our new 9A charger. Crafted with a full aluminum structure, it offers much improved heat dissipation thanks to an active spinning fan, while maximizing energy conversion efficiency, delivering both speed and safety for your charging needs. Charge your boards twice as fast as you used to.

The Most Powerful Acedeck Board Yet

6890 150KV

Motors

True 160A

Output

True 8000W

Achievable Peak Power

70KPH+

Top speed

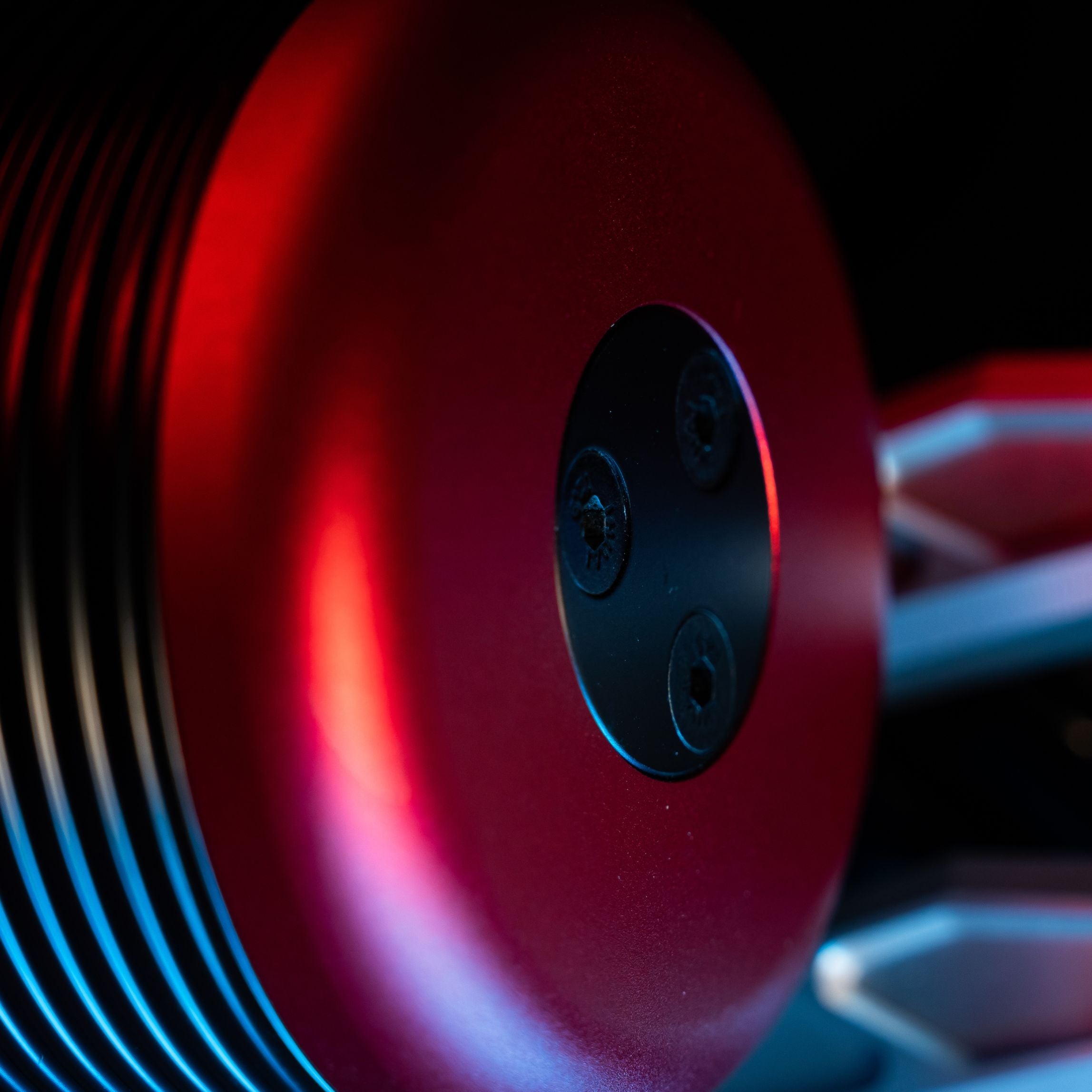

The Horizon is fitted with our most powerful ESC, to work hands in hand with our custom-designed 6890 150kv motors, known for their incredible torque and performance, to achieve true 160A output and 8000W achievable peak power with the new battery. We’ve upgraded the motor with a triple-bearing design, allowing it to handle higher torque without damaging the rotor. Additionally, the three rear M3 screws have been reinforced to M4, ensuring greater durability and stability.This makes it one of the most powerful electric skateboard on the market, and by far the most powerful in this price segment.

With the new ESC, we are also able to re-think the power delivery control, and our acceleration is now a lot smoother for riders that are looking for a less intense ride out of the box. But of course, all the ride settings are still customizable from the Remote Menu. Finally, thanks to these new motor drive configuration, we are able to achieve a top speed of 70kph+.

HORIZON

Integrated Light System For Nighttime Rides

High Beam
Low Beam

1600 lumens

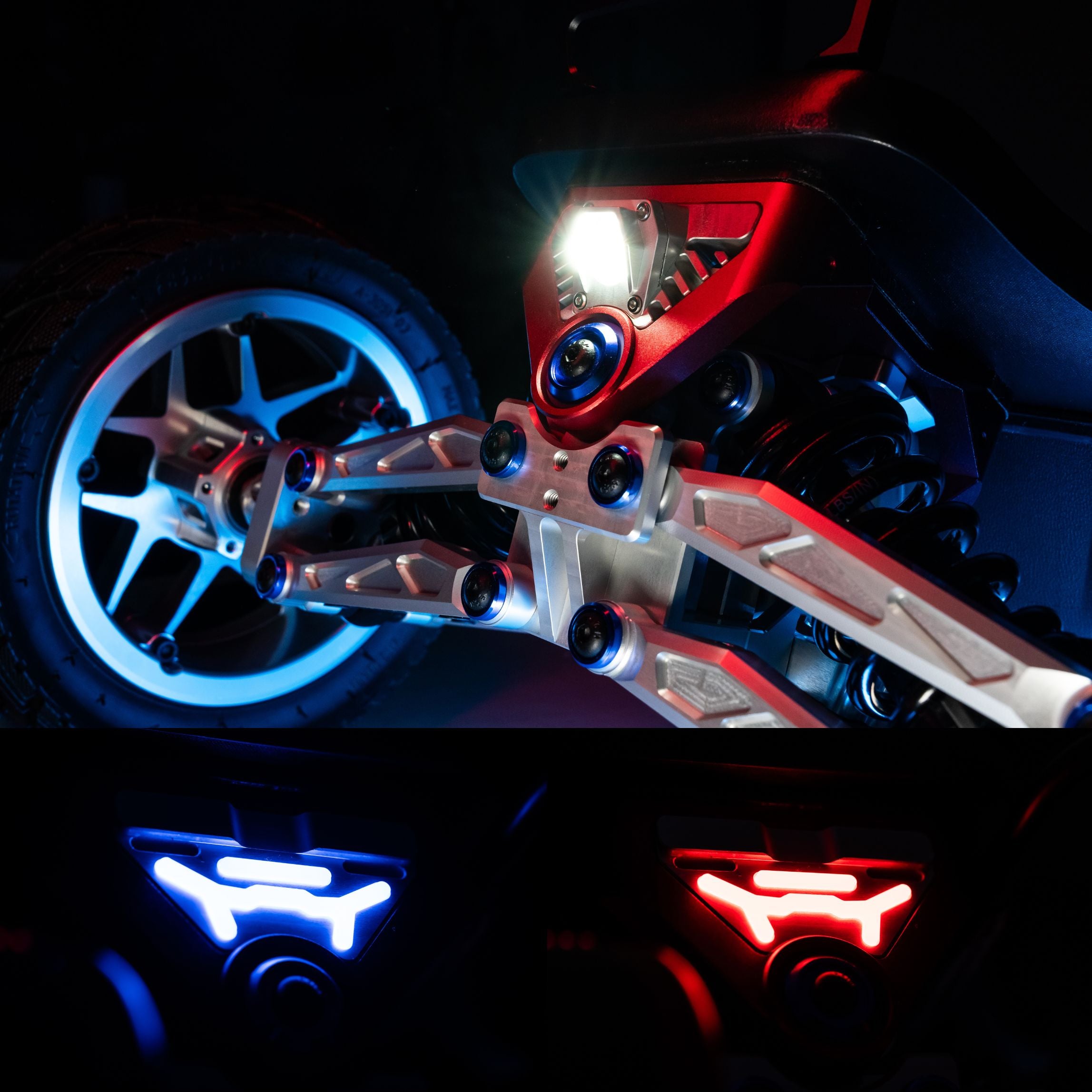

The Horizon is equipped with an advanced integrated front lighting system, ensuring visibility during nighttime rides. Delivering an impressive 1600 lumens of brightness, the front light illuminates the path ahead with exceptional clarity, providing safety and confidence in low-light conditions. The light’s intensity can be changed directly from the remote, allowing you to adapt it to your preferences or riding environment.

New Light System

The new RGB tail light dynamically responds to braking, ensuring visibility and alerting others to your actions. Worth noting, this system will become even more versatile—in 2025, we plan to release an upgraded Acedeck remote that will unlock additional light modes .With these future enhancements, your Horizon board will offer an even more unique and personalized riding experience.

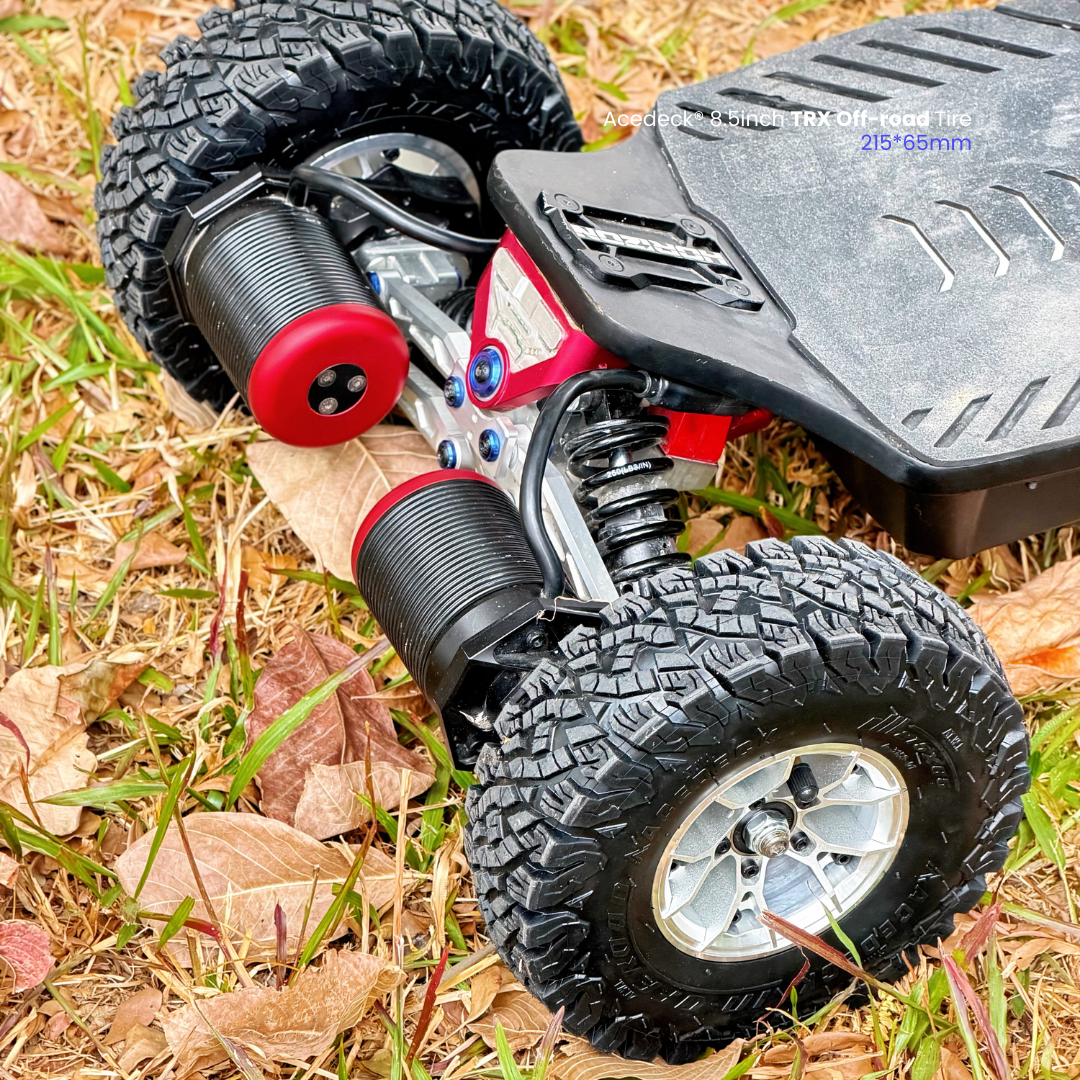

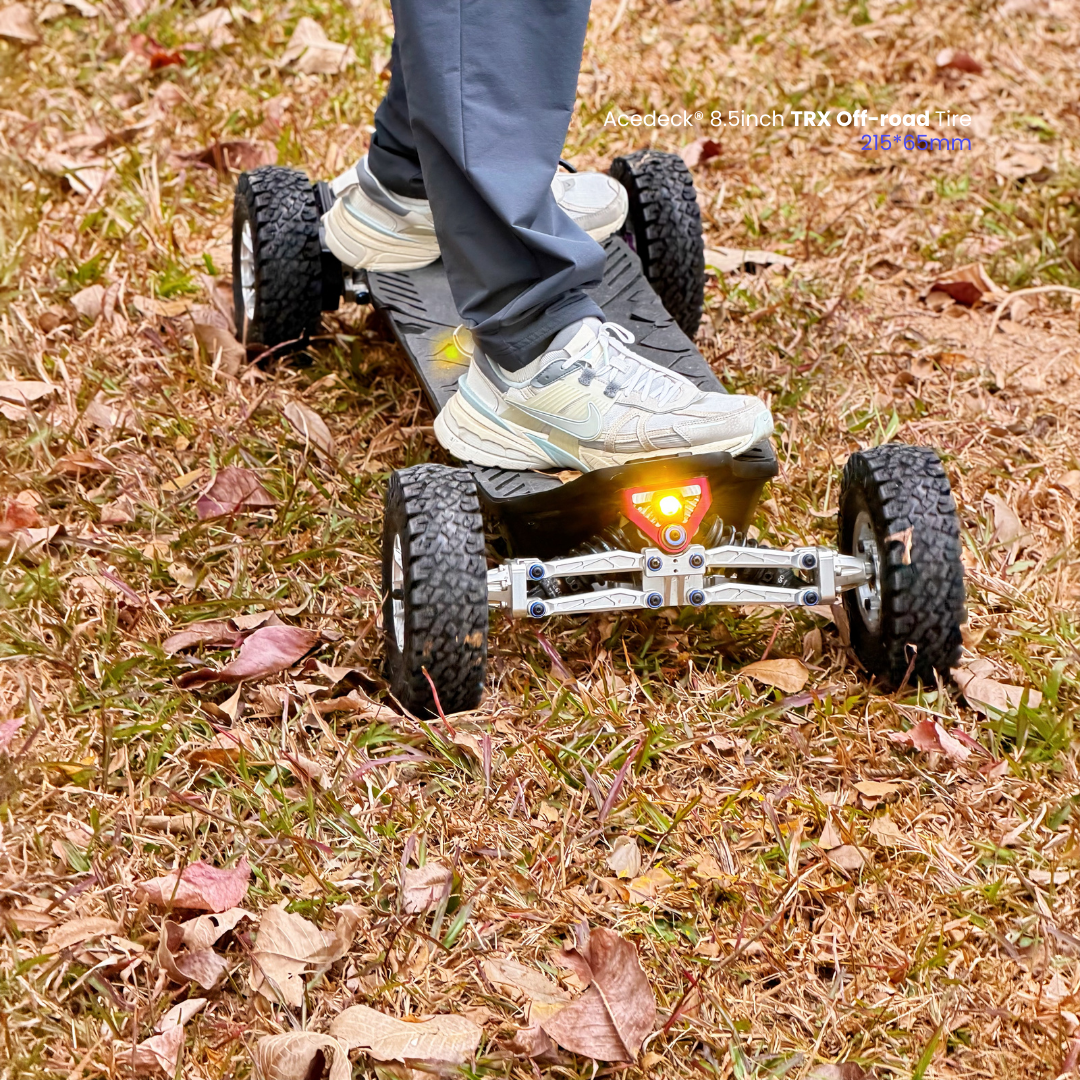

Shock-absorbing Channel Trucks.

Travel safely on any terrain.

Shock-Absorbing Channel Truck

Shock-Absorbing Channel Truck

With the Horizon, we are introducing our refined Acedeck Suspension Trucks. We first launched our shock absorbing system on the Nyx Z3, and since then we have refined it to improve tolerances, quieter operation, and performance. It is now also fitted with EXA shock absorbers. Unlike a standard truck system, the 4 tires can move up and down independently from each other, meaning that when one tire rolls over a rock or into a hole on the ground, it won't have a direct impact on the rider’s balance. It will also dissipate a lot of road imperfections and vibrations, which makes the ride more comfortable, while also improving stability. This makes it ideal for long range asphalt riding, not just off-road. Your legs and knees will thank you.
Shock-Absorbing Channel Truck

Shock-Absorbing Channel Truck

Unlike other solutions from other manufacturers, we were able to combine this technology with a Channel Truck platforms, which means the turning behavior is the same as standard trucks, whereas with other solutions, the turning performance is not only reduced, it is also uncomfortable and unpredictable. Our system is also much more compact, and durable, with much improved clearance. It also comes with newly developed bushing formulas to make the board more agile and responsive, while maintaining stability at high speeds.
Shock-Absorbing Channel Truck

CNC

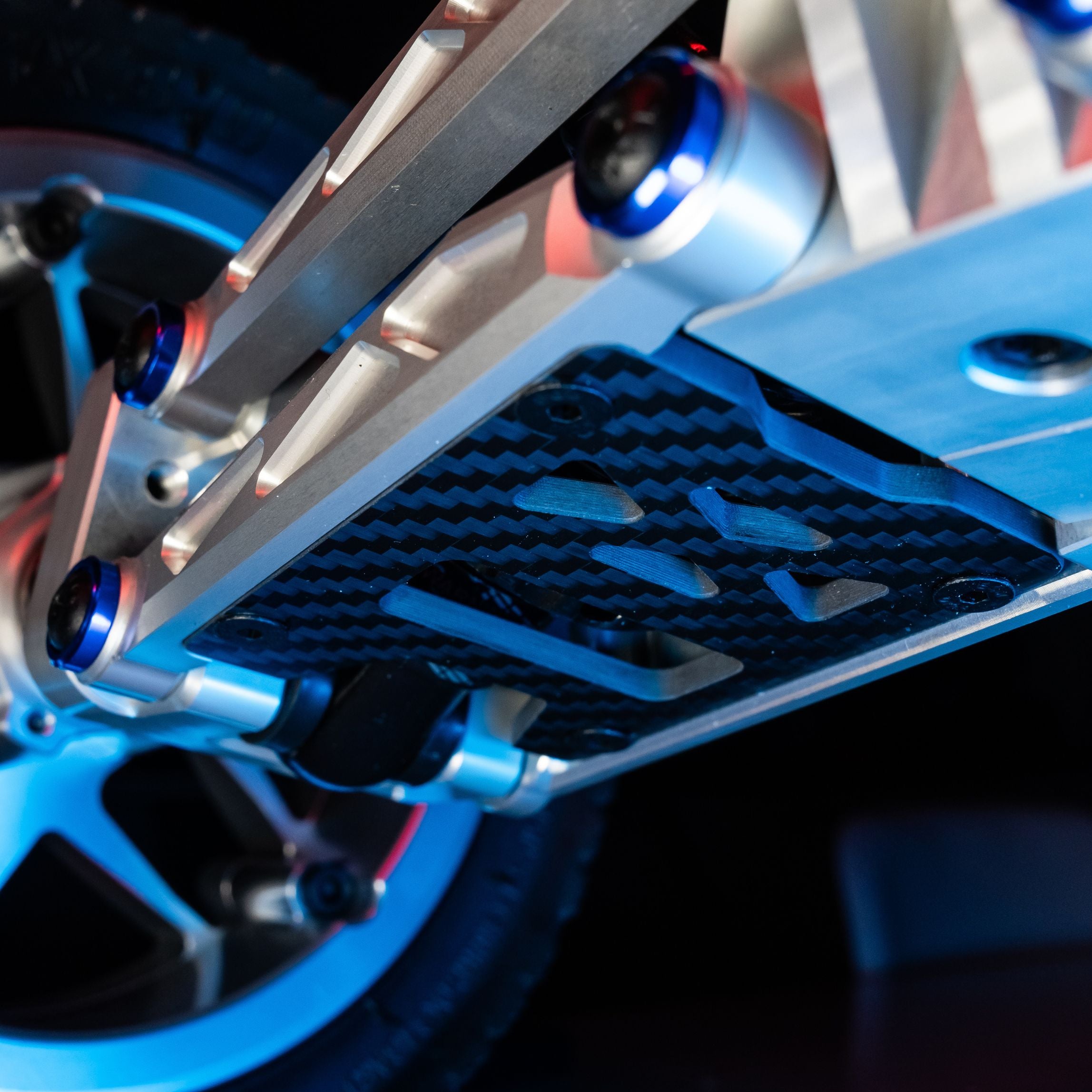

Also, while most companies use cast aluminum for trucks or control arms, which is very fragile, we went with CNC machined arms out of aviation-grade aluminum, which is radically more durable than cast, and can handle a lot more abuse.

Traditional Riding Behavior

Nyx Channel Truck

The Horizon is also available with our beautiful Nyx channel trucks, if you are looking for a more traditional riding behavior. This will allow for a lighter board, and while the ride will be a little harsher, it will be more reactive.

While our gear drives have been great from the start, we are still finding ways to make them even better.

High-strength stainless steel
Now all gears are made from high-strength stainless steel, thermally treated with 42crmo steel, achieving a hardness of 45-55° HRC.
Compact, Lightweight, Durable
The enclosure itself is crafted from aviation-grade aluminum alloy, This also allows us to make the gearbox smaller, by 30%. Our Gear Drive kit is not just lightweight but incredibly durable as well.
Fully enclosed design
It goes without saying that they are radically better than belt drives, for all conditions. It's a fully enclosed system, fully shielded from debris and dust, almost no maintenance, and in that, much safer. It is also much more efficient in power delivery.
New 4.3 Gear Ratio Option
Perfectly tuned for larger wheel hubs, offering enhanced compatibility and performance for every ride.
Adjustable Gear Ratio
The new GEN 4.0⁺ gear drive allows for customization by swapping the gear to the 13T gear. Switch between gear ratios of 3.4 to 4.0 (4.0 gear ratio version) or 3.7 to 4.3 (4.3 gear ratio version) with ease.

Semi-Flexible, Shaped for Control and Comfort

Premium Deck Design

Semi-Flexible, Shaped for Control and Comfort

Premium Deck Design

With the Horizon, to maximize comfort, we designed and shaped a deck that would accommodate all riding styles and rider types, with a length of 94cm and a width of 27cm, paired with a bottom mounted, flexible battery structure, developed in collaboration with Linnpower, and fitted to support system to effectively protect the battery pack and prevent damage from high-frequency vibrations. Made out of a composite of maple, wood, and glass fiber layers, the deck is also slightly flexible, to further improve vibration dampening, which is also enhanced by the EVA Foam griptape. The standing area is now flat, to improve comfort on longer rides.The entire board structure, from the deck to the trucks, has been reinforced for improved durability, with a focus on ensuring a smooth and safe experience at high speeds, even on paved roads. And just like our other high-end boards, the deck has a embedded internal nut mounting system for bindings.

Embedded Internal Nut Mounting System

EVA Foam Griptape

Flexible

New hub and tires

To make the ride even more special and safer in most road conditions, the 8P and 6P Horizons are fitted with 8.5 inches high end road tires. They will further improve clearance and dissipate road imperfections.

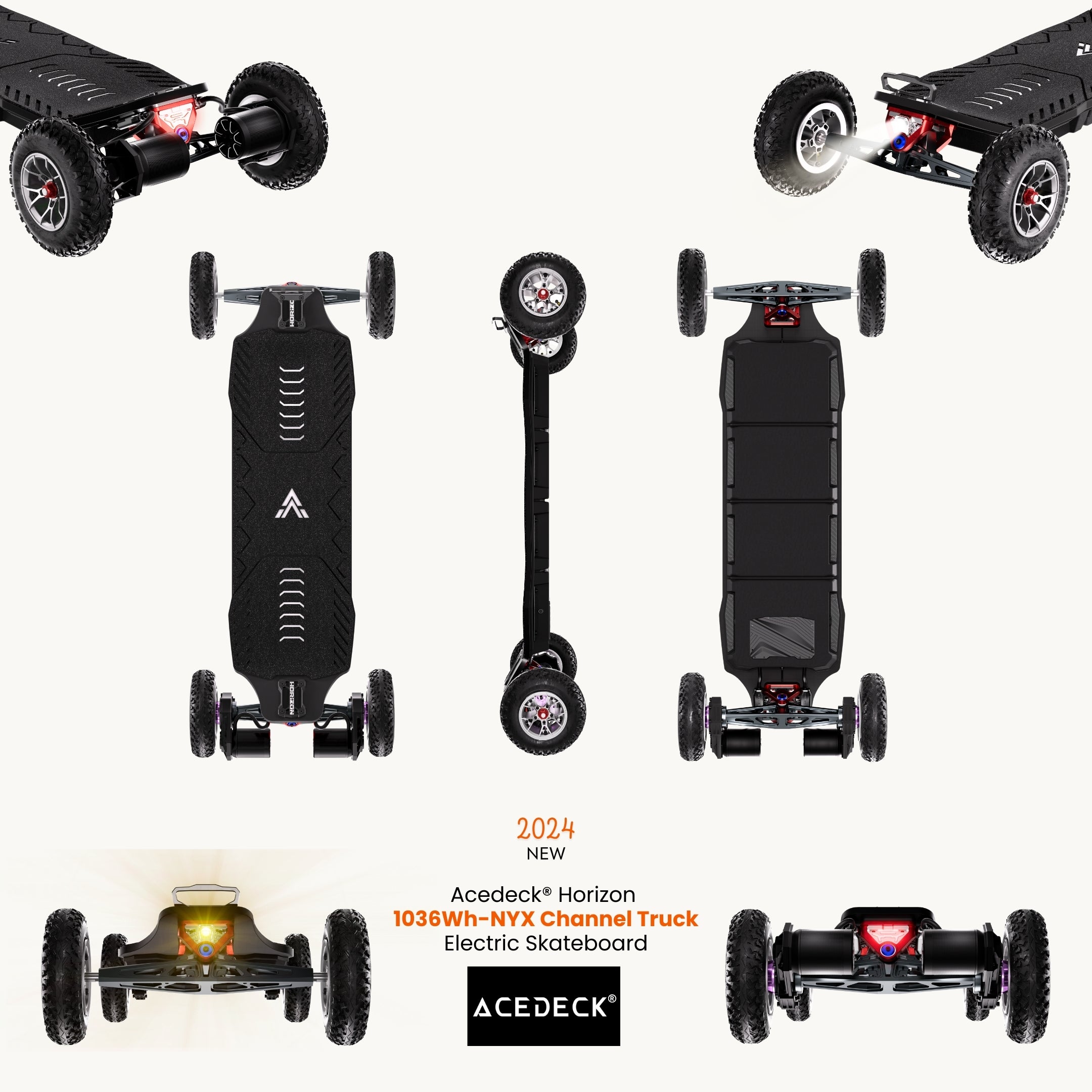

Acedeck® Horizon Electric Skateboard
Acedeck® Horizon Electric Skateboard
Acedeck® Horizon Electric Skateboard
Acedeck® Horizon Electric Skateboard
Acedeck® Horizon Electric Skateboard
Acedeck® Horizon Electric Skateboard
Acedeck® Horizon Electric Skateboard
Acedeck® Horizon Electric Skateboard
Acedeck® Horizon Electric Skateboard
Acedeck® Horizon Electric Skateboard
Acedeck® Horizon Electric Skateboard
Acedeck® Horizon Electric Skateboard
Acedeck® Horizon Electric Skateboard
Acedeck® Horizon Electric Skateboard
Acedeck® Horizon Electric Skateboard

Acedeck® Horizon Electric Skateboard

The Ultimate Long Range. The Most Comfortable Electric Skateboard.

Acedeck is releasing its fastest and most powerful product to date, the Acedeck® Horizon.
It is our new entry in the long range, street carver style board, a category meant for riders who want to ultimate electric skateboard adventure. This board will take you further than ever before, in the safest and most comfortable way imaginable. This is possible thanks to our refined suspension system fitted to a carefully shaped deck, a gigantic flexible battery, the best drive system on the market, and as always with Acedeck, ultimate power. If you let it, this board will truly take you to new horizons.

  • Ultimate endurance with high-quality and high-capacity Samsung 50S battery cells:
    Up to 110km/ 68 miles Range (2072Wh)
    Up to 85km/ 52 miles Range (1554Wh)
    Up to 55km/34miles Range (1036Wh)
  • A new generation of ESC: 160A
  • The best gear drives on the market got even better.
    Acedeck Gear Drive 4.0⁺- New Element AT Gear Drive(4.3/4.0 gear ratio)
  • Up to 70kph/44mph Top Speed
  • 6890/6384 custom-designed motors, renowned for their exceptional torque, performance, and reliability.
  • Integrated Front & Tail Light System for nighttime rides.

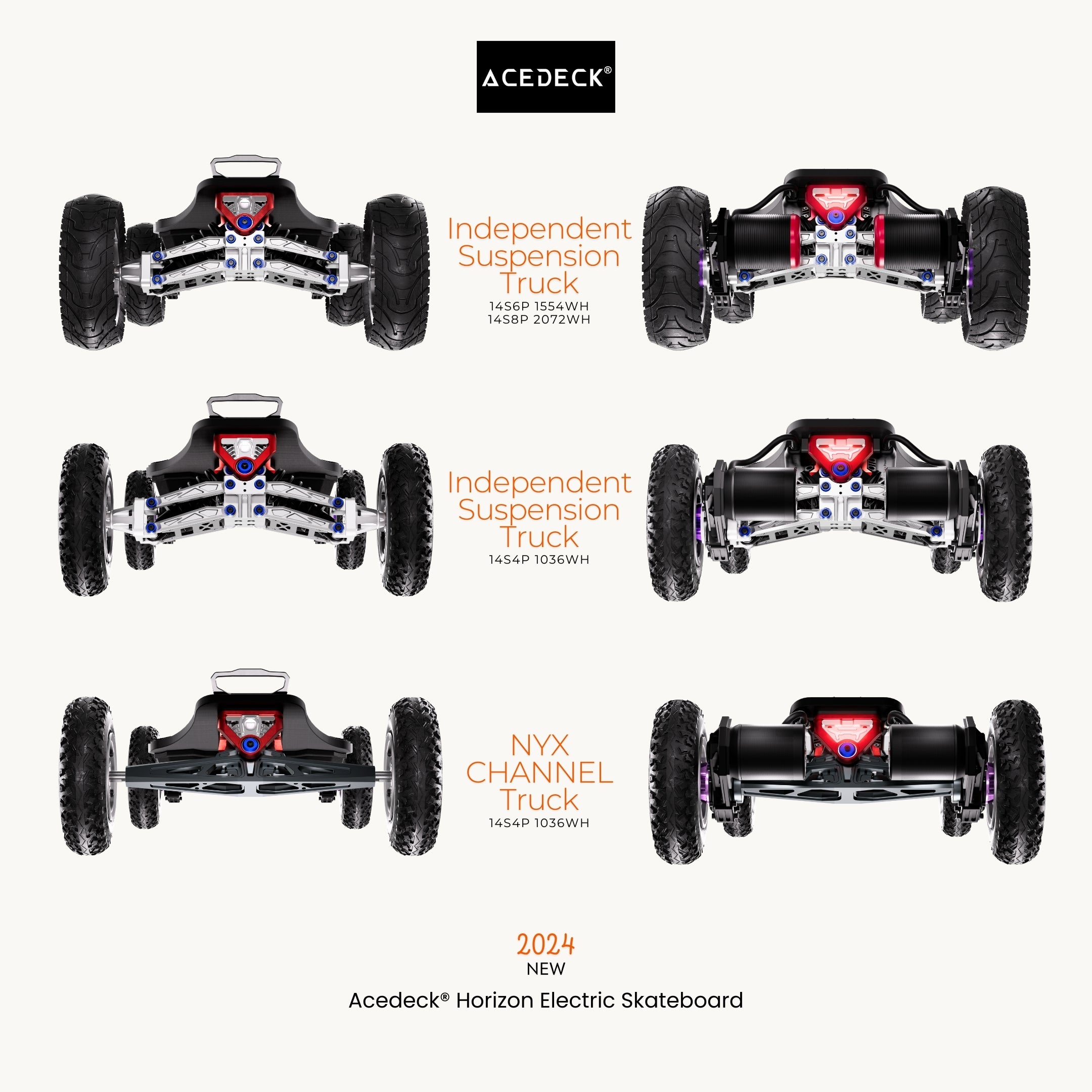

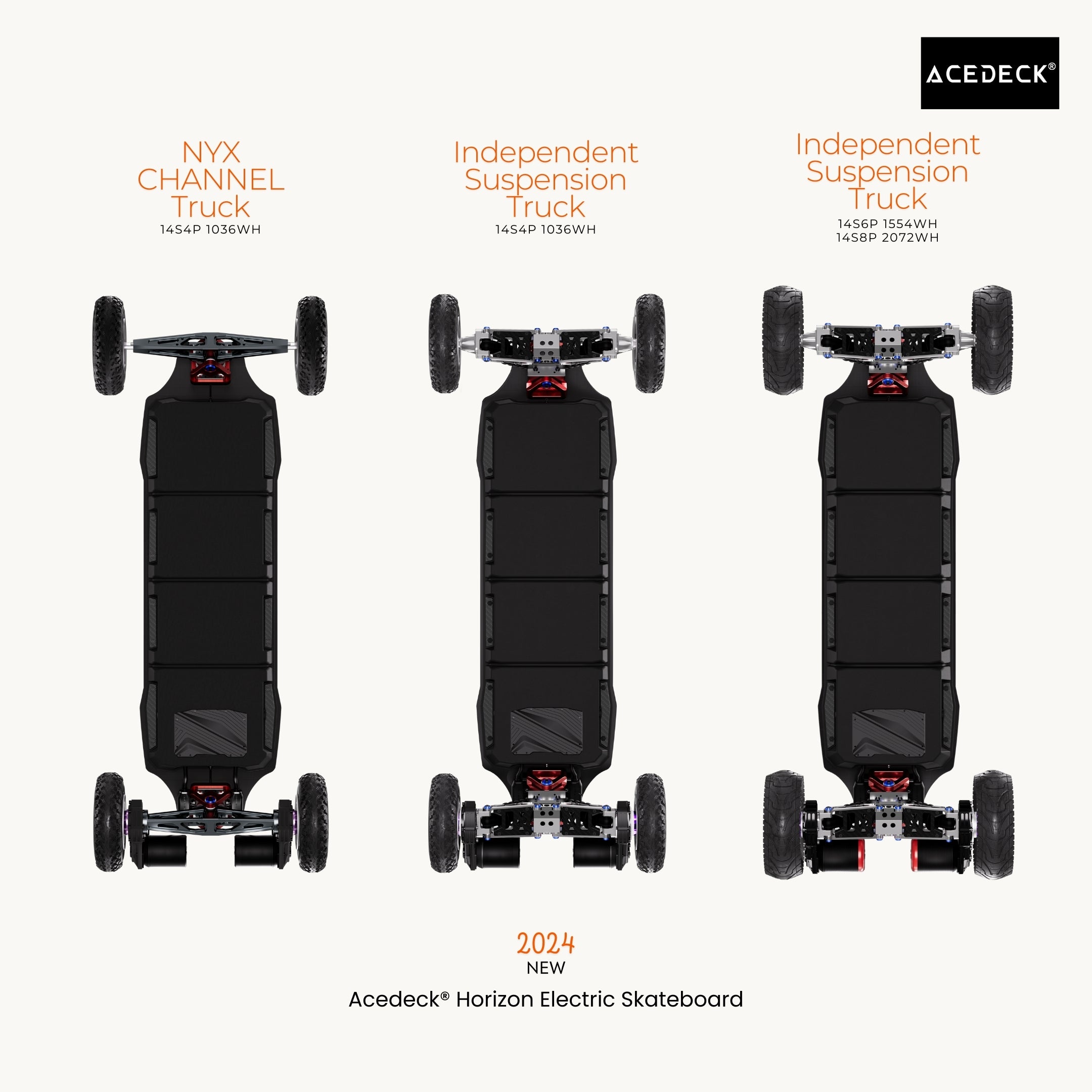

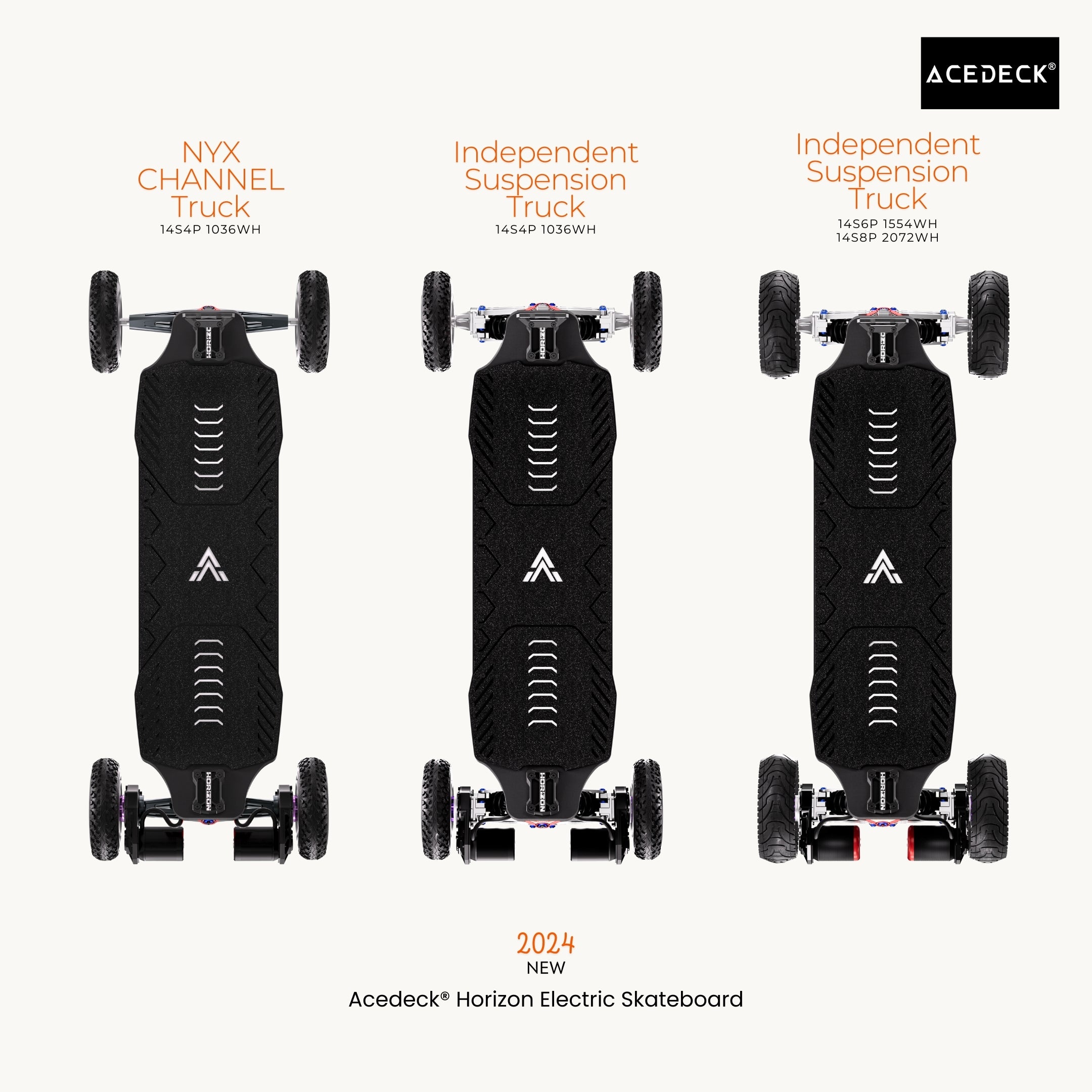

  • Two types of trucks for choosing as your preference:
    ①CNC Shock-absorbing Channel Trucks. Travel safely on any terrain. It will dissipate a lot of road imperfections and vibrations, which makes the ride more comfortable, while also improving stability.
    ② Nyx channel trucks.
    The 12mm bearings in special stainless steel can withstand a great deal of drop pressure during offroad riding. Custom CNC engineered trucks have always been our biggest source of pride and joy. Horizon is also equipped with them. Blending engineering and aesthetic design, these trucks also help us to reduce weight while maintaining strength.

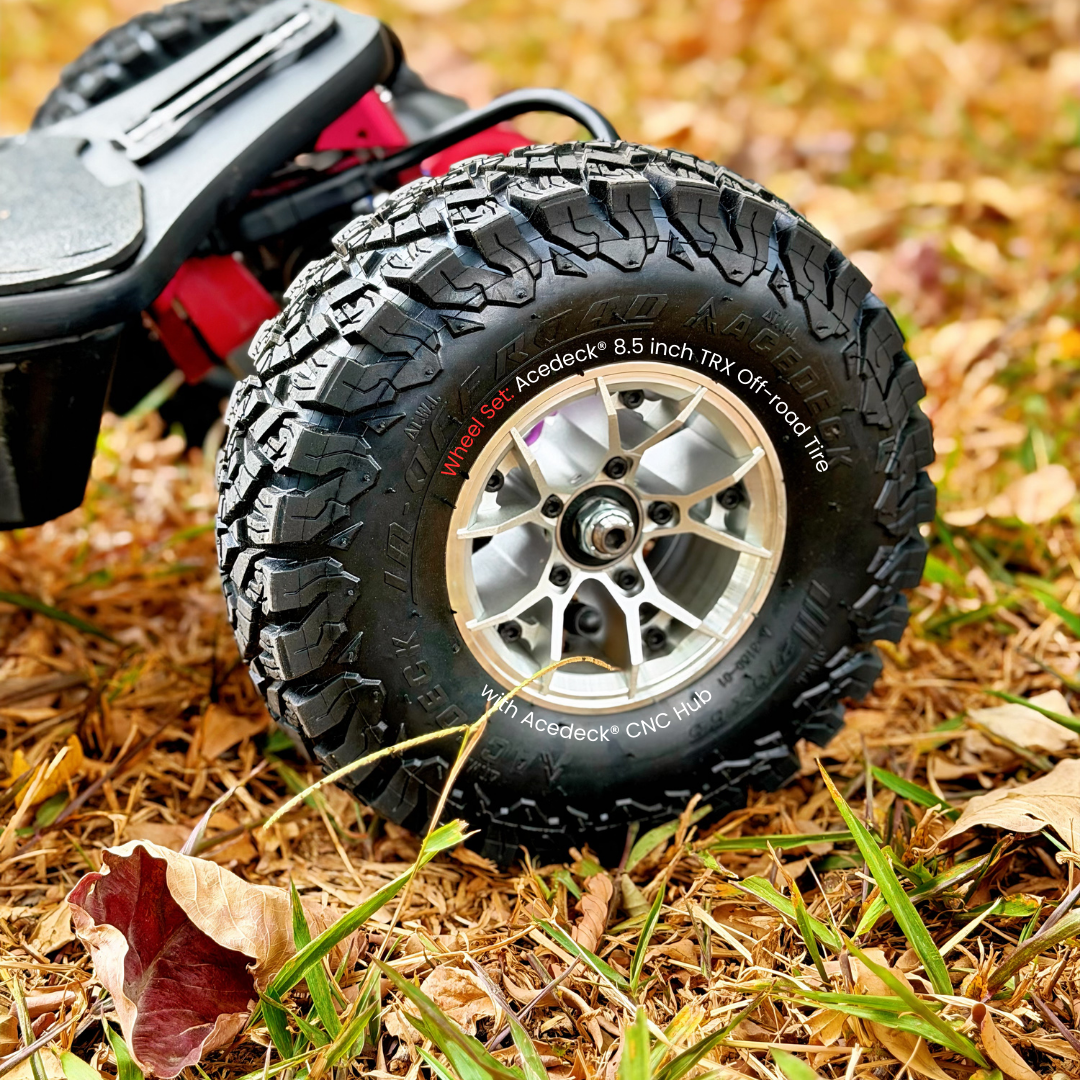

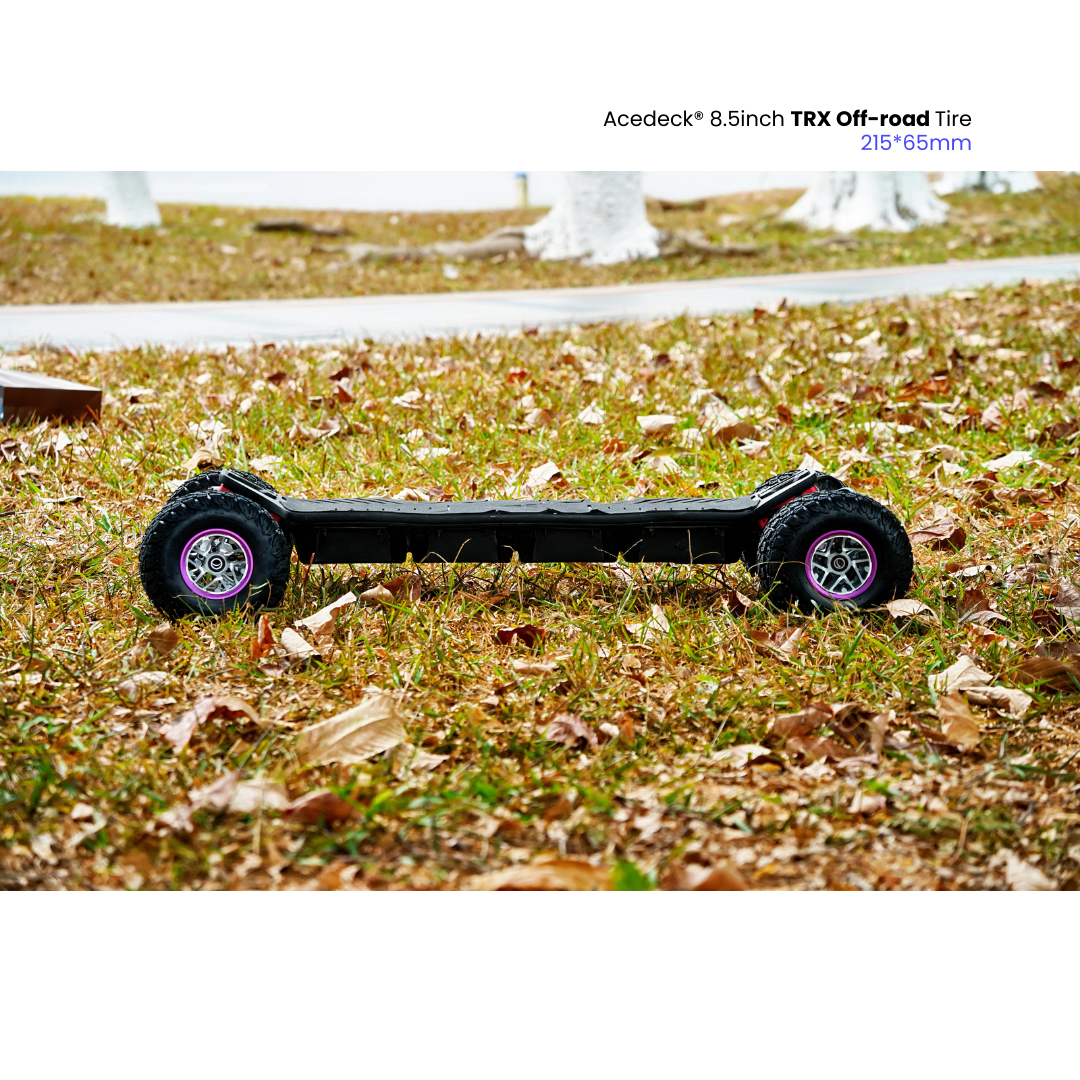

  • New Wheels: AT 8.5/8 inches（215*70mm/200*50mm）Pneumatic wheels With CNC aluminum Hub
  • Premium Deck Design:  Semi-Flexible, Shaped for Control and Comfort
  • Acedeck premium CNC materials, unbreakable
  • Max load: 150kg
Sale price :
Sale price$1,999.00 USD Regular price$2,699.00 USD
Save $700.00
Variant: Horizon (1036Wh)-NYX Channel Truck/14S4P/6384 motor/8 inches Tires

Delivery Timeline

  • US:
    ①Domestic delivery : Estimated 1-7 Days. Start shipping from US warehouse on around December 13.
    ②By Sea: Estimated 30-40 Days.
    ③By Air: Estimated 12-15 Days.
  • EU:
    ① By Air: Estimated 12-18 Days.
    ② By Sea(4P): Estimated 55-70 Days.
    ③Domestic Delivery(4P): Estimated 3-8 Days. Start shipping from EU warehouse on around 2025-1-14
  • Canada:
    ① Domestic Delivery(8P/6P): Estimated 2-8 days. Start shipping from 2025-1-21.
    ② By Air: Estimated 12-18 Days.
    ③ By Sea: Estimated 50-60 Days.

  • Australia:
    ① By Air: Estimated 15-18 Days.
    ② By Sea: Estimated 50-70 Days.
    ③ Domestic Delivery(8P/6P): Estimated 1-8 days. Start shipping from AU warehouse on around 2025-1-9
  • Other countries: Please check the delivery time on your checkout page.

Please note that the 2072Wh(14S8P) and 1554Wh(14S6P) versions of Horizon feature larger battery capacities. For most regions, if you opt for air shipping, your order will arrive in two separate packages. This ensures safe and efficient delivery of your high-capacity Acedeck board. Don't worry, assembly is very simple.

Shipping Fee & Method Details
After entering your address information on the payment page, the final shipping cost will be displayed below your address. Please note that shipping fees and available delivery methods vary based on your location, as well as the weight and dimensions of the selected model.

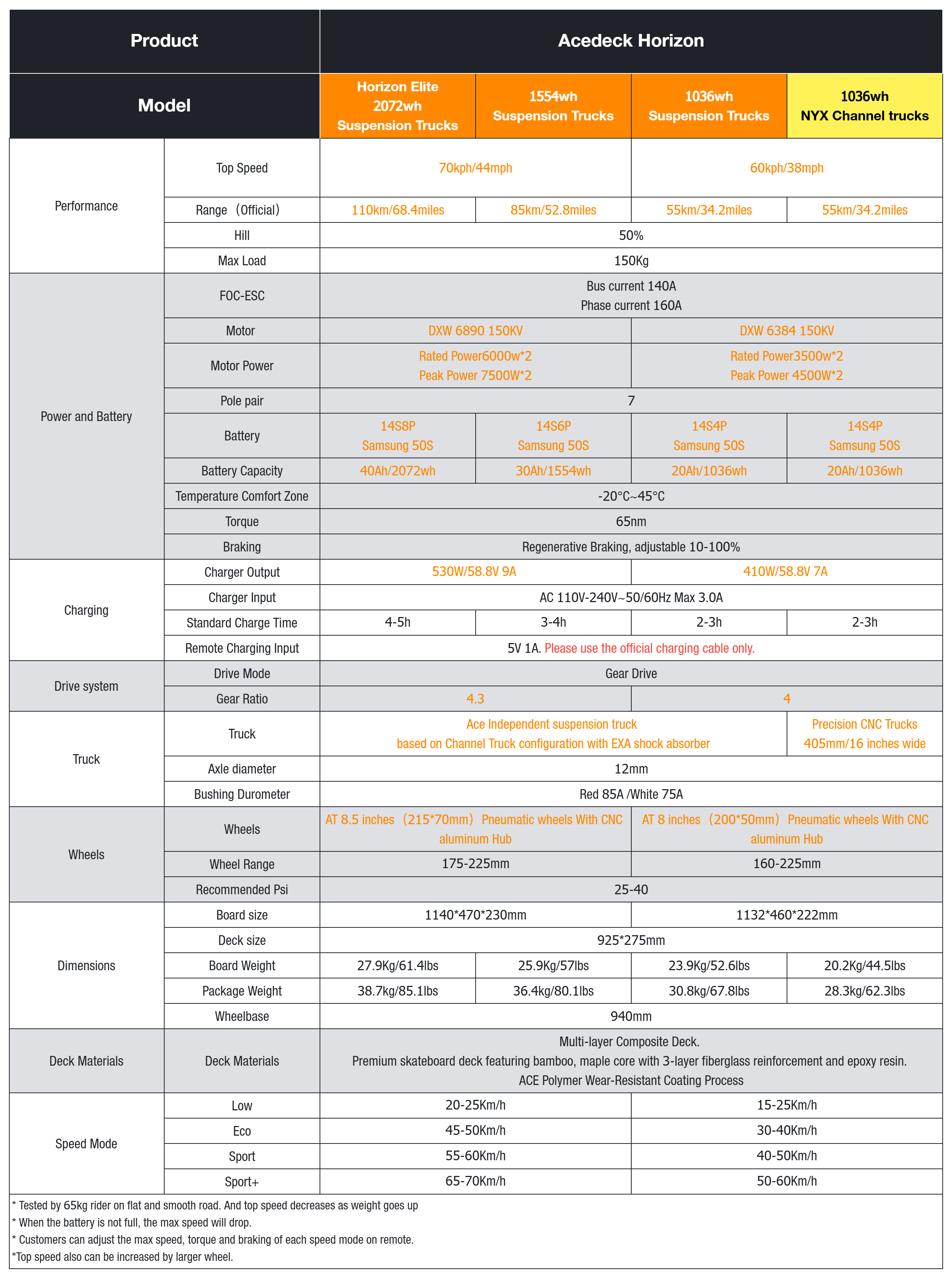

Horizon

Product

{"table-data":"{ \"rows\": [ { \"type\": \"head\", \"key\": \"Specs\", \"values\": [ \"Horizon Elite(2072Wh)-Independent Suspension Truck\", \"Horizon(1554Wh)-Independent Suspension Truck\", \"Horizon(1036Wh)-Independent Suspension Truck\", \"Horizon(1036Wh)-NYX Channel Truck\" ] }, { \"type\": \"head\", \"key\": \"PERFORMANCE\", \"values\": [] }, { \"type\": \"property\", \"key\": \"Top Speed\", \"values\": [ \"Up to 70kph\/43.75mph\", \"Up to 70kph\/43.75mph\", \"Up to 60kph\/37.5mph\", \"Up to 60kph\/37.5mph\" ] }, { \"type\": \"property\", \"key\": \"Range\", \"values\": [ \"Up to 110km\/68.4miles\", \"Up to 85km\/52.8miles\", \"Up to 55km\/34.2miles\", \"Up to 55km\/34.2miles\" ] }, { \"type\": \"property\", \"key\": \"Hill\", \"values\": [ \"50%\", \"50%\", \"50%\", \"50%\" ] }, { \"type\": \"property\", \"key\": \"Max Load\", \"values\": [ \"150Kg\", \"150Kg\", \"150Kg\", \"150Kg\" ] }, { \"type\": \"head\", \"key\": \"POWER AND BATTERY\", \"values\": [] }, { \"type\": \"property\", \"key\": \"FOC-ESC\", \"values\": [ \"Bus current 140A, Phase current 160A\", \"Bus current 140A, Phase current 160A\", \"Bus current 140A, Phase current 160A\", \"Bus current 140A, Phase current 160A\" ] }, { \"type\": \"property\", \"key\": \"Motor\", \"values\": [ \"DXW 6890 150KV\", \"DXW 6890 150KV\", \"DXW 6384 150KV\", \"DXW 6384 150KV\" ] }, { \"type\": \"property\", \"key\": \"Motor Peak Power\", \"values\": [ \"Rated Power6000w*2, Peak Power 7500W*2\", \"Rated Power6000w*2, Peak Power 7500W*2\", \"Rated Power3500w*2, Peak Power 4500W*2\", \"Rated Power3500w*2, Peak Power 4500W*2\" ] }, { \"type\": \"property\", \"key\": \"Pole pair\", \"values\": [ \"7\", \"7\", \"7\", \"7\" ] }, { \"type\": \"property\", \"key\": \"Battery\", \"values\": [ \"14S8P Samsung 50S\", \"14S6P Samsung 50S\", \"14S4P Samsung 50S\", \"14S4P Samsung 50S\" ] }, { \"type\": \"property\", \"key\": \"Battery Capacity\", \"values\": [ \"40Ah\/2072wh\", \"30Ah\/1554wh\", \"20Ah\/1036wh\", \"20Ah\/1036wh\" ] }, { \"type\": \"property\", \"key\": \"Temperature Comfort Zone\", \"values\": [ \"-20°C~45°C\", \"-20°C~45°C\", \"-20°C~45°C\", \"-20°C~45°C\" ] }, { \"type\": \"property\", \"key\": \"Torque\", \"values\": [ \"65 N·m\", \"65 N·m\", \"65 N·m\", \"65 N·m\" ] }, { \"type\": \"head\", \"key\": \"CHARGING\", \"values\": [] }, { \"type\": \"property\", \"key\": \"Charger Output\", \"values\": [ \"530W\/58.8V 9A\", \"530W\/58.8V 9A\", \"410W\/58.8V 7A\", \"410W\/58.8V 7A\" ] }, { \"type\": \"property\", \"key\": \"Charger Input\", \"values\": [ \"AC 110V-240V~50\/60Hz Max 3.0A\", \"AC 110V-240V~50\/60Hz Max 3.0A\", \"AC 110V-240V~50\/60Hz Max 3.0A\", \"AC 110V-240V~50\/60Hz Max 3.0A\" ] }, { \"type\": \"property\", \"key\": \"Standard Charge Time\", \"values\": [ \"4-5h\", \"3-4h\", \"2-3h\", \"2-3h\" ] }, { \"type\": \"property\", \"key\": \"Remote Charging Input\", \"values\": [ \"5V 1A\", \"5V 1A\", \"5V 1A\", \"5V 1A\" ] }, { \"type\": \"head\", \"key\": \"DRIVE SYSTEM\", \"values\": [] }, { \"type\": \"property\", \"key\": \"Drive Mode\", \"values\": [ \"Gear Drive\", \"Gear Drive\", \"Gear Drive\", \"Gear Drive\" ] }, { \"type\": \"property\", \"key\": \"Gear Ratio\", \"values\": [ \"4.3\", \"4.3\", \"4\", \"4\" ] }, { \"type\": \"head\", \"key\": \"TRUCK\", \"values\": [] }, { \"type\": \"property\", \"key\": \"Truck\", \"values\": [ \"ACE Independent suspension truck based on Channel Truck configuration with EXA shock absorber\", \"ACE Independent suspension truck based on Channel Truck configuration with EXA shock absorber\", \"ACE Independent suspension truck based on Channel Truck configuration with EXA shock absorber\", \"Precision CNC Trucks 405mm\/16 inches wide\" ] }, { \"type\": \"property\", \"key\": \"Axle diameter\", \"values\": [ \"12mm\", \"12mm\", \"12mm\", \"12mm\" ] }, { \"type\": \"property\", \"key\": \"Bushing Durometer\", \"values\": [ \"Red 85A\/White 75A\", \"Red 85A\/White 75A\", \"Red 85A\/White 75A\", \"Red 85A\/White 75A\" ] }, { \"type\": \"head\", \"key\": \"WHEELS\", \"values\": [] }, { \"type\": \"property\", \"key\": \"Wheels\", \"values\": [ \"AT 8.5 inches（215*70mm）Pneumatic wheels With CNC aluminum Hub\", \"AT 8.5 inches（215*70mm）Pneumatic wheels With CNC aluminum Hub\", \"AT 8 inches（200*50mm）Pneumatic wheels With CNC aluminum Hub\", \"AT 8 inches（200*50mm）Pneumatic wheels With CNC aluminum Hub\" ] }, { \"type\": \"property\", \"key\": \"Wheel Range\", \"values\": [ \"175-225mm\", \"175-225mm\", \"160-225mm\", \"160-225mm\" ] }, { \"type\": \"property\", \"key\": \"Psi\", \"values\": [ \"25-40\", \"25-40\", \"25-40\", \"25-40\" ] }, { \"type\": \"head\", \"key\": \"DIMENSIONS\", \"values\": [] }, { \"type\": \"property\", \"key\": \"Board size\", \"values\": [ \"1140*470*230mm\", \"1140*470*230mm\", \"1132*460*222mm\", \"1132*460*222mm\" ] }, { \"type\": \"property\", \"key\": \"Deck size\", \"values\": [ \"925*275mm\", \"925*275mm\", \"925*275mm\", \"925*275mm\" ] }, { \"type\": \"property\", \"key\": \"Weight\", \"values\": [ \"28.65kg\", \"26.45kg\", \"21.06kg\", \"19.05kg\" ] }, { \"type\": \"property\", \"key\": \"Wheelbase\", \"values\": [ \"940mm\", \"940mm\", \"940mm\", \"940mm\" ] }, { \"type\": \"property\", \"key\": \"Deck Materials\", \"values\": [ \"Multi-layer Composite Deck\", \"Multi-layer Composite Deck\", \"Multi-layer Composite Deck\", \"Multi-layer Composite Deck\" ] }, { \"type\": \"property\", \"key\": \"Water Proof\", \"values\": [ \"IP65\", \"IP65\", \"IP65\", \"IP65\" ] }, { \"type\": \"head\", \"key\": \"Speed Mode\", \"values\": [] }, { \"type\": \"property\", \"key\": \"Low\", \"values\": [ \"20-25Km\/h\", \"20-25Km\/h\", \"15-25Km\/h\", \"15-25Km\/h\" ] }, { \"type\": \"property\", \"key\": \"Eco\", \"values\": [ \"45-50Km\/h\", \"45-50Km\/h\", \"30-40Km\/h\", \"30-40Km\/h\" ] }, { \"type\": \"property\", \"key\": \"Sport\", \"values\": [ \"55-60Km\/h\", \"55-60Km\/h\", \"40-50Km\/h\", \"40-50Km\/h\" ] }, { \"type\": \"property\", \"key\": \"Sport+\", \"values\": [ \"65-70Km\/h\", \"65-70Km\/h\", \"50-60Km\/h\", \"50-60Km\/h\" ] } ]}"}
