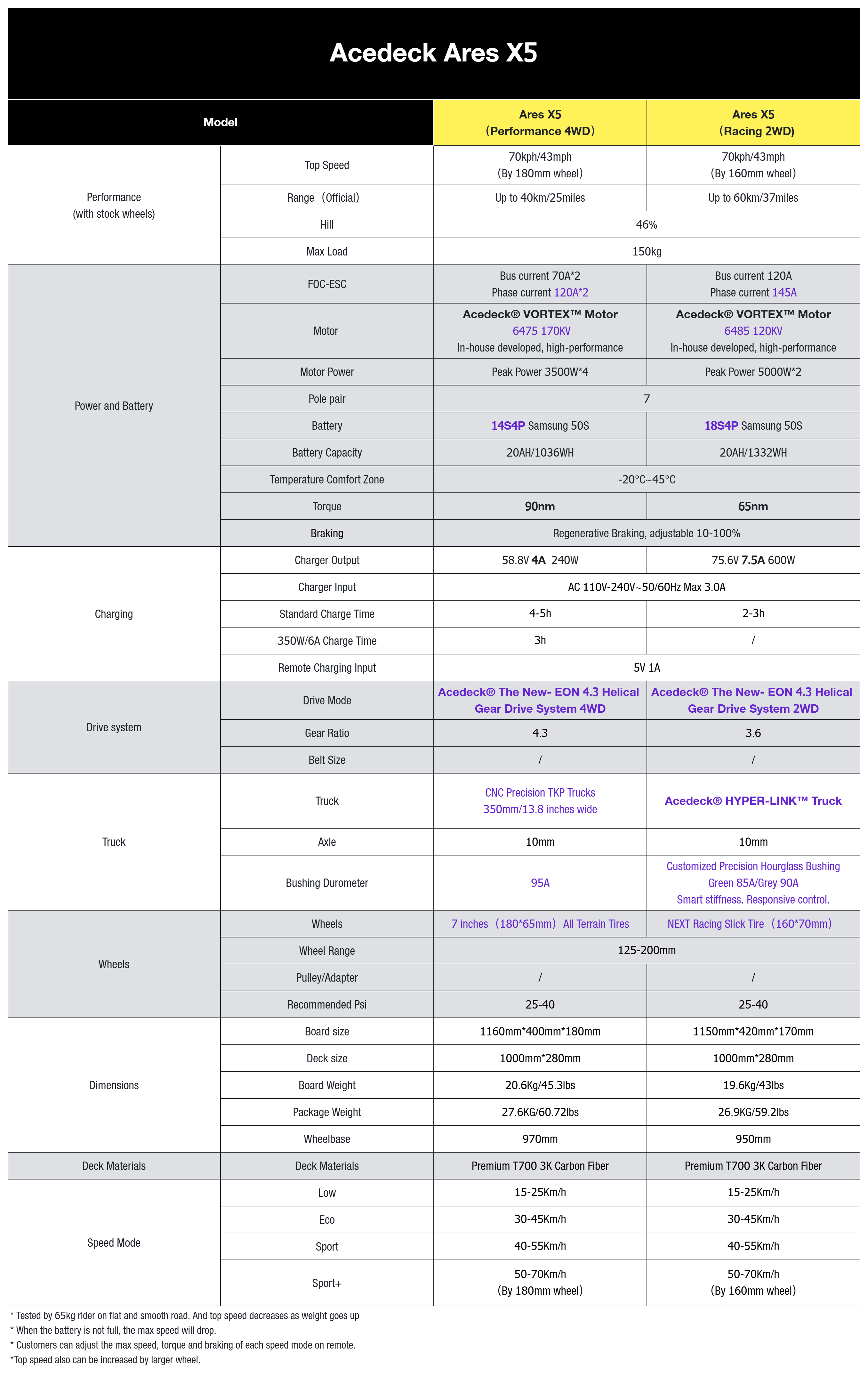

Ares X5
Order
5000 W*2
Peak Power
145 A
18S ESC
43 MPH
Top Speed
1332 Wh
Battery Capacity

Acedeck® Ares X5

Built for Speed.
Tuned for Control.

For those who chase peak performance.
For those who live life with zest.
For those who refuse the ordinary.

Manufacturing Details & Technical Notes

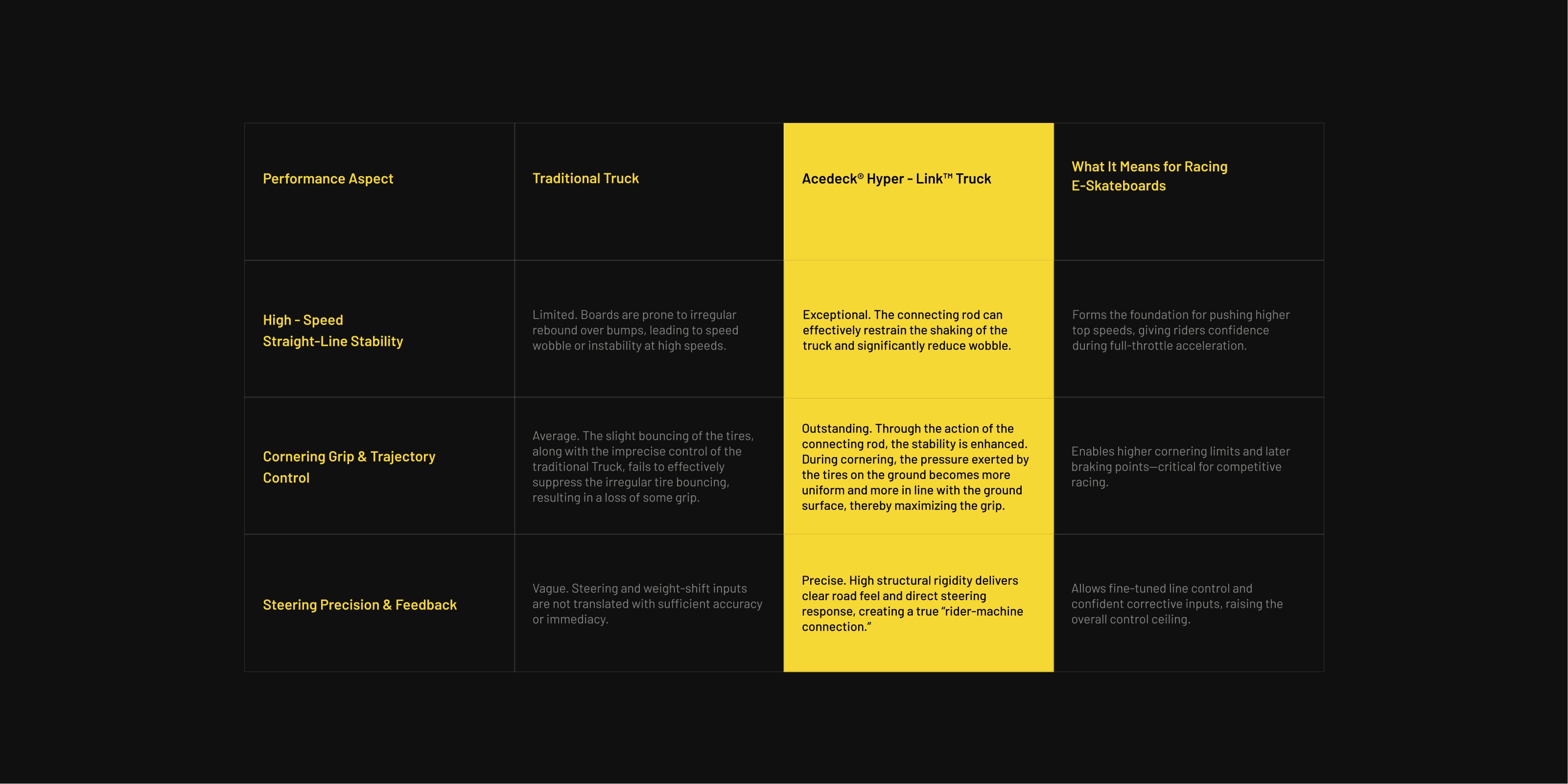

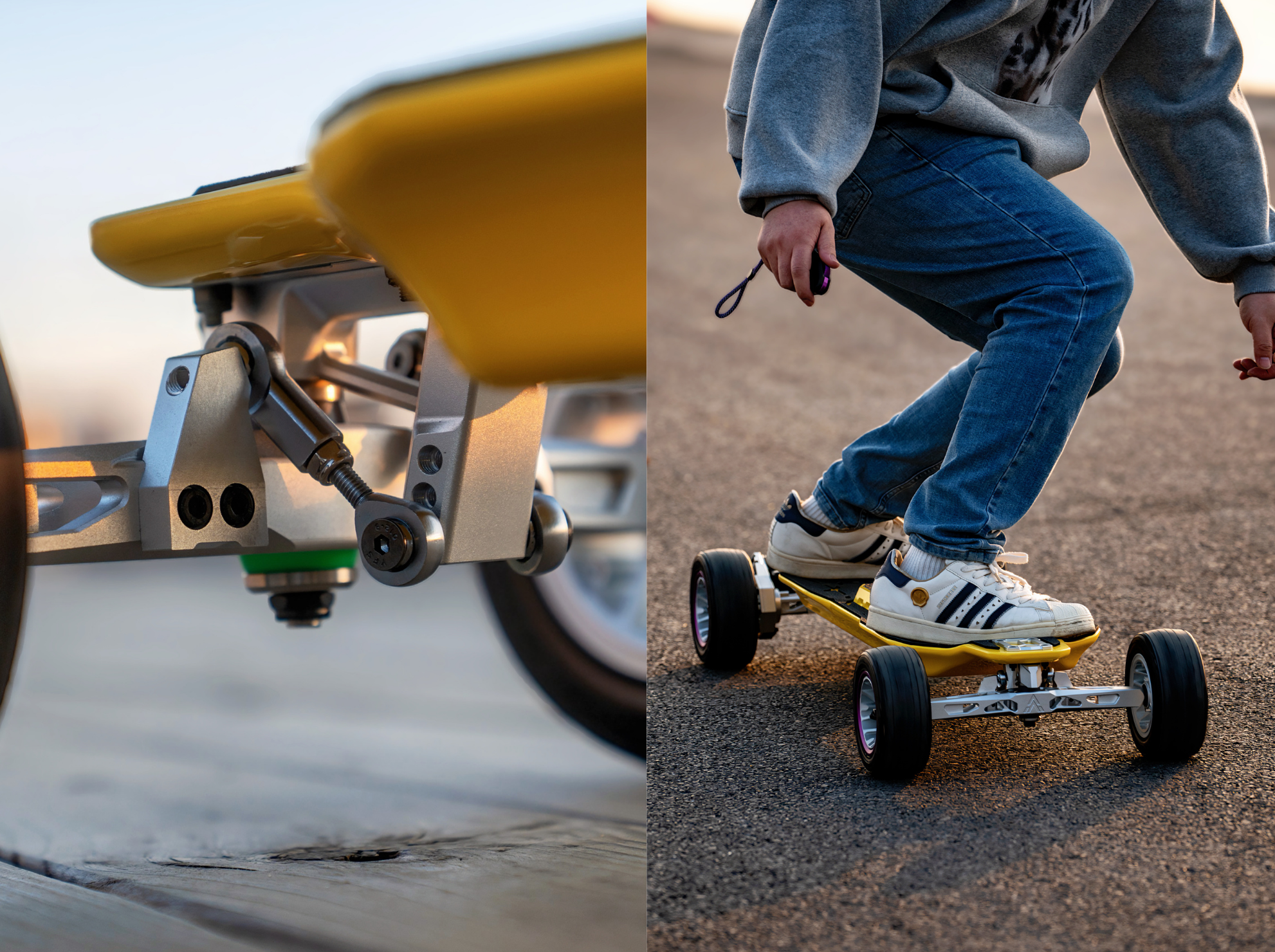

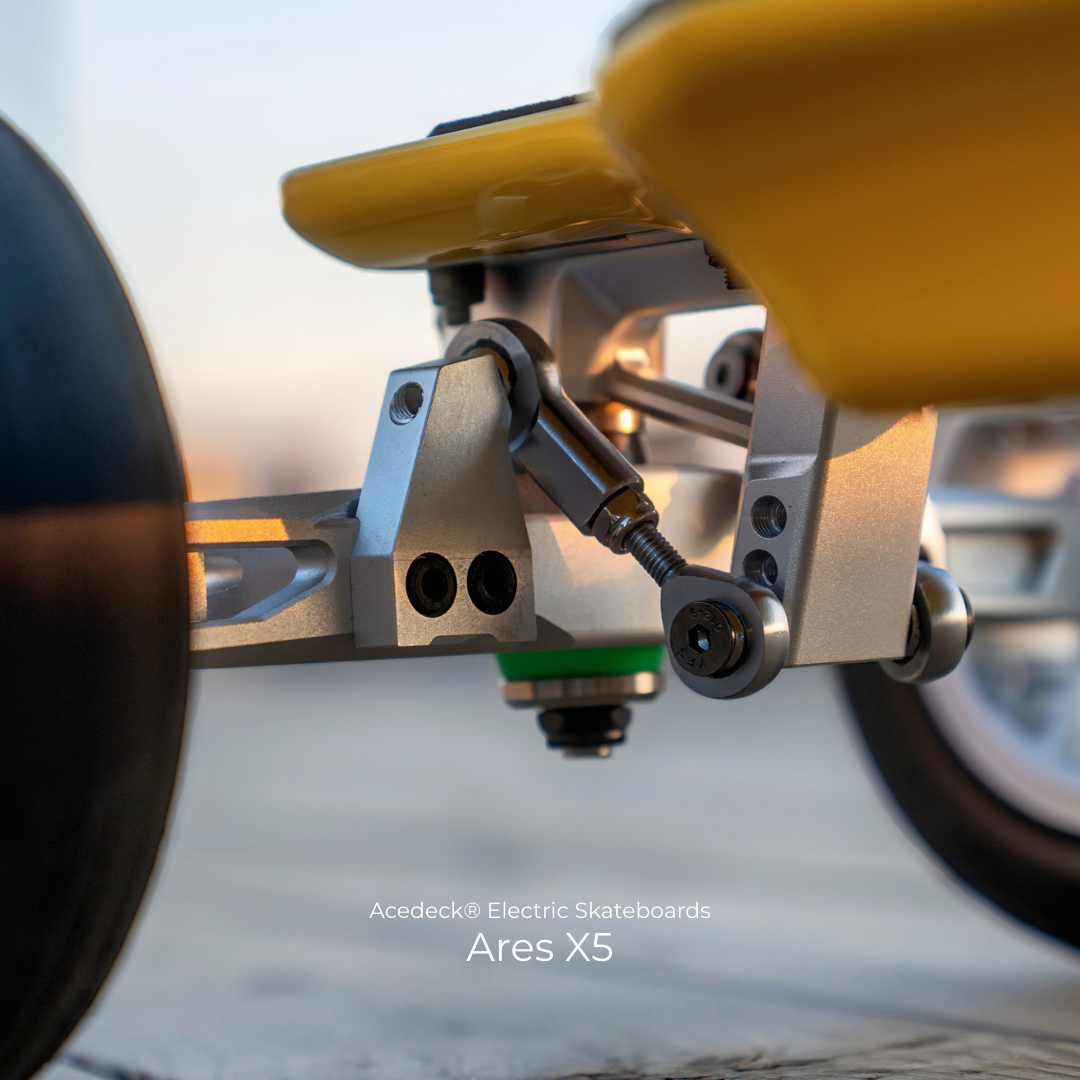

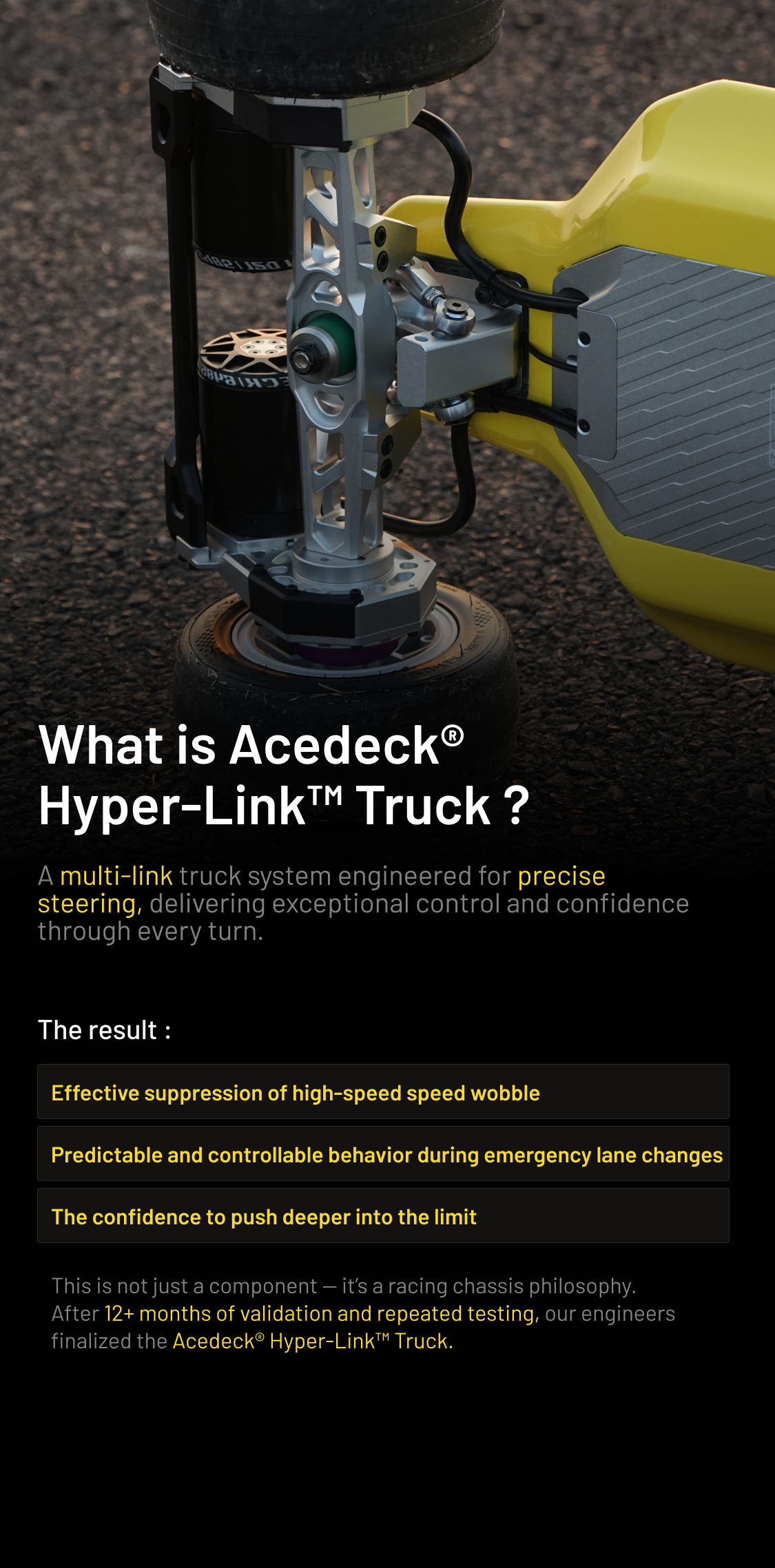

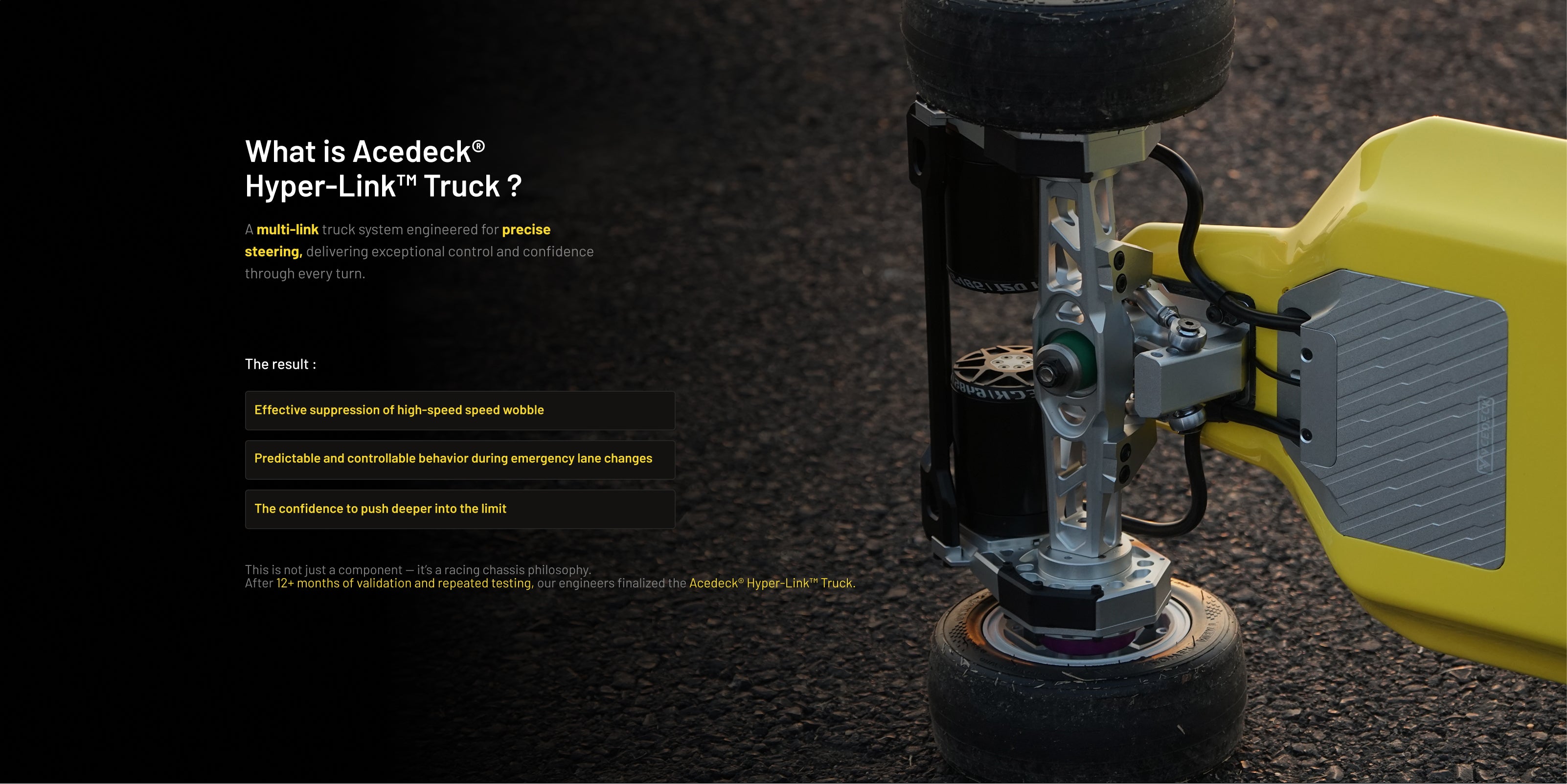

Acedeck® Hyper-Link™ Truck

Truck main body
Cold-forged 6061 aluminum, extensively CNC-machined to reduce weight without compromising strength
Axles & kingpins
Forged alloy steel, precision-turned and ground to ensure accuracy
Patented vertical bushing structure
- Provides stable support with optimal flexibility
- Easy bushing replacement
- Compatible only with tall-style bushings (Riptide Tall Barrel specification)
Rod-end bearings
High-hardness chromoly steel with anti-corrosion treatment, eliminating play and looseness
Fixed link lengths
- Front and rear geometry locked using dedicated jigs
- User adjustment not recommended
- Standard replacement links available from Acedeck (three lengths, three mounting positions)
Custom fasteners
- Taiwan FangSheng custom screws
- Installed to 16 Nm torque
- Secured with Loctite 243
- Removal requires heating to approximately 200°C

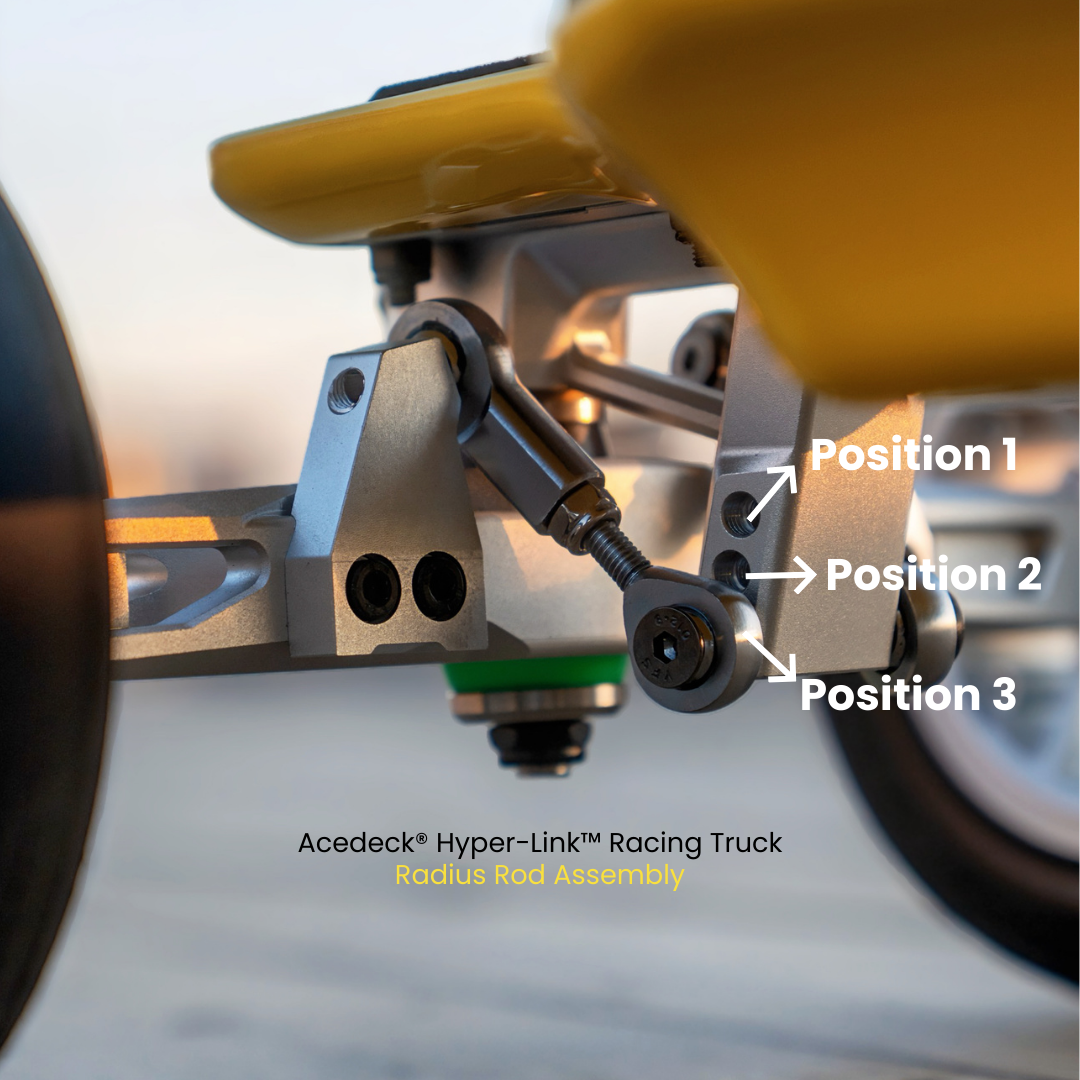

Three Positions to Change

Radius Rod Assembly

Turning Radius: Position 1 (30°) <Position 2 (40°) <Position 3 (50°)

Shop Now

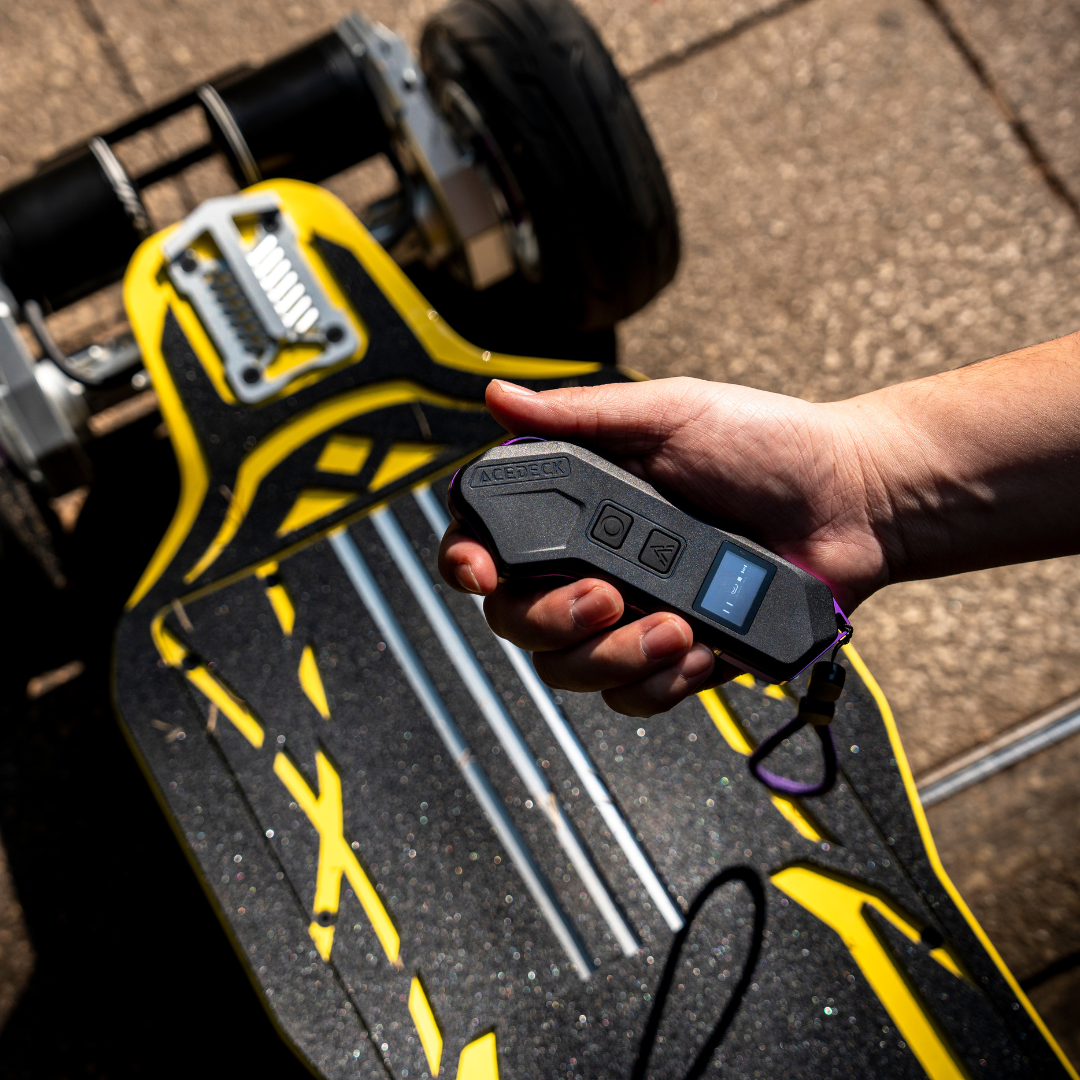

So clear. So cool. So comfortable.

Ergonomic by Design. A full, palm-fitting shape makes the remote feel secure and comfortable even on long rides. The matte finish provides a soft, anti-slip grip, while a balanced weight gives it a solid, premium feel.

Customize your ride

All speed modes are highly customizable, from power output and acceleration curve, to top speed and braking level.

HD Informative Screen

The high-definition screen provides ride status and technical information instantly, such as speedometer, range, or motor temperature, battery voltage, and much more.

Anti-disconnection

Our dual-frequency, anti-disconnection technology ensures a safe and reliable signal transmission at all times.

Remote Controller
Acedeck
Carbon Fiber
Luxurious Handcrafted Carbon Fiber Deck
It doesn’t just support performance-
it multiplies it.
Luxurious Handcrafted
Carbon Fiber Deck

  • Power, fully delivered
    Acceleration feels sharper because torque is used to drive forward motion—not absorbed by deck flex.
  • Control, fully preserved
    A rigid platform allows the suspension to work as intended, maintaining stability and accuracy at speed.
  • Confidence, fully earned
    Immediate feedback and a planted feel give riders the trust to push harder and ride faster.

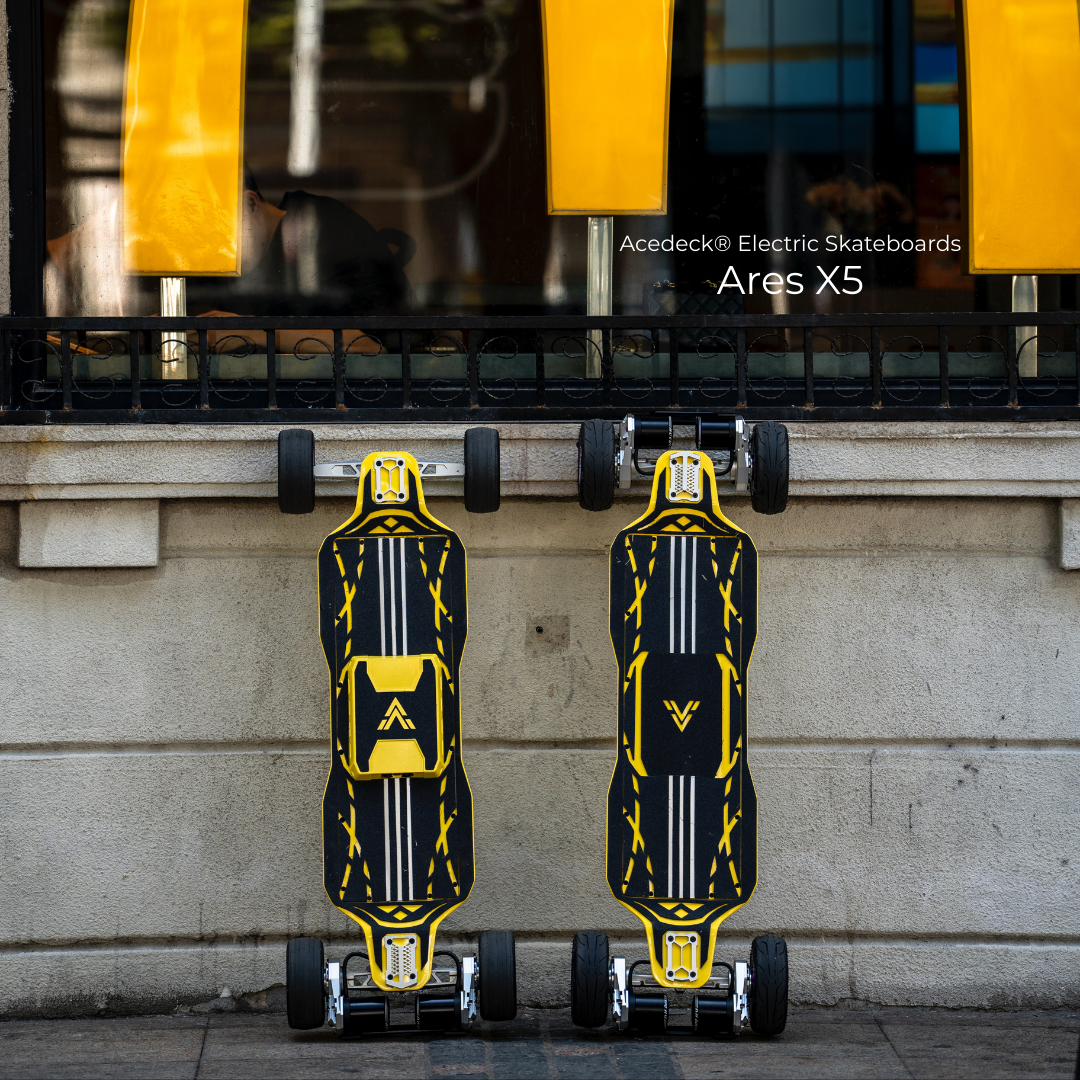

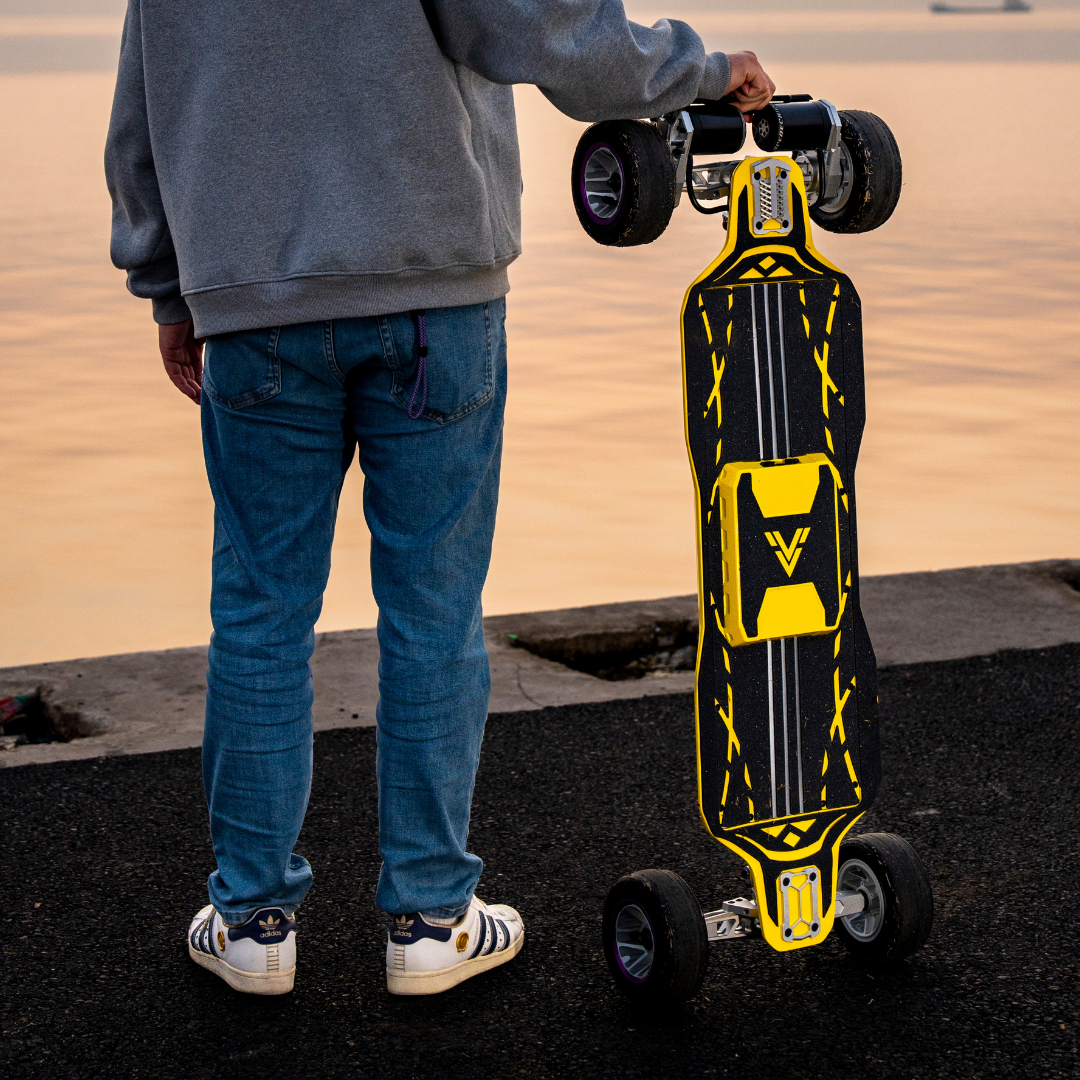

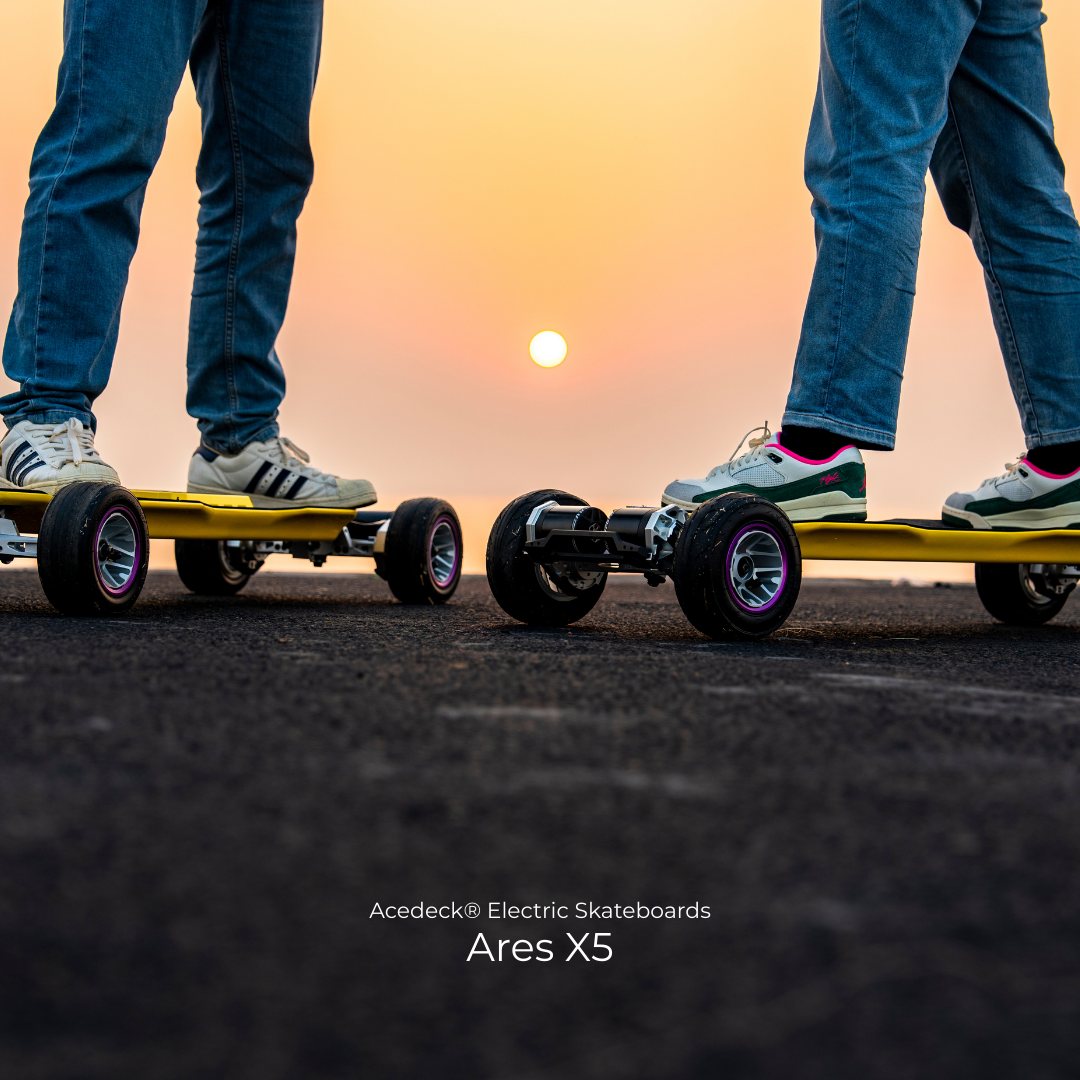

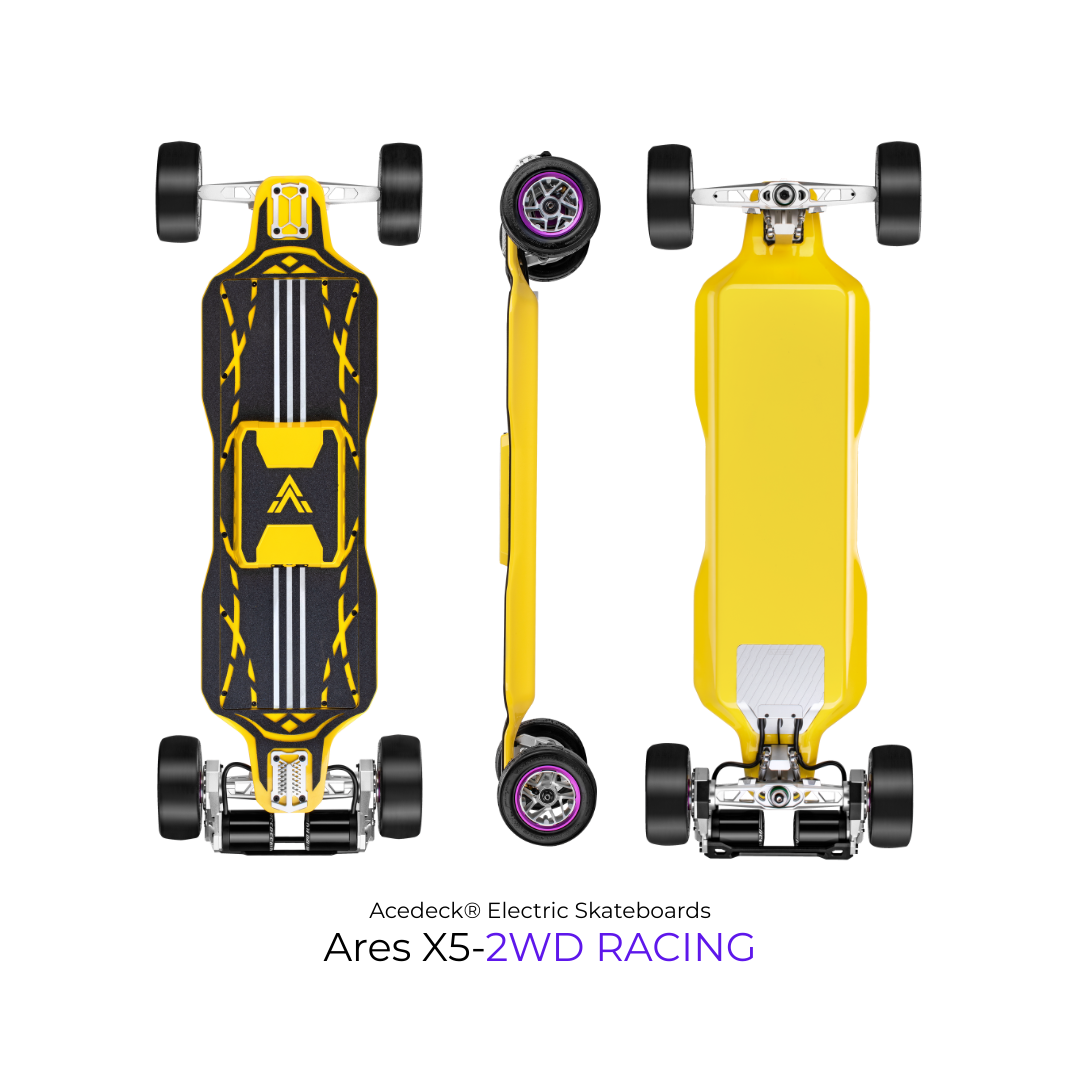

Acedeck® Ares X5 Electric Skateboard
Acedeck® Ares X5 Electric Skateboard
Acedeck® Ares X5 Electric Skateboard
Acedeck® Ares X5 Electric Skateboard
Acedeck® Ares X5 Electric Skateboard
Acedeck® Ares X5 Electric Skateboard
Acedeck® Ares X5 Electric Skateboard
Acedeck® Ares X5 Electric Skateboard
Acedeck® Ares X5 Electric Skateboard
Acedeck® Ares X5 Electric Skateboard
Acedeck® Ares X5 Electric Skateboard

Acedeck® Ares X5 Electric Skateboard

Just released
Sale price :
Sale price$1,999.00 USD Regular price$2,299.00 USD
Save $300.00
Variant: Performance 4WD
Power, Fully Under Control.
For those who chase peak performance.
For those who live life with zest.
For those who refuse the ordinary.



  • 【First-Ever In-House Developed】Acedeck® HYPER-LINK™ Truck
    Precision-tuned geometry delivers exceptional high-speed stability and confident cornering.
  • 【First-Ever In-House Developed】Acedeck® VORTEX™ Motor-6485/6475
    All-new in-house motor provides instant torque and sustained high-output performance.
  • 18S(2WD) Advanced ESC Platform-145A
    ACEDECK’s first 18S system enables smoother power delivery and superior high-speed control.

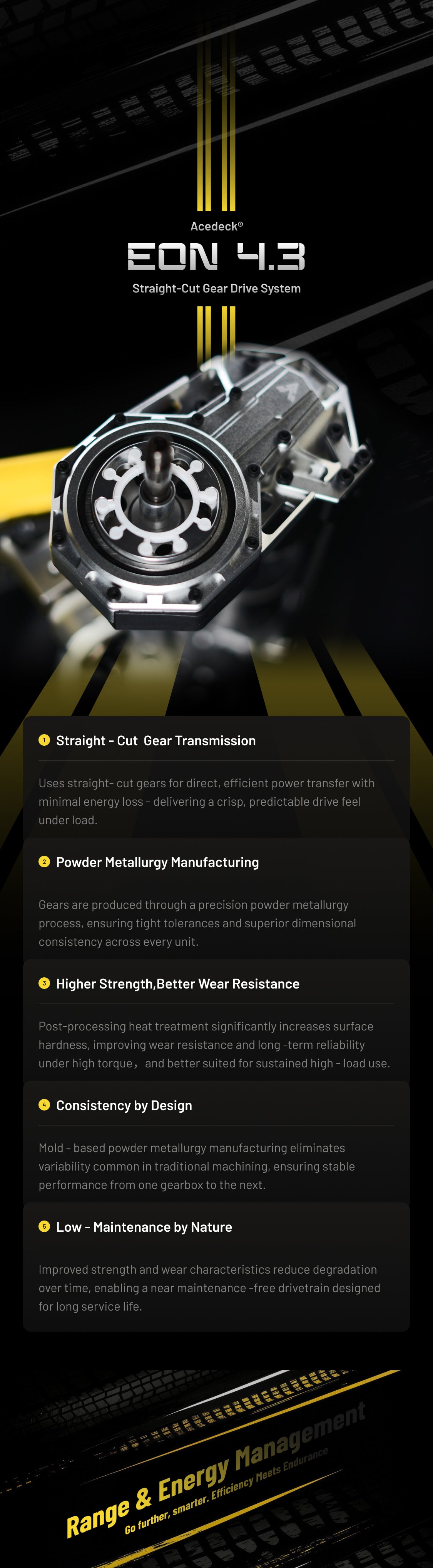

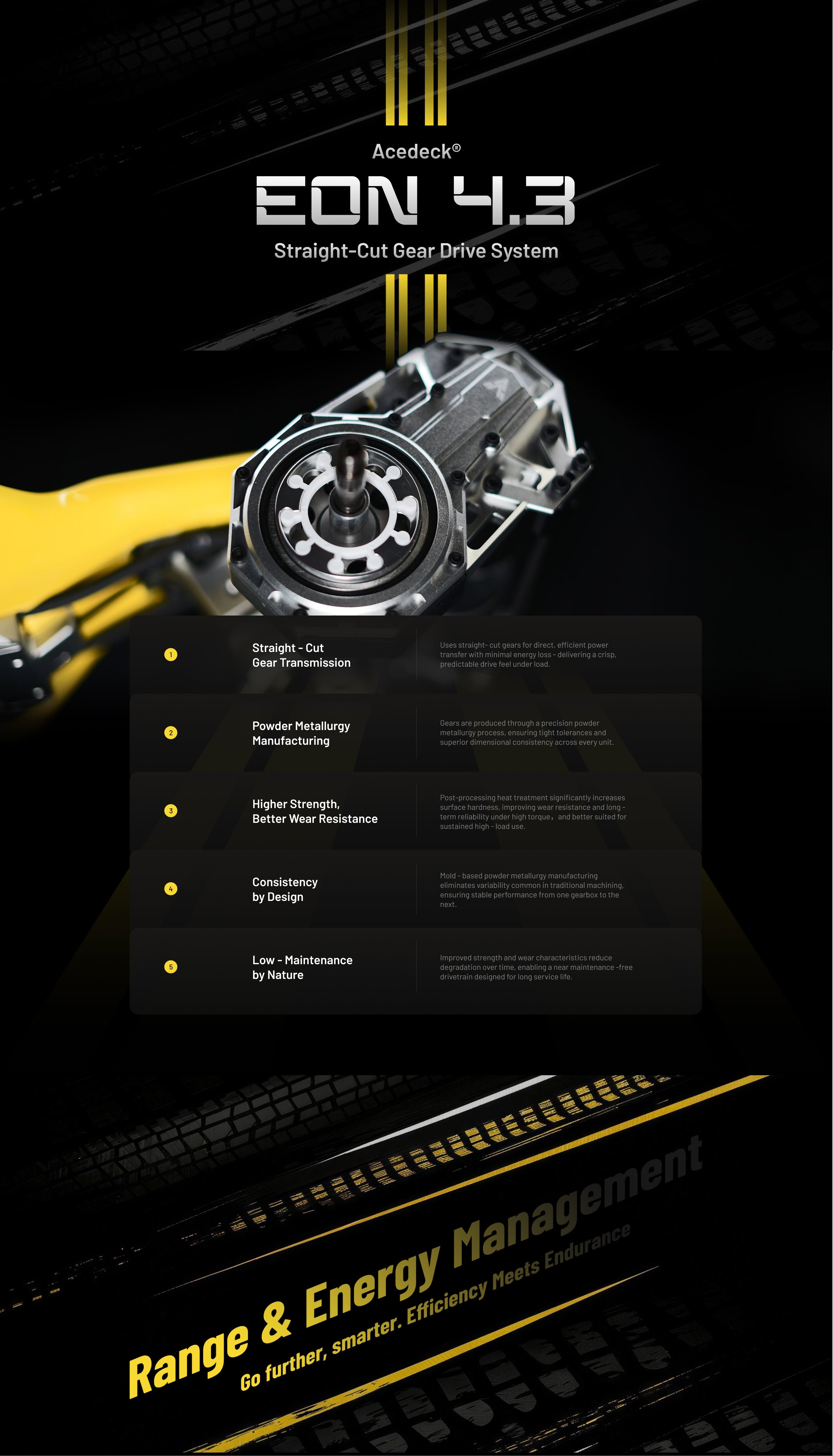

  • 【First-Ever In-House Developed】EON 4.3 Straight-Cut Gear Drive
    Straight-cut gears ensure direct, efficient power transfer with crisp, predictable response. Robust drivetrain construction minimizes wear and reduces ongoing maintenance.
  • Ultimate endurance with high-quality and high-capacity Samsung 50S battery cells
    2WD Racing: 18S4P Samsung 50S, Up to 60km/37miles
    4WD Performance: 14S4P Samsung 50S, Up to 40km/25miles
  • Up to 70kph/43mph Top Speed
  • One-Piece Carbon Fiber Deck
    Ultra-rigid Lightning Yellow carbon deck maximizes power transfer and ride precision.

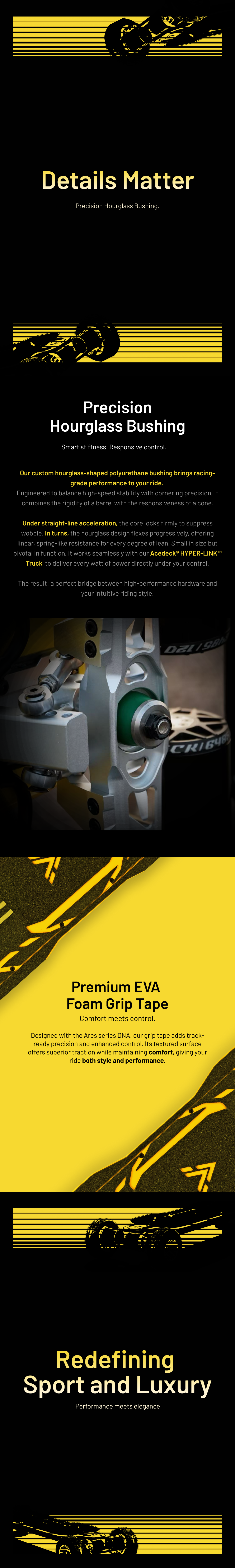

  • 【First-Ever In-House Developed】2WD Racing Hourglass Bushings
    Custom polyurethane bushings deliver progressive, race-grade steering control.

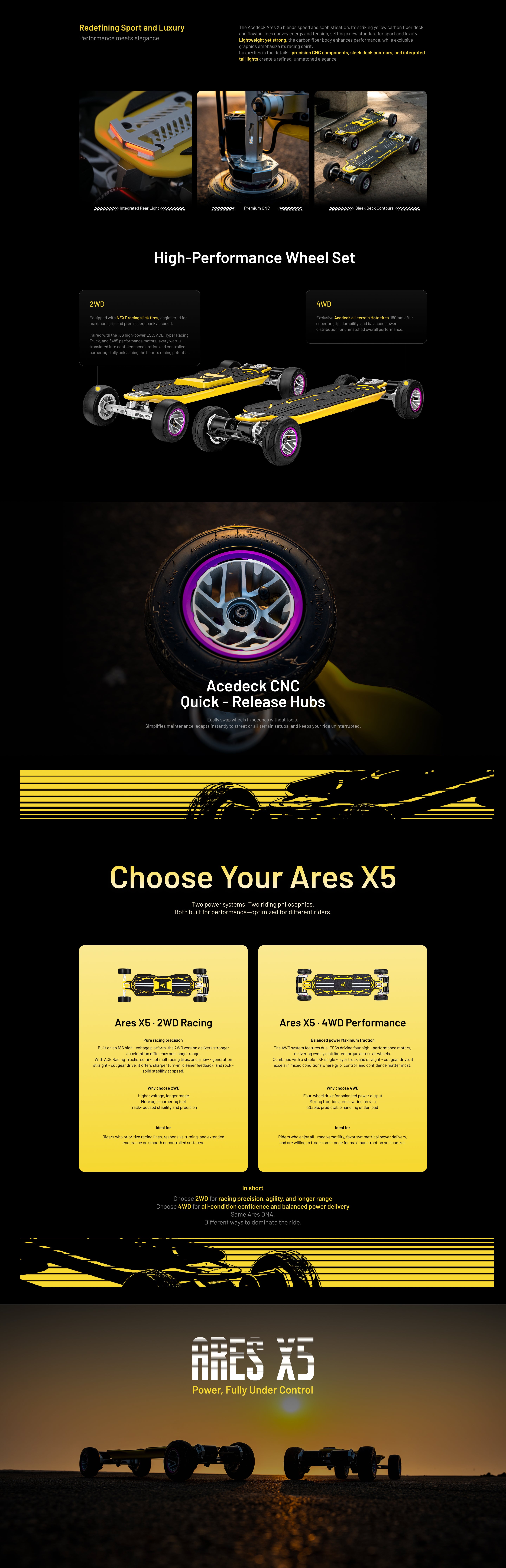

  • CNC Quick-Release Hubs
    Precision-machined hubs allow fast wheel changes without compromising strength.

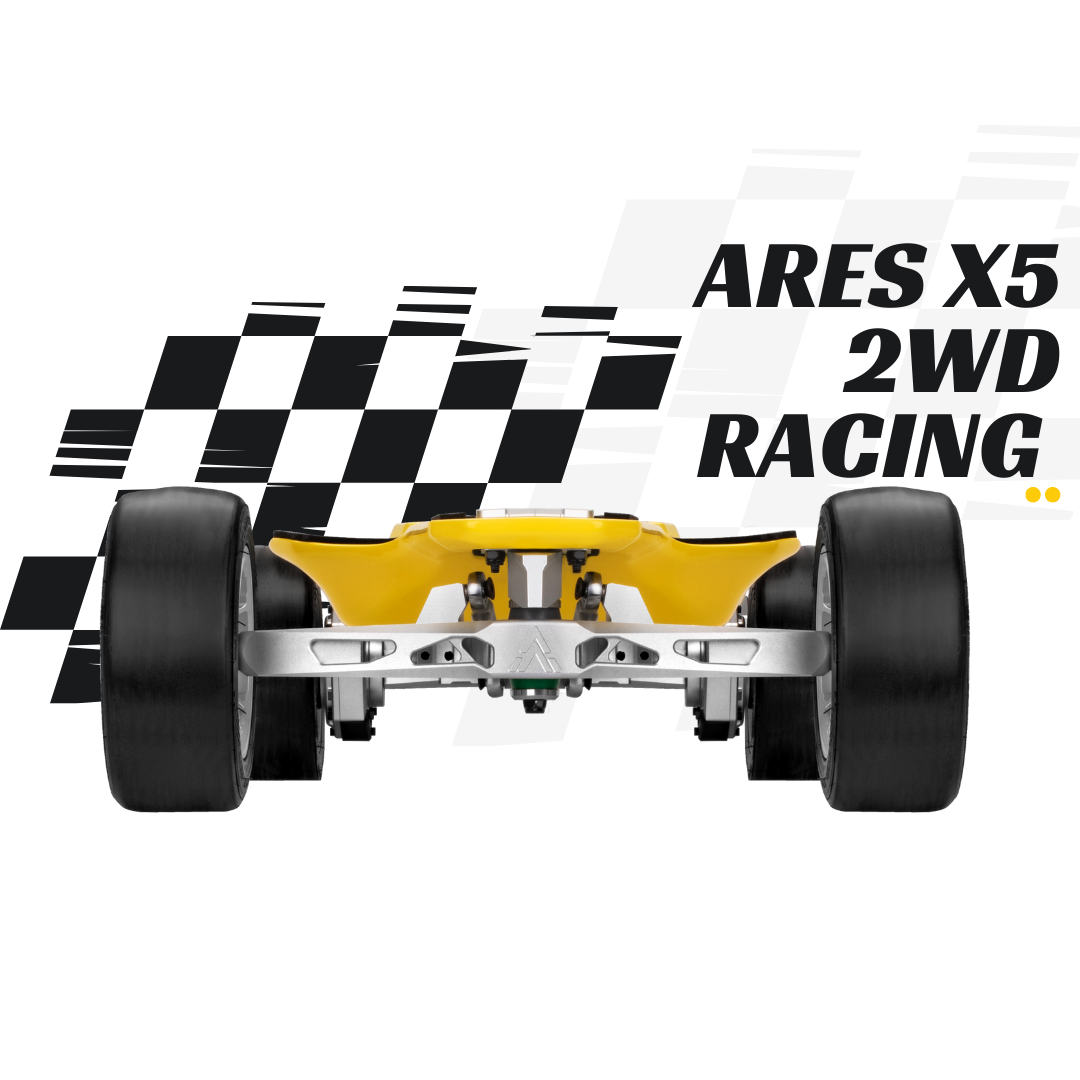

  • Wheels: 2WD Racing Setup
    NEXT slick tires and 18S power unleash sharp acceleration and precise road feedback.
    Wheels: 4WD All-Terrain Setup
    180 mm Acedeck HOTA tires provide balanced grip, durability, and all-condition performance.
  • Integrated Front & Tail Light System for nighttime rides.
  • Acedeck premium CNC materials, unbreakable
  • Max load: 150kg
