— RS1 Positioning
Track performance,
Road soul.
In the world of performance machines, the ones worth remembering are built for a singular purpose—then refined to conquer everything else. The RS1 is our statement. A board that was born on the track and bred for the road.
"This isn't just an electric racing board. It's the one you reach for when you want to feel what it's like to own the road."
12kW
Peak Output
16HP
Horsepower
18S
High-Voltage Platform
100km
Range
16
01 — Power System
16HP
At Your
Fingertips.
Zero Hesitation.
The RS1 isn't just an electric skateboard; it's a high-performance machine built on a massive 18S high-voltage platform. With 160A bus current and 240A phase current, we've unlocked 12kW of peak power. That's 16 horsepower—more than enough to dominate any incline and leave the competition in the dust.
Experience the V8 of electric carving.
Pro-Level Control, No Compromises.
We've rewritten the rules of engagement with our all-new FOC algorithm. For the purists, we've pre-set a Pure Current Control Mode in your remote—PRO riders can easily switch to SPEED MODE to bridge the gap between production boards and DIY beasts. Every millimeter of throttle movement translates into instant, raw torque.
In addition, all ACEDECK models equipped with the 18S ESC feature a built-in reverse mode, which can be activated through the remote’s advanced settings. This makes maneuvering in tight spaces easier and adds extra convenience in everyday riding situations.
We've rewritten the rules of engagement with our all-new FOC algorithm. For the purists, we've pre-set a Pure Current Control Mode in your remote—PRO riders can easily switch to SPEED MODE to bridge the gap between production boards and DIY beasts. Every millimeter of throttle movement translates into instant, raw torque.
In addition, all ACEDECK models equipped with the 18S ESC feature a built-in reverse mode, which can be activated through the remote’s advanced settings. This makes maneuvering in tight spaces easier and adds extra convenience in everyday riding situations.
Bus Current
160
A
Phase Current
240
A
Voltage Platform
18
S
Peak Power
12
kW
Peak Horsepower
16
HP
FOC Algorithm
NEW GEN
Pure Current Control Mode& Reverse Function Available
VESC Function
02 — Reliability
Engineering
Redundancy.
Built to Outlast.
Built to take what you throw at it. And then some.
Confidence in every mile.
Performance is only as good as the reliability behind it. The RS1 powertrain is designed with an intentional margin of safety—what we call engineering redundancy. Every component is over-specced to ensure that even at the edge of performance, you are nowhere near the edge of the board's capability.
Performance is only as good as the reliability behind it. The RS1 powertrain is designed with an intentional margin of safety—what we call engineering redundancy. Every component is over-specced to ensure that even at the edge of performance, you are nowhere near the edge of the board's capability.

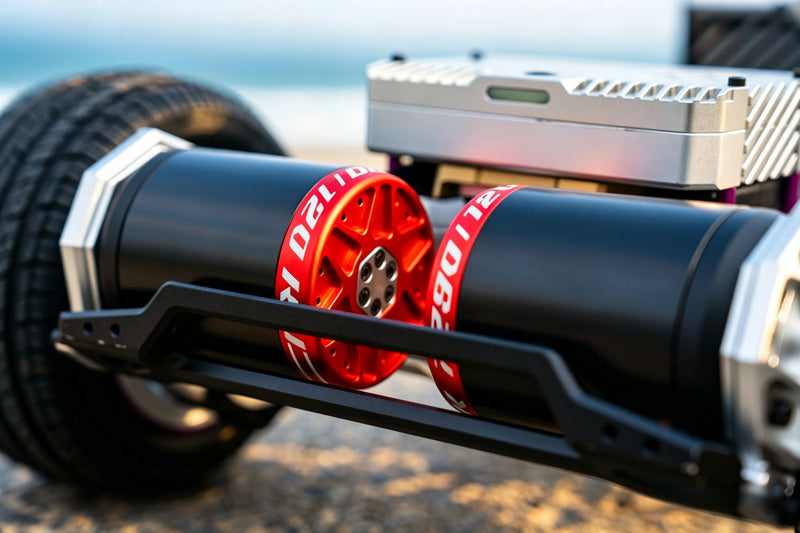

Acedeck® VORTEX™ Motor-Fully in-house developed.
Next-Gen High-Torque 7290 Motors.
Where peak performance meets endurance. Designed for high-performance electric skateboards, the 7290 motor balances extreme torque with mechanical durability—a powertrain that handles the stress of uphill climbs and rapid acceleration without breaking a sweat.
Next-Gen High-Torque 7290 Motors.
Where peak performance meets endurance. Designed for high-performance electric skateboards, the 7290 motor balances extreme torque with mechanical durability—a powertrain that handles the stress of uphill climbs and rapid acceleration without breaking a sweat.
⬡
N48SH Magnetic Stability
Premium magnets ensure consistent torque and efficiency, even during demanding hill climbs.
⬡
Structural Precision
Six YFS high-strength screws secure the motor housing, eliminating play and ensuring long-term alignment.
⬡
High-Impact Alloy Shaft
A reinforced core designed to absorb road shock and resist torsional fatigue at peak loads.
⬡
Debris-Shielded Cooling
Custom internal ducts channel heat away while preventing sand and grit from entering the motor's vitals.
⬡
16HP Overhead
Engineered to handle massive power loads, providing a wide safety margin for every ride.
Stay fast. Stay cool.

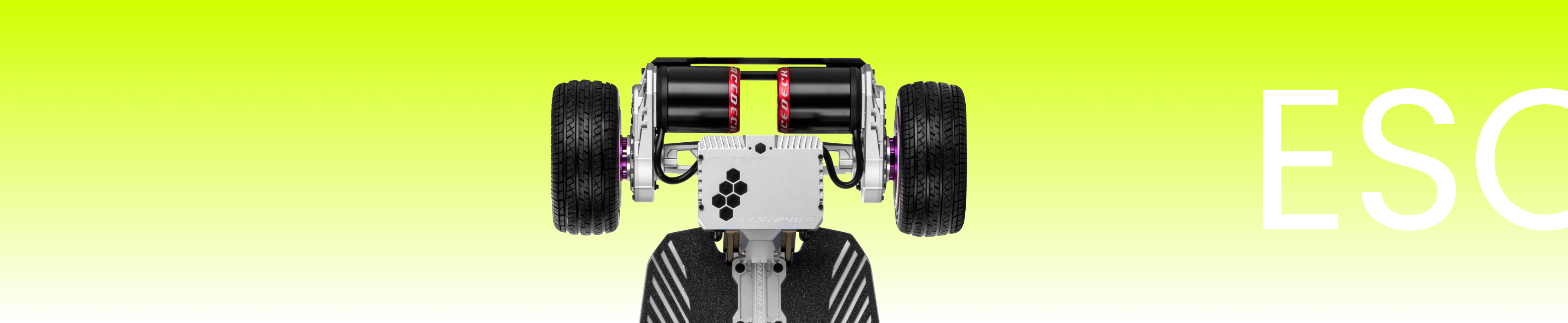

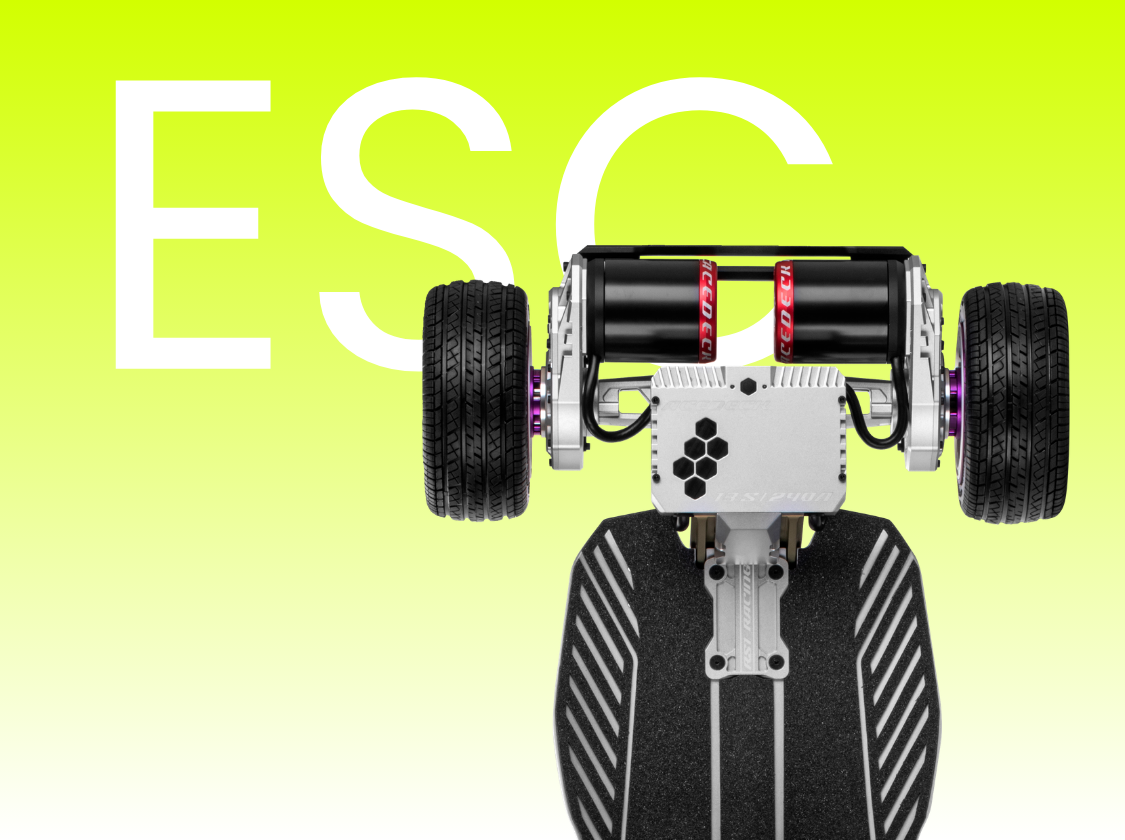

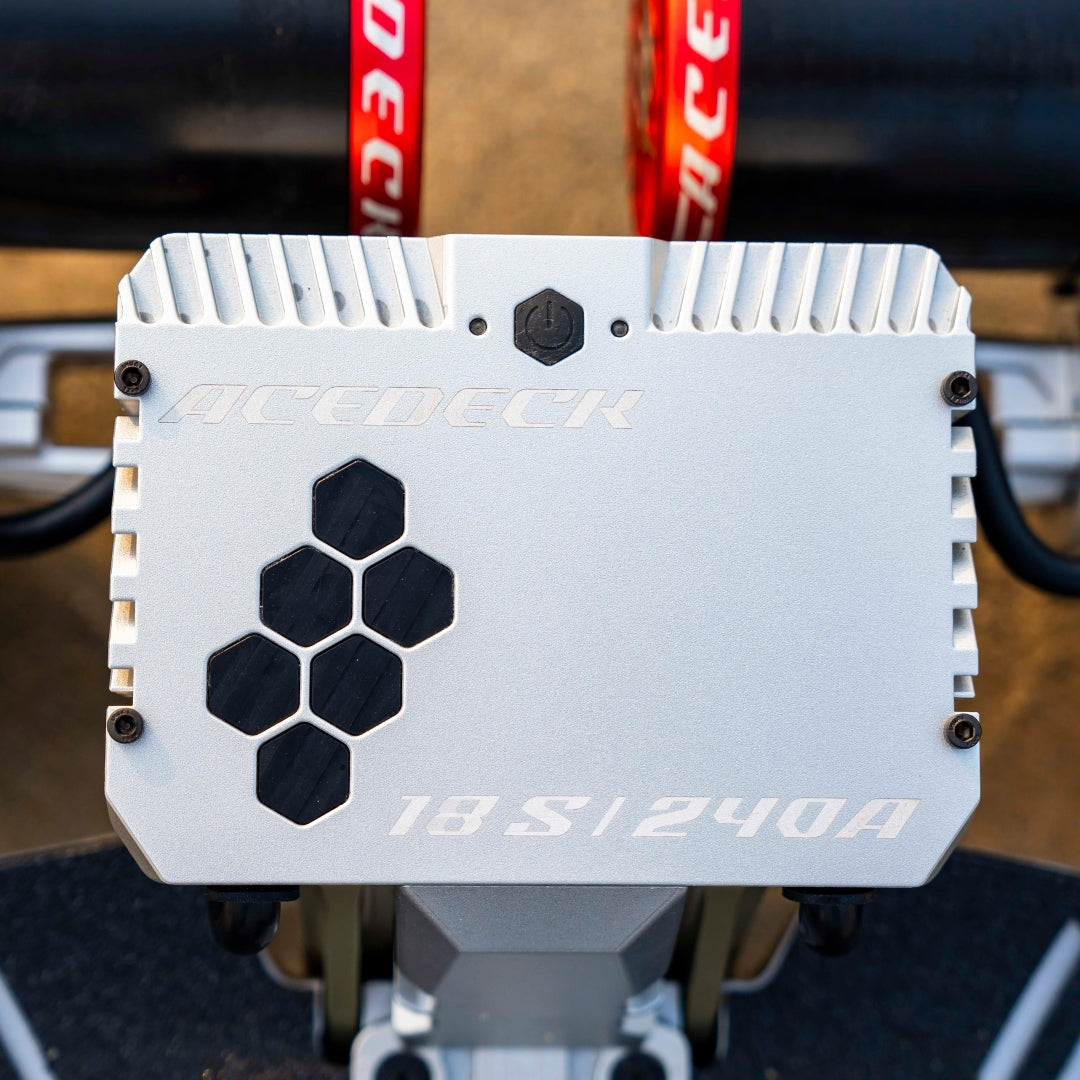

Advanced 18S ESC Thermal Management
The RS1 ESC is engineered to manage heat as effectively as it manages power. By maximizing surface area, we ensure your board delivers consistent speed from the first mile to the last.
Integrated Potting Heatsink
Combines a solid thermal mass with precision-milled fins for rapid heat dissipation.
Sustained Performance
Optimized thermal conductivity means the system maintains high power output longer, significantly reducing the risk of overheating or speed drops.
Reliable Power Delivery
Designed for riders who demand continuous performance during long-distance or high-intensity sessions.
Integrated Potting Heatsink
Combines a solid thermal mass with precision-milled fins for rapid heat dissipation.
Sustained Performance
Optimized thermal conductivity means the system maintains high power output longer, significantly reducing the risk of overheating or speed drops.
Reliable Power Delivery
Designed for riders who demand continuous performance during long-distance or high-intensity sessions.

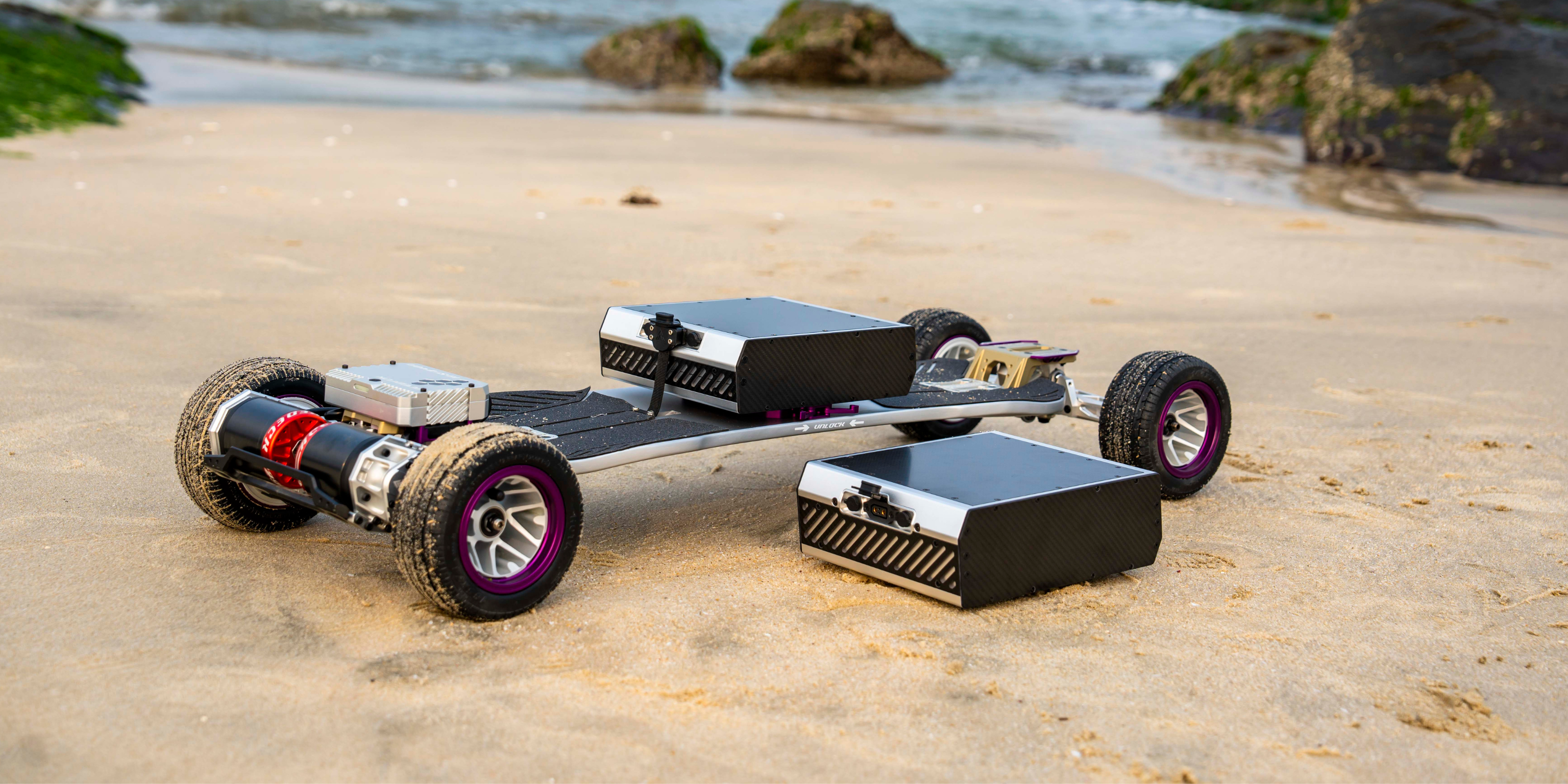

Introducing

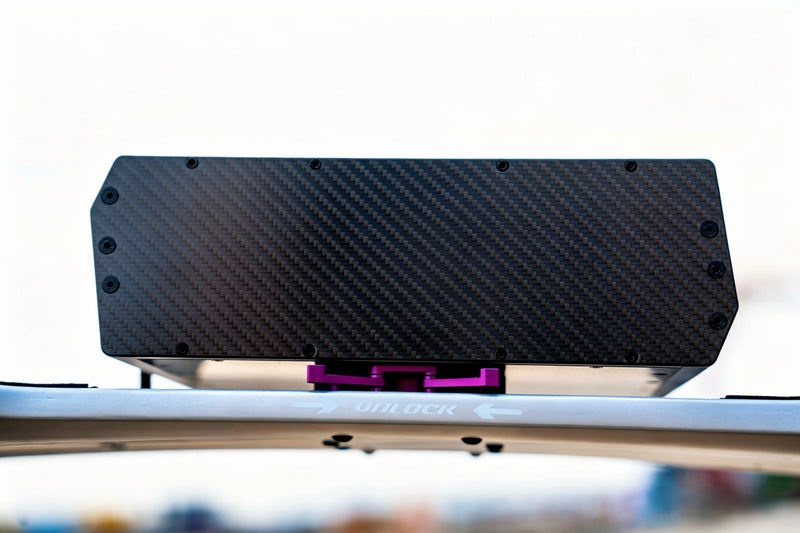

Acedeck® Z-Quick-Release Battery System™
03 — Modular Energy
Swap.
Don't Stop.
Range anxiety is officially a thing of the past.
30
seconds to full power.
We believe the ride should only end when you want it to. The RS1 introduces a modular power philosophy that treats energy like a tool—swappable, scalable, and relentlessly efficient. Forget the wait. We spent 18 months and over a dozen design iterations to perfect a mechanical quick-swap system that feels like a professional pit stop. Built with aerospace-grade 7075 alloy, the latch is as secure as it is fast.
DUAL
battery solutions.
One Board. Two Souls. Choose your range. Choose your performance.Whether you’re planning an all-day cross-country trek or a high-speed track session, the RS1 adapts to your mission. Two distinct battery pack, one seamless interface.
Standard — Included

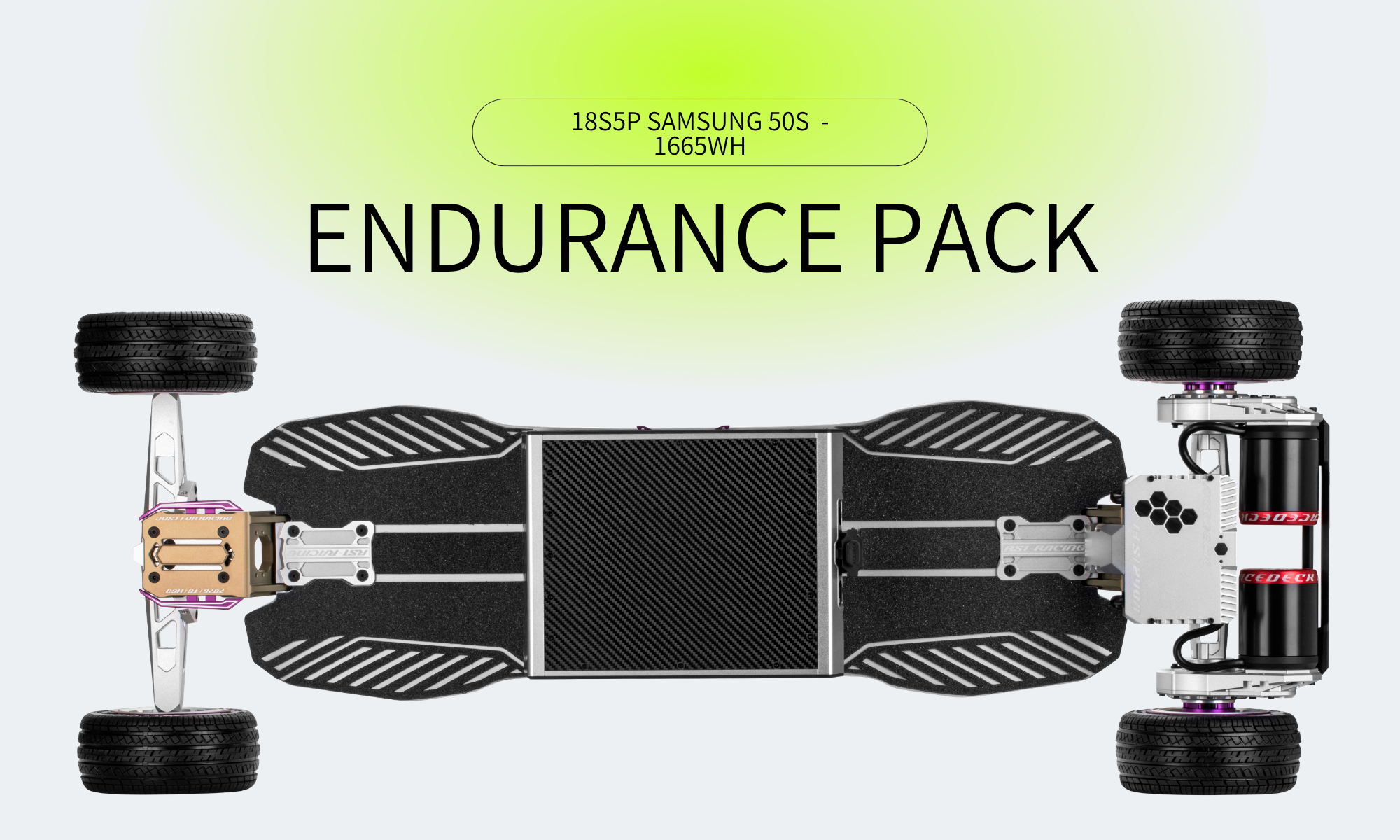

The Endurance Pack
1665Wh
Up to 100km Range
60kg rider · 20 km/h avg · 18S 5P Samsung 50S
- ① Go further. Way further.
- ② 1665Wh of Samsung 50S cells in an 18S5P configuration.
- ③ 70+ km Real-World Range. Tested with a 70kg rider at a sustained 35km/h.
- ④ For weekend adventures and all-day sessions.
Optional Upgrade

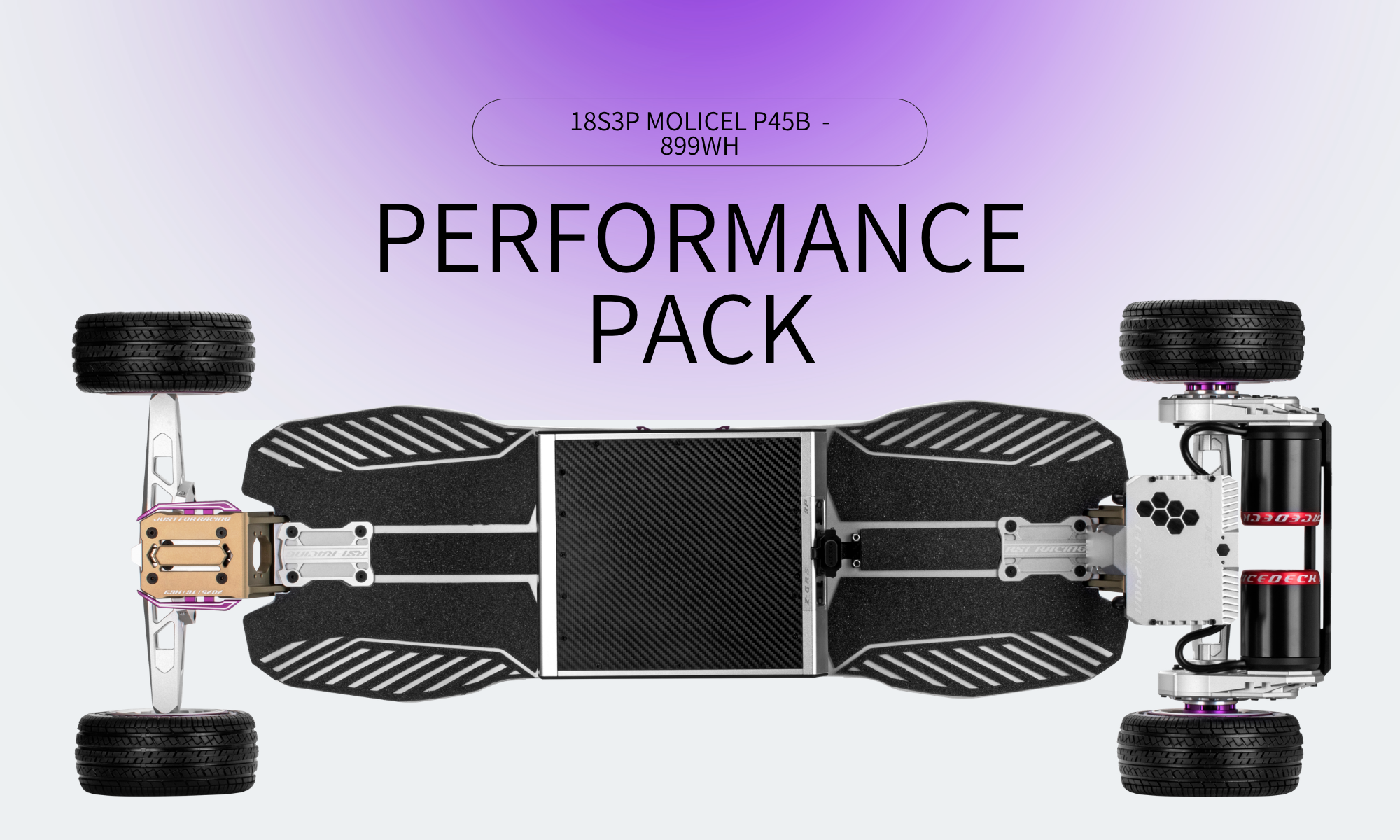

The Performance Pack
899Wh
Track Ready
18S 3P Molicel P45B · Lightweight · Competition fast-swap
- ① Lighter. Punchier. Race-ready.
- ② 899Wh of Molicel P45B cells in an 18S3P configuration.
- ③ Weight-Optimized. Designed for agility, high-discharge bursts, and rapid laps.
- ④ When every gram matters and every second counts.
◈
Pit-Stop Speed
Change your battery in seconds. No tools, no struggle. You'll be back on the road before your coffee gets cold.
◈
High-Current Architecture
Custom heavy-duty terminals handle massive 18S current flow without heat buildup or performance degradation.
◈
Safety-First BMS
Intelligent BMS keeps connectors "cold" until fully seated, eliminating sparks and short-circuit risks completely.
The RS1 eliminates the "charging wall." By decoupling the energy source from the board, we've given you the freedom to ride indefinitely.
Swap, don't stop.

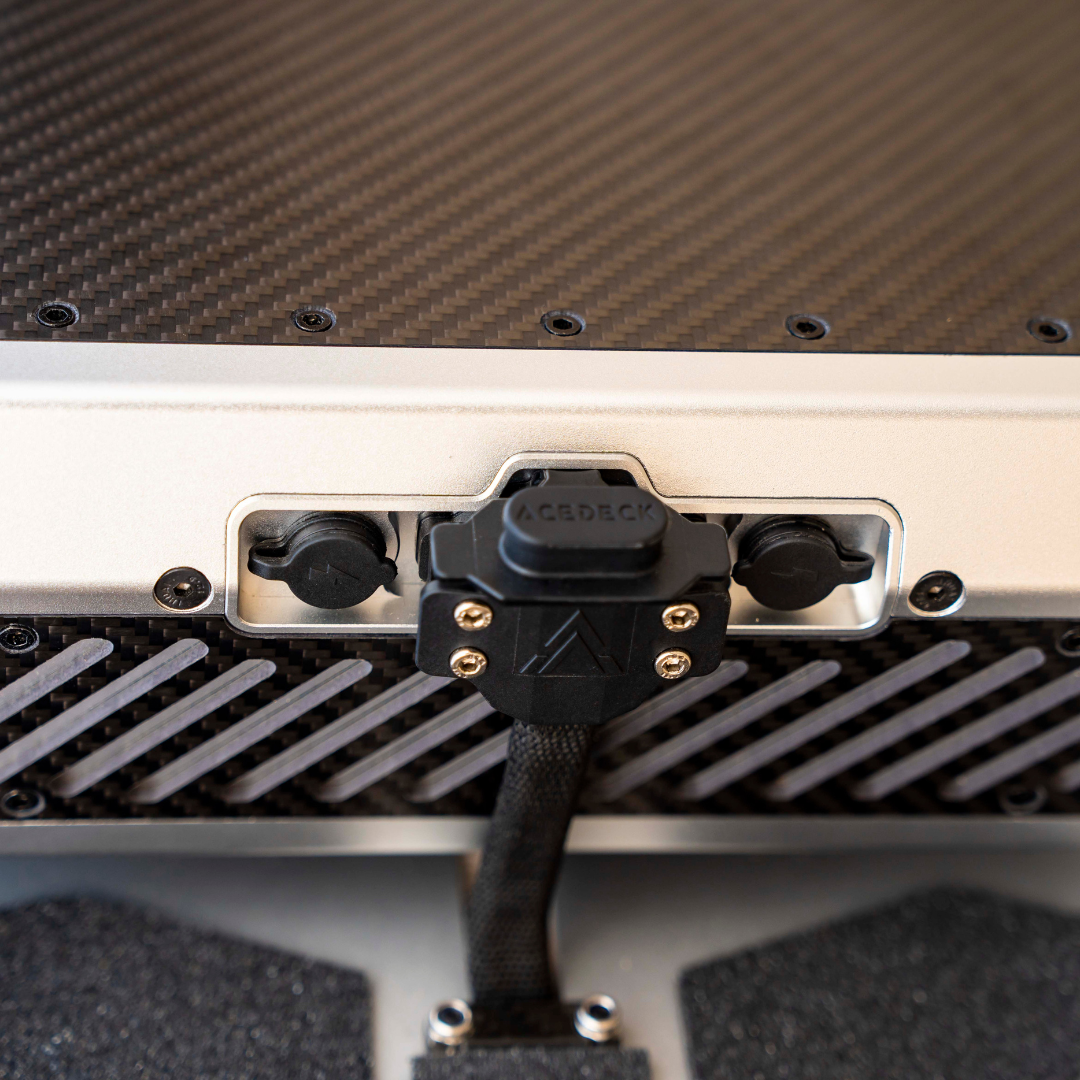

Fast-Charging System
Designed for Track Rhythm. Less waiting. More laps.
75.6V
|
7.5A
567W
Dual charging ports
reserved for rapid energy replenishment during race sessions
20A
Battery protection system
supports up to 20A charging current
04 — Ride Dynamics
Ride
as One.
Ultra-responsive handling and composed stability for a seamless connection with every carve.

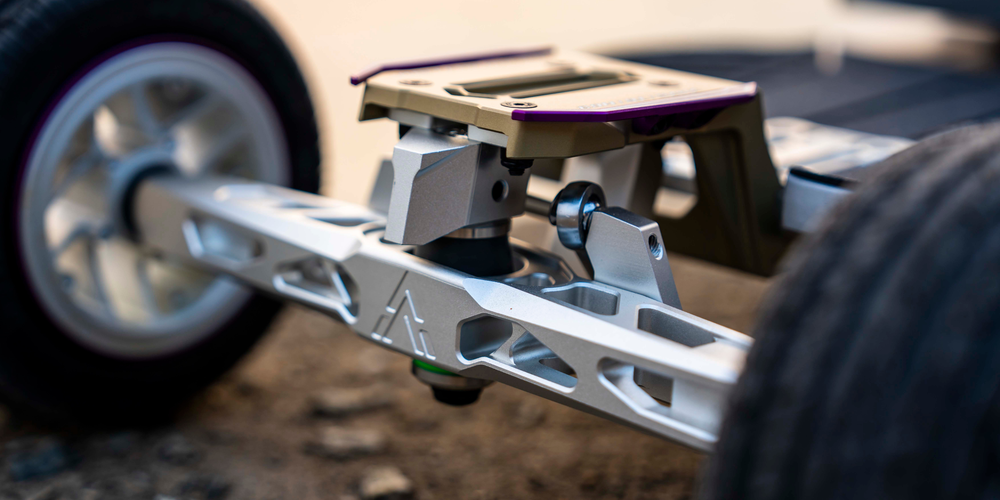

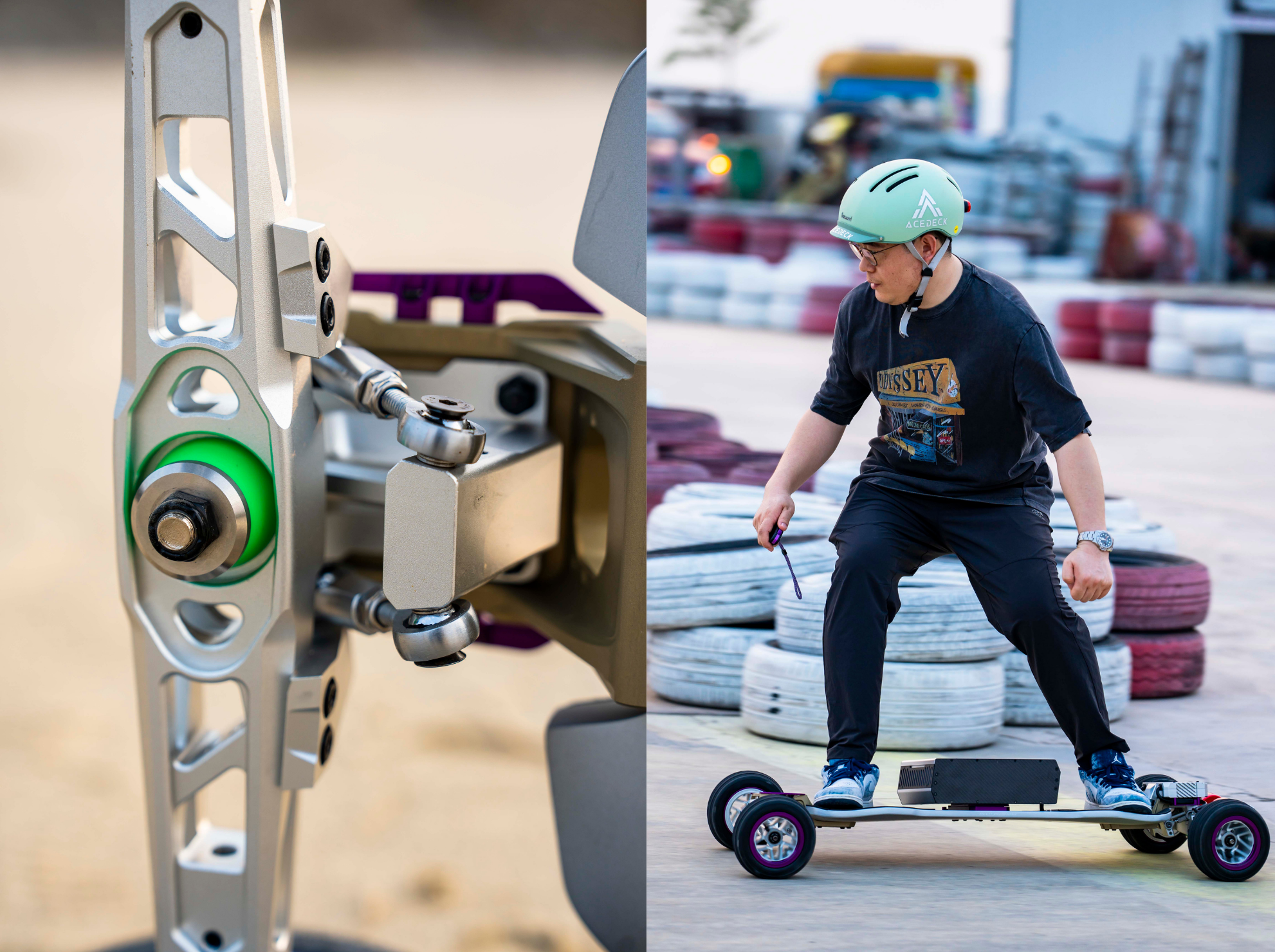

Acedeck® Hyper-Link™ Truck
No slop. No wobble.
Just razor-sharp control.
What is Acedeck® Hyper-Link™ Truck?
A multi-link system to ensure precise steering accuracy, allowing for more accurate control during each turn.
A multi-link system to ensure precise steering accuracy, allowing for more accurate control during each turn.
The result:
— Effective suppression of high-speed speed wobble
— Predictable and controllable behavior during emergency lane changes
— The confidence to push deeper into the limit
After 12+ months of validation and repeated testing, our engineers finalized the Acedeck® Hyper-Link™ Truck—a racing chassis philosophy, not just a component.
50°
Front Truck
Maximizes steering agility and carve response at lower speeds
30°
Rear Truck
High-speed stability — suppresses death wobble at full sprint
Asymmetric geometry: front handles agility, rear handles stability. Together, they eradicate speed wobble.
Manufacturing Details & Technical Notes
Acedeck® Hyper-Link™ Truck
Truck main body
Cold-forged 6061 aluminum, extensively CNC-machined to reduce weight without compromising strength
Axles & kingpins
Forged alloy steel, precision-turned and ground to ensure accuracy
Patented vertical bushing structure
- Provides stable support with optimal flexibility
- Easy bushing replacement
- Compatible only with tall-style bushings (Riptide Tall Barrel specification)
- Easy bushing replacement
- Compatible only with tall-style bushings (Riptide Tall Barrel specification)
Rod-end bearings
High-hardness chromoly steel with anti-corrosion treatment, eliminating play and looseness
Fixed link lengths
- Front and rear geometry locked using dedicated jigs
- User adjustment not recommended
- Standard replacement links available from Acedeck (three lengths, three mounting positions)
- User adjustment not recommended
- Standard replacement links available from Acedeck (three lengths, three mounting positions)
Custom fasteners
- Taiwan FangSheng custom screws
- Installed to 16 Nm torque
- Secured with Loctite 243
- Removal requires heating to approximately 200°C
- Installed to 16 Nm torque
- Secured with Loctite 243
- Removal requires heating to approximately 200°C

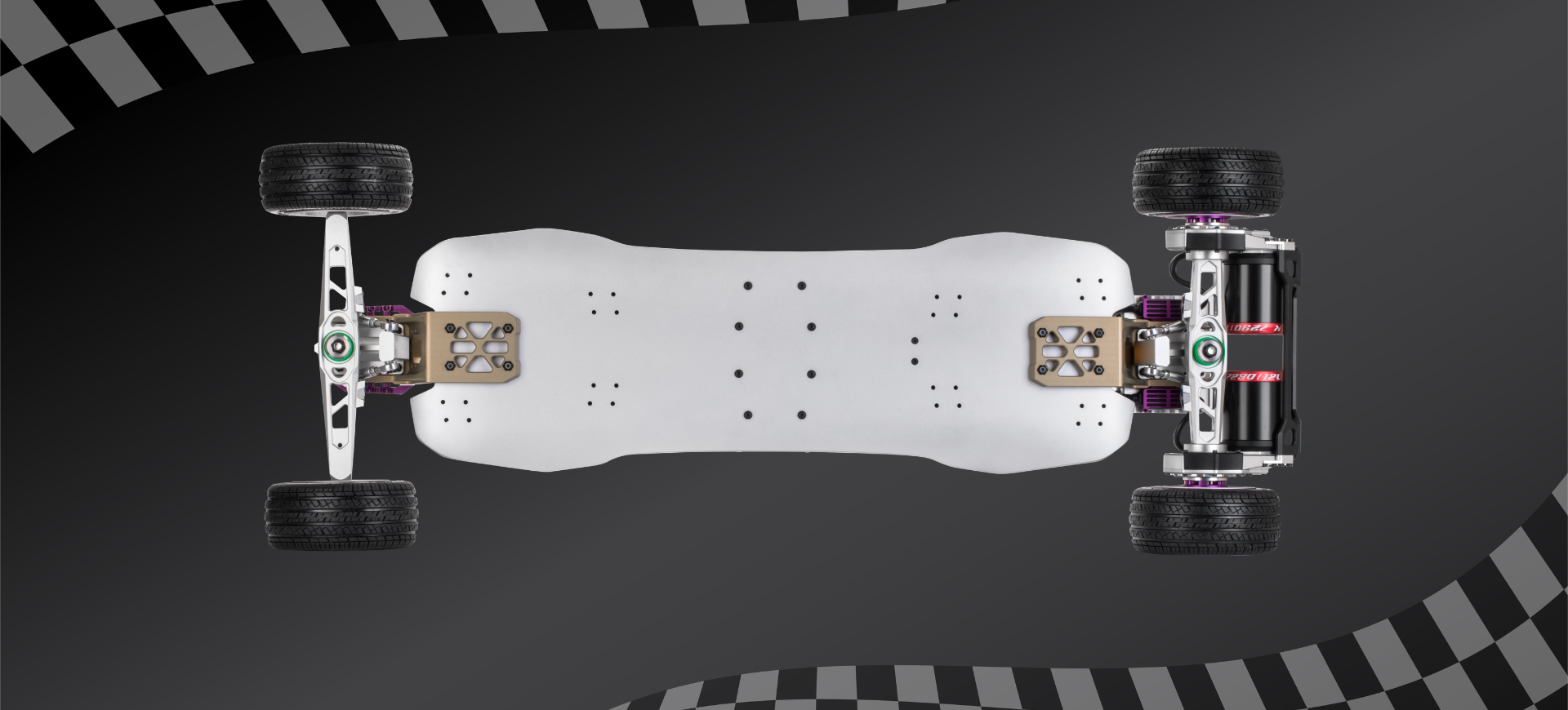

RS1 Deck design
Stay Low. Stay Locked In.
Lower center of gravity. Higher confidence.
The RS1 redefines board control by dropping the deck to a remarkable 92mm off the ground and using a CNC-machined 7075-T6 aluminum drop-down chassis. By aligning the deck with the truck mounting line and incorporating a wider, aggressive concave deck, it creates a true rider cockpit that locks your feet in. Whether you are carving at high speeds or braking hard, the RS1 eliminates twitchiness, delivering a planted, ultra-stable ride that gives you the confidence to lean deeper into every turn.
Pre-drilled bingding holes
The Drop-Down Chassis
The drop-down chassis is fully CNC-machined from a single block of 7075-T6 aluminum, combining exceptional rigidity with functional durability.
Wide Deck
The expansive deck offers ample space to lock in your most natural, high-control stance.
05 — The New Geardrive System-ECHELON CNC Gear Drive
Instant Throttle. Zero Lag.
Power doesn’t wait. Neither do you.
The RS1’s helical gear drive delivers millisecond-level response, slamming torque directly to the ground the instant you touch the throttle or brake. Engineered from high-strength Japanese powder metallurgy with a dual-idler design, this heavy-duty architecture handles peak torque spikes with zero efficiency loss. Plus, with a configurable gear ratio (3.7–4.3), it instantly adapts from 125mm to 200mm wheels—delivering smoother, stronger, and more immediate power in any environment.
3.7–4.3
Configurable Gear Ratio
Instantly adjust powertrain geometry to fine-tune power delivery profiles.
125-200mm
Wheel Adaptability
Seamless compatibility from sleek street setups to rugged all-terrain setups.
Acedeck® RS1
King of Control.
In the world of performance machines, some are called the king of the road. They combine power, precision, and confidence in a way that makes every ride effortless. That's exactly what we built here.
This isn’t just an electric longboard. It’s the one you reach for when you want to feel what it’s like to own the road.
16
Horsepower
30s
Battery Swap
100
km Range
75kph/47mph
Top Speed

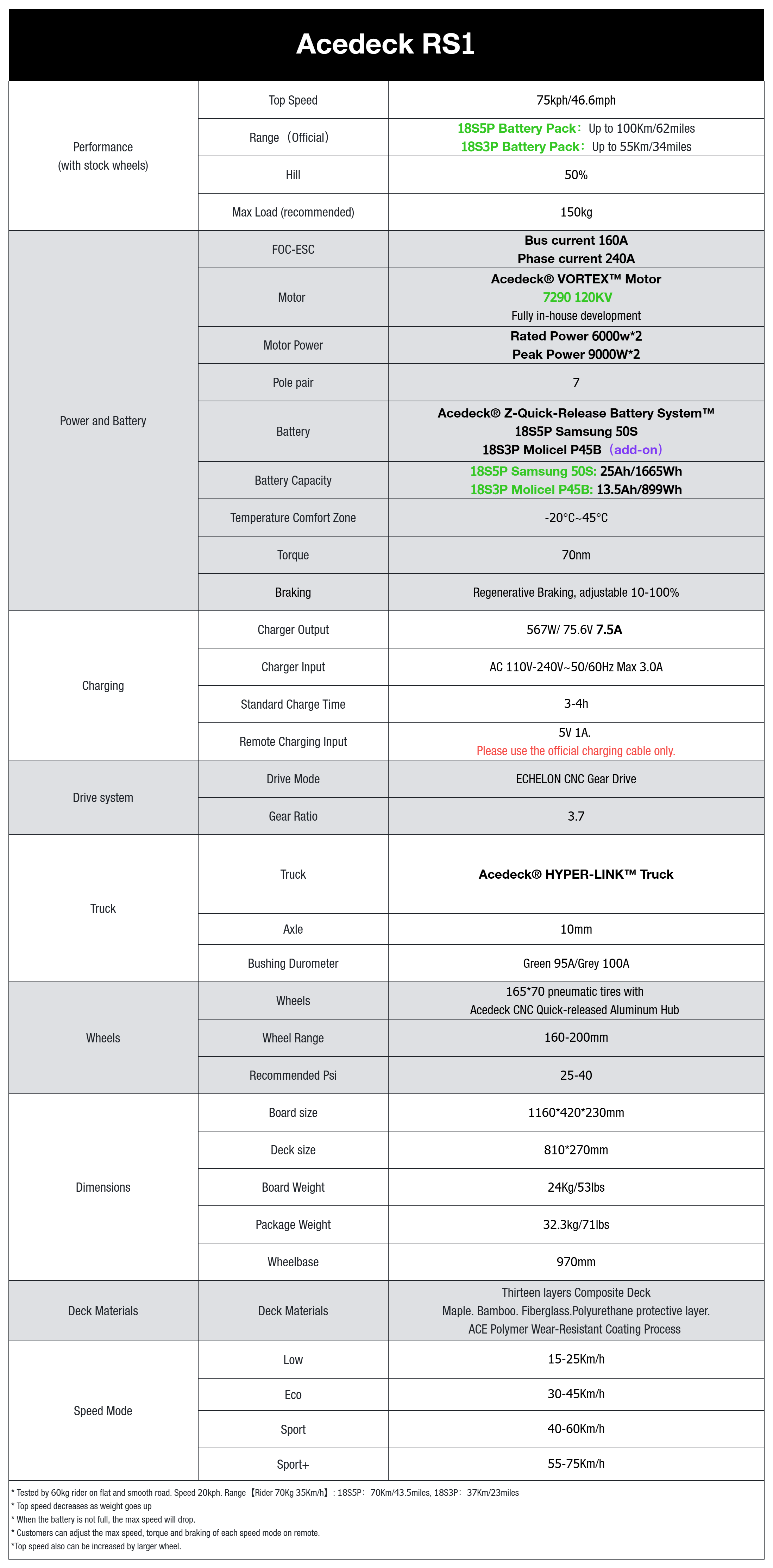

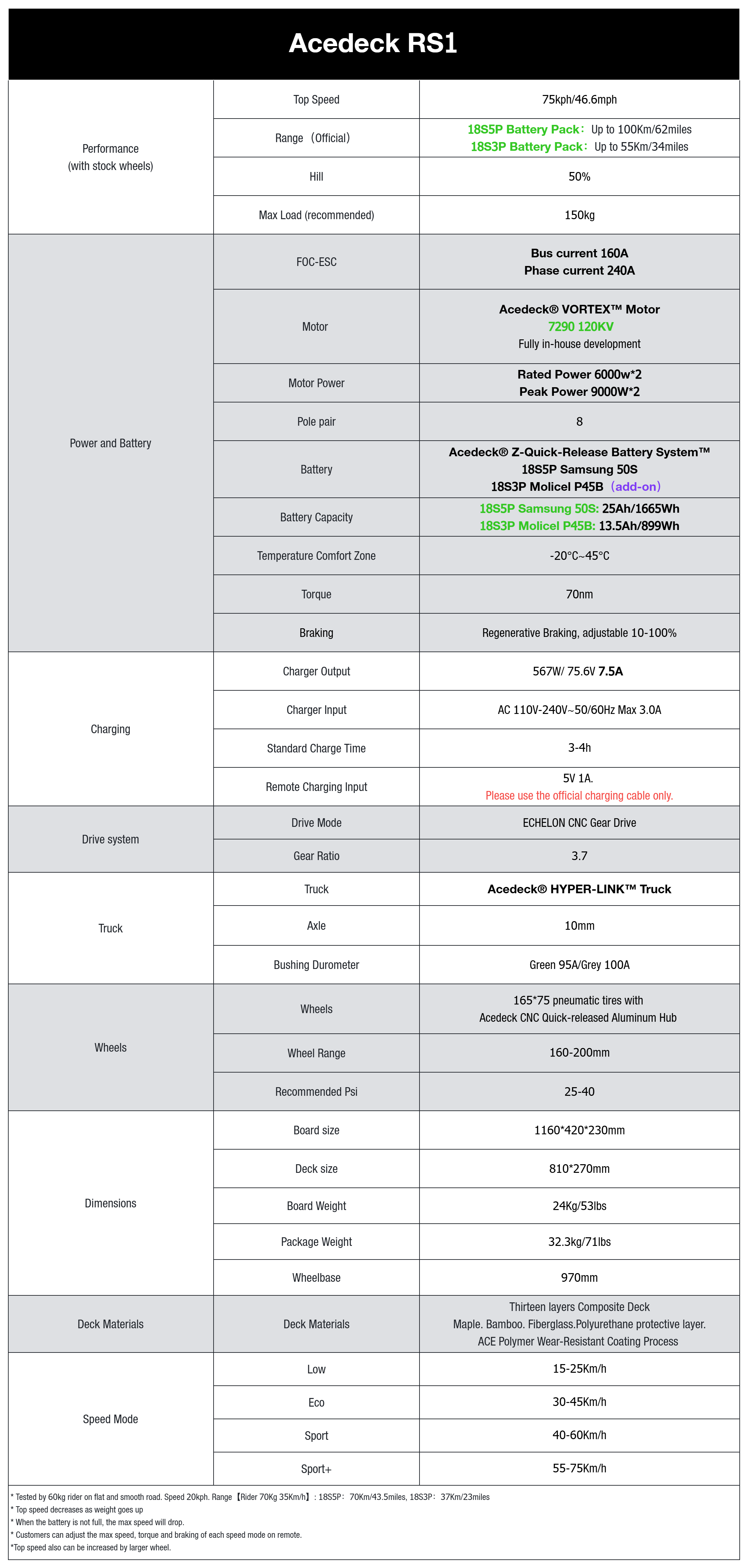

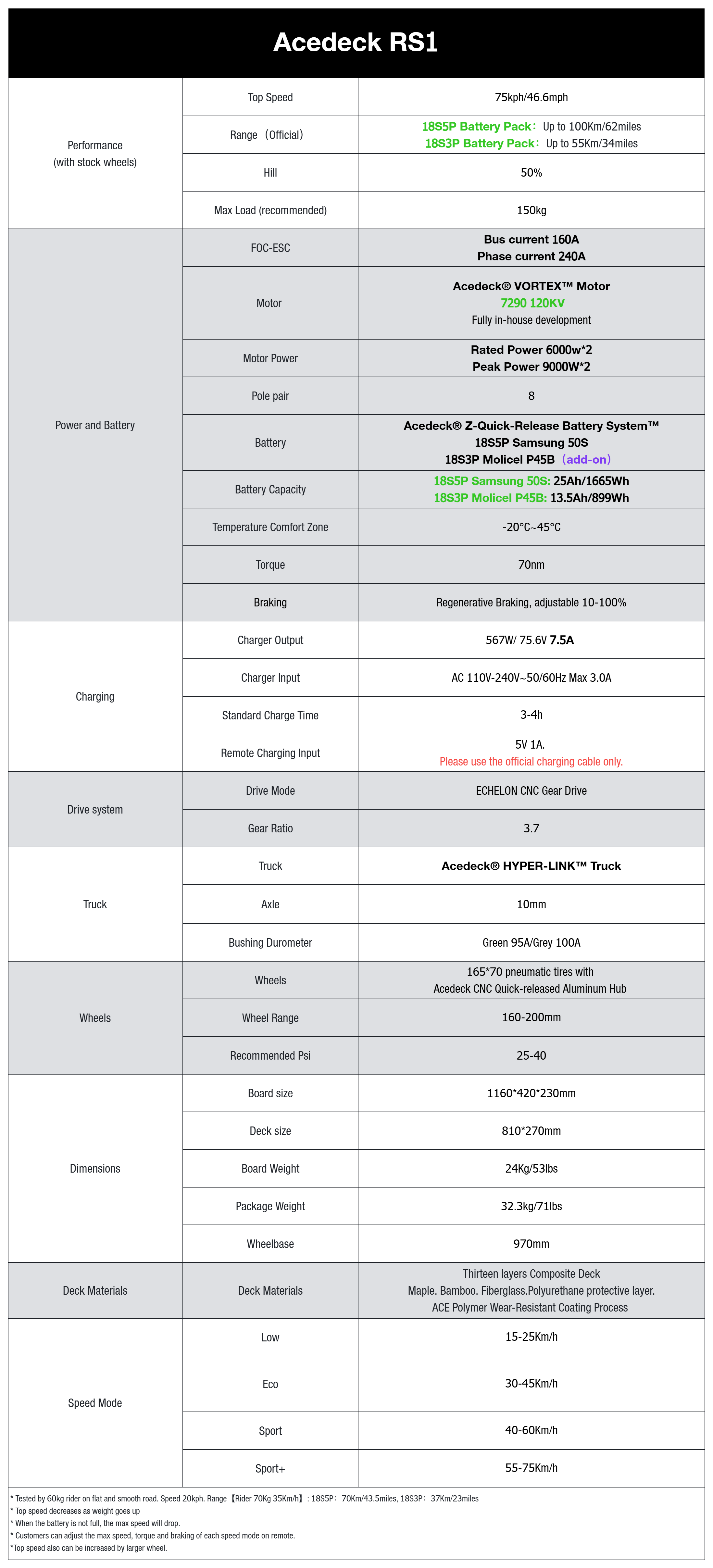

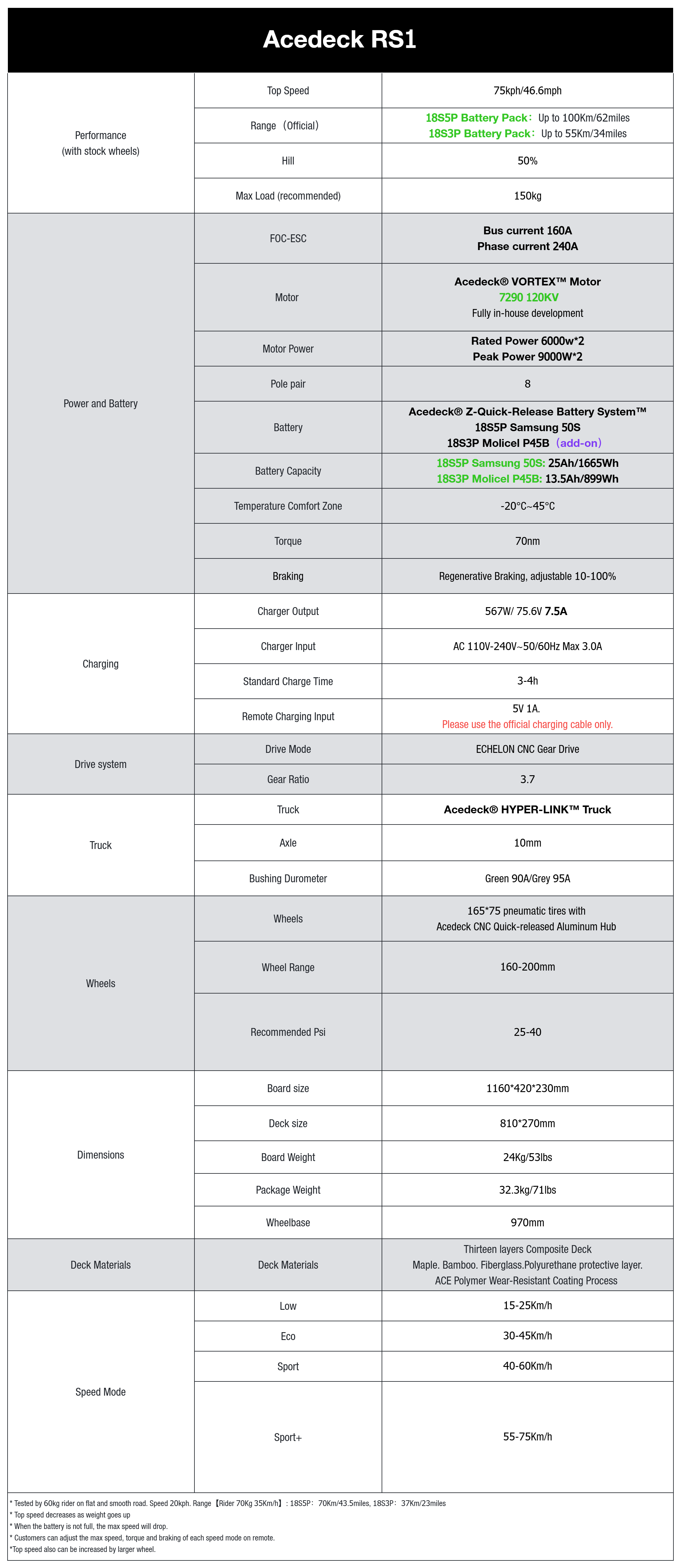

Full Specs
What's in the Box?
- Complete Board *1
- 165*75mm tires*4 +Acedeck Quick-Release hubs
- The new upgraded Remote Control (Black-purple) with USB Charging Cable *1
- Spare gear drive adapter*2
- 75.6V 7.5A Charger*1
- Quick Start Guide *1
- Acedeck Stickers *n
- T-Tool *1, L-Tool *1
- Hexagon Wrench Tool (2.5mm & 3mm&4mm) *1
- Screws *n
- Complete Board *1
- 165*75mm tires*4 +Acedeck Quick-Release hubs
- The new upgraded Remote Control (Black-purple) with USB Charging Cable *1
- Spare gear drive adapter*2
- 75.6V 7.5A Charger*1
- Quick Start Guide *1
- Acedeck Stickers *n
- T-Tool *1, L-Tool *1
- Hexagon Wrench Tool (2.5mm & 3mm&4mm) *1
- Screws *n
Acedeck® RS1 Electric Skateboard
Fast shipping
Sale price :
Ready. Set. RS1
Engineered for the track. Mastered for the road.
This isn't just an electric longboard. It's the one you reach for when you want to feel what it's like to own the road.
This isn't just an electric longboard. It's the one you reach for when you want to feel what it's like to own the road.
Product Focus:
01 / SWAPPABLE BATTERY & RANGE
- 18S High-Voltage Platform: Engineered for sustained, sag-free maximum power output.
- Z-Quick-Release Battery System™: Swap in 30 seconds. A professional pit-stop experience for continuous back-to-back sessions.
-
Dual Battery Configurations:
18S5P (Samsung 50S | 1665Wh): Cruising up to 100 km. Built for the weekend adventurers and all-day exploration.
18S3P (Molicel P45B | 899Wh): Weight-optimized for 55 km of raw agility, maximum discharge bursts, and rapid hot laps. - 567W Dual Fast-Charging: 75.6V / 7.5A system with dual charging ports. Double the efficiency, half the wait.
02 /【Fully In-House Developed】Acedeck® HYPER-LINK™ Truck
- Precision-tuned geometry delivers exceptional high-speed stability and confident cornering.
-
No slop. No wobble. Just razor-sharp control. A multi-link system to ensure precise steering accuracy, allowing for more accurate control during each turn.
-
【First-Ever In-House Developed】Racing Hourglass Bushings
Custom polyurethane bushings deliver progressive, race-grade steering control.
03 / POWER & PERFORMANCE
-
【First-Ever Fully In-House Developed】Acedeck® VORTEX™ Motor-7290
All-new in-house motor provides instant torque and sustained high-output performance. -
Customized 18S Advanced ESC Platform-240A
ACEDECK’s 18S system enables smoother power delivery and superior high-speed control.
04 / DECK
- Extended stance, deepened foot wells, and pre-drilled holes for foot straps.
- Pre-Drilled Binding Holes
- Premium Finish: Automotive-grade metallic silver coating with high scratch resistance.
05 / HUBS AND WHEELS
-
CNC Quick-Release Hubs
Precision-machined hubs allow fast wheel changes without compromising strength. -
All Terrain 165*75mm Hota Wheel Tire
With reinforced walls that withstand high pressure and prevent punctures, they also do well during hard carving. The tire maintains stability and can change shape according to the pressure applied, making it a versatile and reliable option.
Notice for Canadian Customers:
Due to local regulations regarding electric vehicle speeds, all orders shipped to Canada will include a customized remote programmed with a top speed limit of 25 km/h. Standard, unrestricted remotes are available for separate purchase if needed.
Acedeck® RS1 Electric Skateboard
Sale price$2,699.00 USD
Regular price$3,999.00 USD (/)
This product is rated 5.0 of 5.0 stars.
It has received 2 reviews.
Customer Reviews
Overall rating: 4.8 / 5 from 1186 reviews.

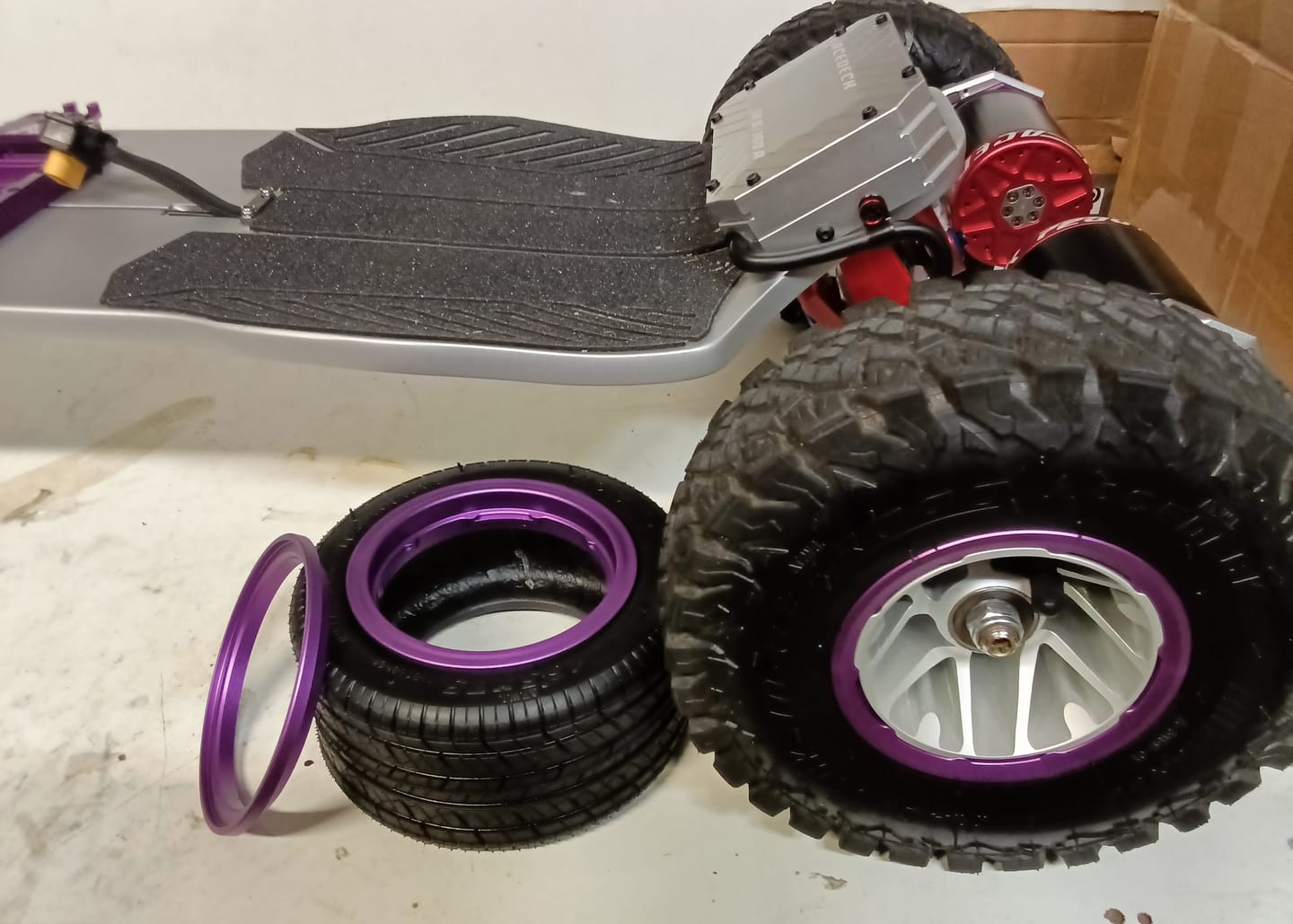

Can't wait to get these in my Nyx Z5. They look killer with the extra wide tyres. High quality item.

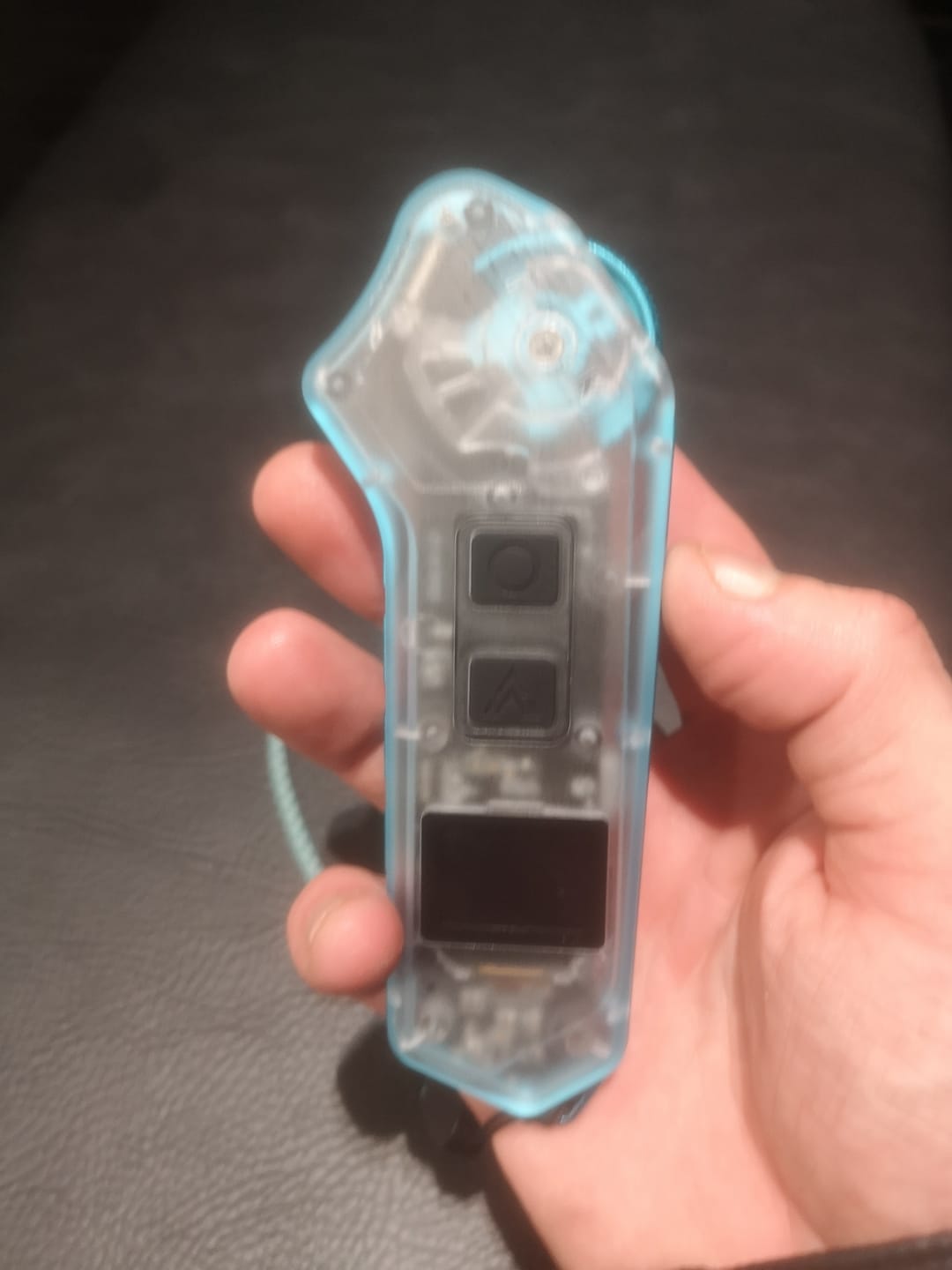

Lovely looking remote, fit nice in the hand and the thumbs wheel is super smooth.
Rides like a dream, still after a bunch of thousands of miles:)
Acedeck® Nomad N3 Electric Skateboard-Best All-terrain Long Range Electric Skateboard
These tyres look really well made, and the CNC parts are again, flawless. Acedeck quality.
Definitely love this board. It’s raw power !!
Acedeck® Nomad N1 Electric Skateboard-Best DKP All-terrain Electric Skateboard
So fun!!
Acedeck® Nomad N3 Electric Skateboard-Best All-terrain Long Range Electric Skateboard
Build and engineering quality is aerospace level. Great service from the Acedeck team. I'd happily buy another from Acedeck knowing they support their products and customers. Also, this board is mad crazy fun. I'd highly recommend.
Good consistent quality from acedeck.
Amazing board! Handles very well and better asethetic better looking and faster than the Linnpower Zephyr. Comes with all kinds of addons as well just a beast of a board!!! Great job guys!!!
Acedeck® Stella S3 Breeze Electric Longboard-Powerful& Long Range
Good quality and fast shipping 👌🏻
I love the board. It is super fast. Customer service is helping me replace a broken part which is extremely helpful. I have so much fun riding the Stella breeze!
Acedeck® Stella S3 Breeze Electric Longboard-Powerful& Long Range
Nice piece.
Very 👍
These adapters work get with the mad 125 wheels. 10/10.
Everything about this board is amazing! If you're considering it, I say pull the trigger. The DKP trucks are so different but an absolute blast!
Acedeck® Stella S3 Breeze Electric Longboard-Powerful& Long Range
Absolute game-changer! 🚀🔥 This board is fantastic. For a shortboard, it’s mind-blowing how it manages to be incredibly stable at high speeds while remaining super agile and easy to handle. The power and acceleration are top-tier—the torque is just insane and hits instantly. If you want a compact setup that feels like a rocket under your feet without sacrificing control, this is the one. Highly recommended!
Acedeck® Stella Blizzard-Most Powerful Portable Electric Skateboard & Shortboard
Geat. I had one ride with street wheels sadly they godt destroyed on first ride but I sendt one e-mail and they sent an pair off new wheels great service and the switch is a grat board i just wish the 85 mm wheels world have been 90 mm or 105 mm
Acedeck® Nomad Switch Electric Skateboard-Best 2in1 Electric Skateboard
This board is my favorite from Acedeck and I've had 5. The trucks, power, and deck are amazing.. The new colorway is fire and I love that Acedeck never stops improving and pushing the envelope. Great board and great company. 10/10.
Acedeck® Ares X5 Electric Skateboard-High Performance All-terrain/ Carbon Fiber
It's working as it should again. I had to replace it because the bearing in the middle gear broke.
Got the pro version. Super fan. Stable with speed but super nimble when slow. Great turning radius. Best shortboard on the market
Acedeck® Stella Blizzard-Most Powerful Portable Electric Skateboard & Shortboard
Love it rides like a dream
Acedeck® Nomad N1 Electric Skateboard-Best DKP All-terrain Electric Skateboard
Nomad Switch Pro (6475 motors and Samsung 50S battery). First of all, the board looks amazing 🤩 Build quality is top notch and you can clearly see the attention to detail in it's construction. As for the ride feel, it's really fun 😄 The combination of a front DKP truck and a rear TKP truck provides precise and agile movement for carving and confidence inspiring stability when traveling at high speeds or on damaged roads. The controls are precise and responsive with well tuned acceleration and braking curves and the performance is truly impressive 😁 The only downside is the weight and size, but that's the case for all boards with 14S4P batteries. If you're looking for a powerful, long range board the Nomad Switch is a great option!
Acedeck® Nomad Switch Electric Skateboard-Best 2in1 Electric Skateboard
Wow! I had high expectations, and was not disappointed! I spend the first 2 days cruising around my hood, getting a feel for it. Day 3 went for a 22 mile cruise, and by the end of that day I was SO more comfortable and confident on this thing. Seriously, one of the funnest things I've ever done. Stoked for many more miles of being stoked!
Acedeck® Nomad N1 Electric Skateboard-Best DKP All-terrain Electric Skateboard
What an absolute machine this is. Brutal acceleration and performance. Devours every terrain while injecting you with liquid adrenaline! Quality and refinement as always from the future.
Acedeck® Nyx Z5 Off-road Electric Skateboard-THE TOTAL OFF-ROAD WEAPON
Wonderful board. Very high quality, fast, and stable. Perfect size too.
Acedeck® Stella S3 Breeze Electric Longboard-Powerful& Long Range
In an esk8 world of heavy boards with tires, here is a skateboard! This thing rips! Has high strength Cnc trucks, stiff deck with good concave to really lock in your stance, powerful esc and excellent range samsung battery. Even comes with the classic boosted wheels. Oh and the remote is cnc and beautiful. So impressive! This is a board i don’t just like, I LOVE it. Can’t wait to get more acedeck boards! You guys are making some awesome stuff! Got my eye on the ares x3 next!
Acedeck® Stella Blizzard-Most Powerful Portable Electric Skateboard & Shortboard
Like the product keep up the good work.
Acedeck® Stella Blizzard-Most Powerful Portable Electric Skateboard & Shortboard
Thank you so much great board keep up the good work.
Acedeck® Nomad Switch Electric Skateboard-Best 2in1 Electric Skateboard
First things first, I love this board. So fun. It’s really surfy, effortless to glide around. Such a tight turning circle, and really comfortable! I’ve turned this into a mini 2-in-1 style board, the 85mm wheels for street cruising / hard carve and some 100mm rubber wheels for longer trips on mixed terrain. I just swap wheels! For reference, I’m 6ft, 180lb, and the size is about perfect. I like slower speed cruising, hard carve and manoeuvrability. I like the more compact size and light(er) weight and extending the wheelbase is a nice option. What else can I say, the range is amazing, it looks great, the board is a beautiful design and shape. I also think it’s a phenomenal deal and the new remote is beautiful. Get one, and enjoy 🙌🏻
Acedeck® Stella S3 Breeze Electric Longboard-Powerful& Long Range
Excellent ride with lots of power
The bindings made the nyx z1 come alive. I'm able to lean into the turns better then before go faster off road without worrying about my foot slipping out from under me. I recommend them to anyone who wants to take their esk8 riding to the next level. I'm going to add bindings to my Ares x5 when I get it.
Great unboxing, super smooth control. Lots of power but very controllable. Im now a gear drive convert.
Acedeck® Nomad N1 Electric Skateboard-Best DKP All-terrain Electric Skateboard
Absolutely fantastic experience riding this board. First 30 miles in E mode and I still have almost half battery left?!? Super powerful and easy to use, the wheels are soft and plush and grippy. Only issue: One axle was not fully screwed in? I contacted Acedeck but never heard back from them. Hope it’s ok, as I didn’t adjust anything I just left it.
Acedeck® Stella S3 Breeze Electric Longboard-Powerful& Long Range
Store owner replied: Hi George, We replied to your email from customercare@acedeckboards.com on July 28th 2026. Please check your spam/junk or other folders and reply back to us when you find it. We are currently waiting for your response. If you still cannot find our reply, please send us a new email and include a secondary email address in CC so you can make sure you receive all future responses from our side. Thank you!
This is my first mountain board. I did a lot of research. I am an avid snowboarder that moved to Missouri the flatlands so I needed something to do. I love it. This is exactly what I needed.
Acedeck® Nyx Z3 Off-road Electric Skateboard 3.0-Best off-road electric skateboard
Great board keep up the good work. I ride my skateboard more than I ride my bike or Anything else..
Acedeck® Stella Blizzard-Most Powerful Portable Electric Skateboard & Shortboard
Wow. I am blown away of how nimble and stable this board is. I was skeptical at first since in a lighter rider (150lbs) and the board came stock with 95a / 98a bushings it being a stiffer ride, but oh boy was I wrong. This board made you want to go fast and take those deep carves with precision. If you’re thinking about getting one, this is worth every $$$$
Acedeck® Ares X5 Electric Skateboard-High Performance All-terrain/ Carbon Fiber
I started with an Acedeck N3 and put a few hundred miles on it before it was stolen. I loved the N3 but thought I'd save a little money and try the N1. The N1 is a great board; I have about 200 miles on it. I'm a bigger guy at 225lbs and the N1 2in1 does struggle on longer hills that the N3 never slowed down on. I think the 2.8 Gear drive is the biggest factor. The N1 motors are a little smaller and have a little higher KV, but with the 4.0 Gear drive, I think it would be a perfect board. I like that the N1 is a little lighter; it seems to be very well built. I plan to buy another Acedeck board soon, but it will be the N3.
Acedeck® Nomad N1 Electric Skateboard-Best DKP All-terrain Electric Skateboard
Rear light looks nice, battery lasts forever and one minus is for that smart braking light. It only recognizes hard stops and rapid change of moving speed.
Acedeck® Electric Skateboard Tail Light(CNC light bracket) - All boards
Acedeck is at a whole other level. From unboxing to the bottom of the first battery cycle it was a joy. The gear drives make this purchase worth the expense. Super smooth with a sound that leaves trail walkers speachless.
Acedeck® Nomad N1 Electric Skateboard-Best DKP All-terrain Electric Skateboard
