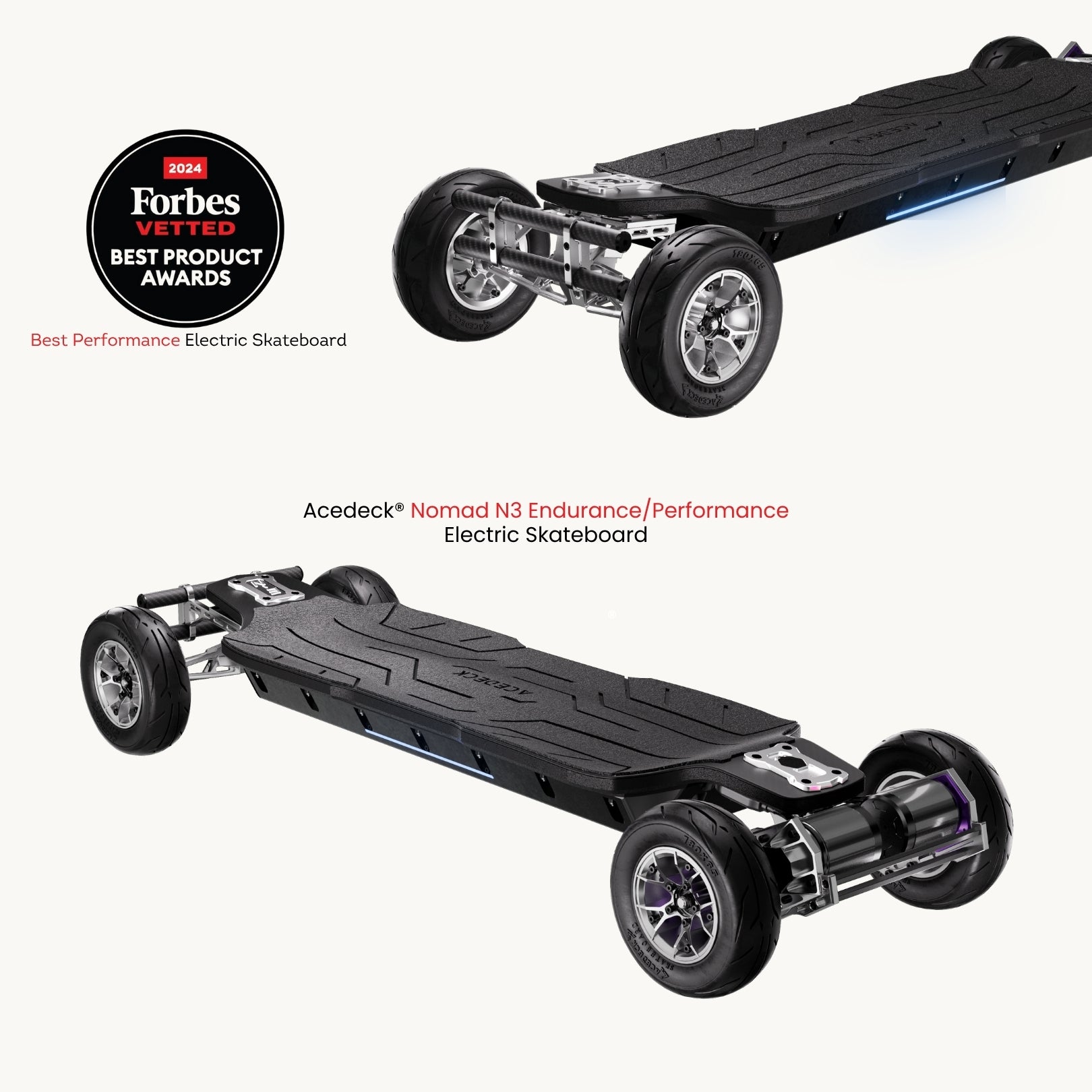

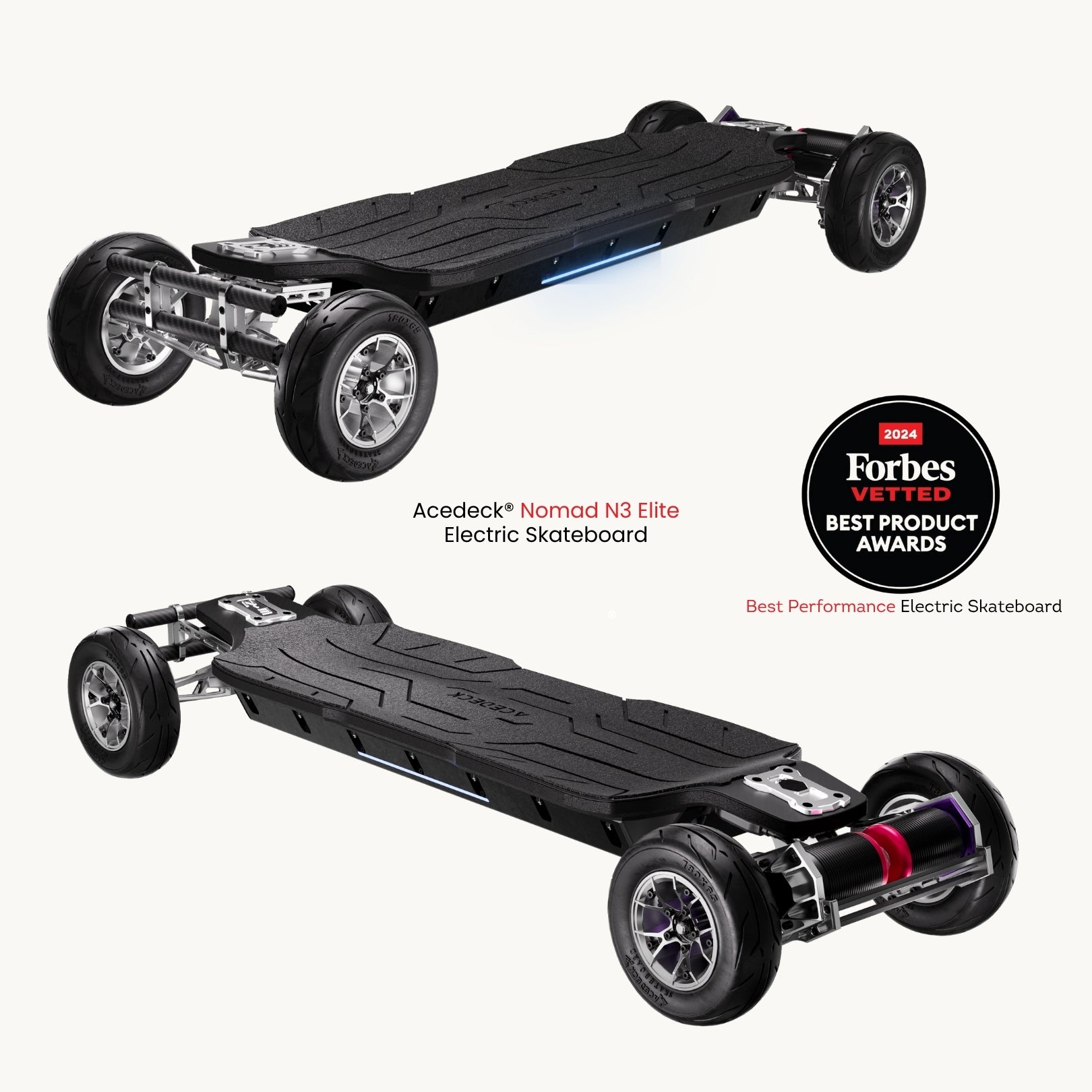

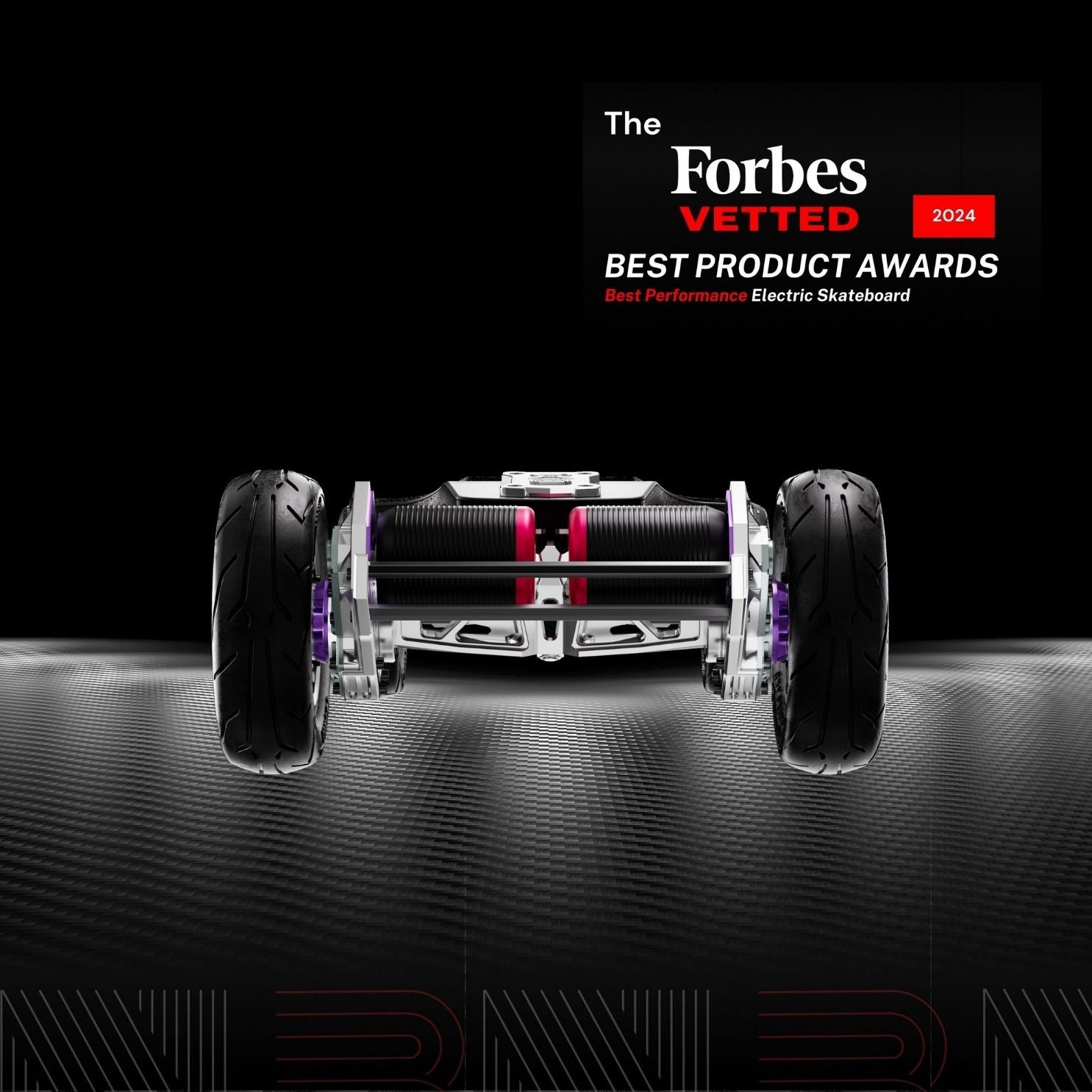

Acedeck® Nomad N3 Electric Skateboard
Version
Belt /Gear Drive
Choose the way you like to ride.
No matter how you ride, it's all about the fun.

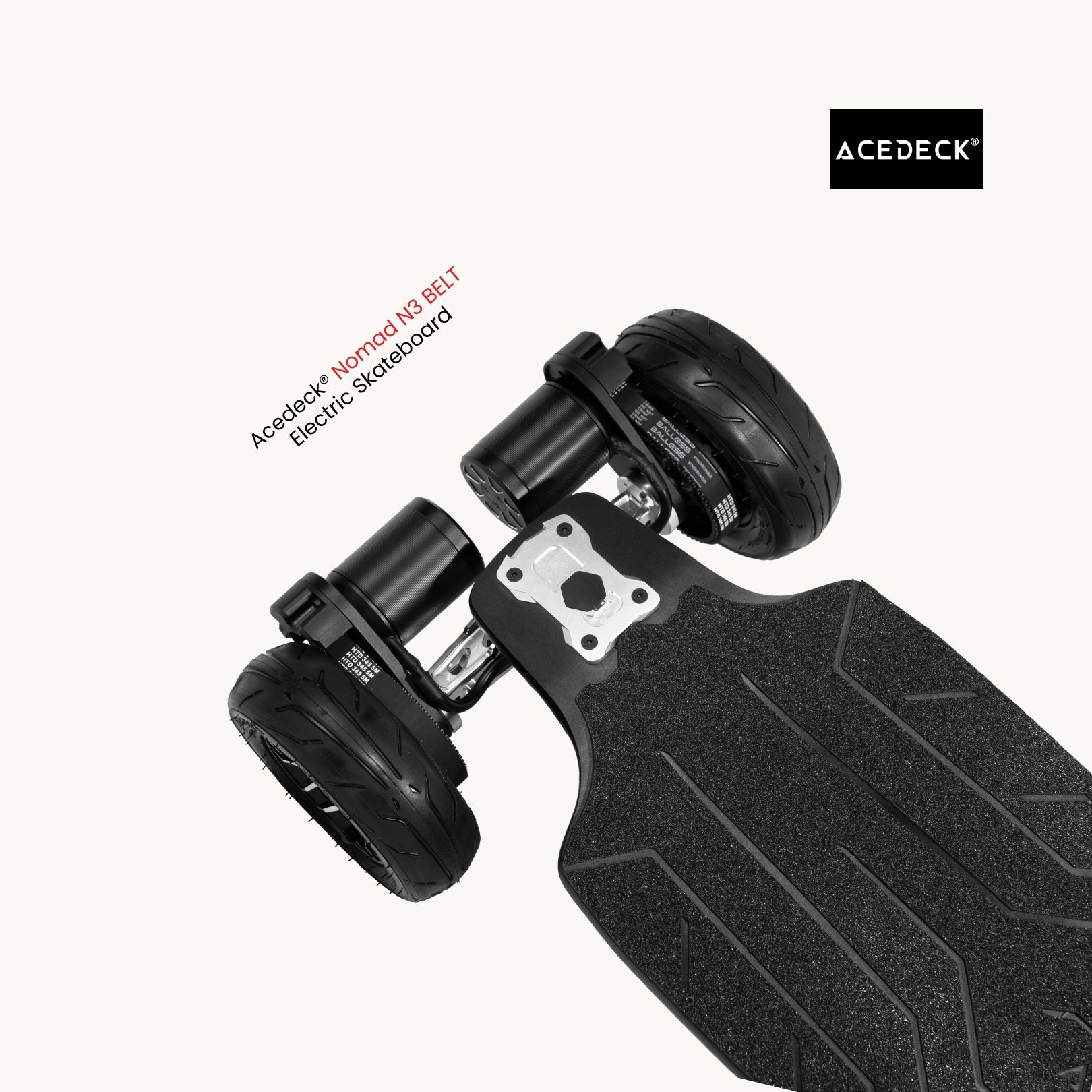

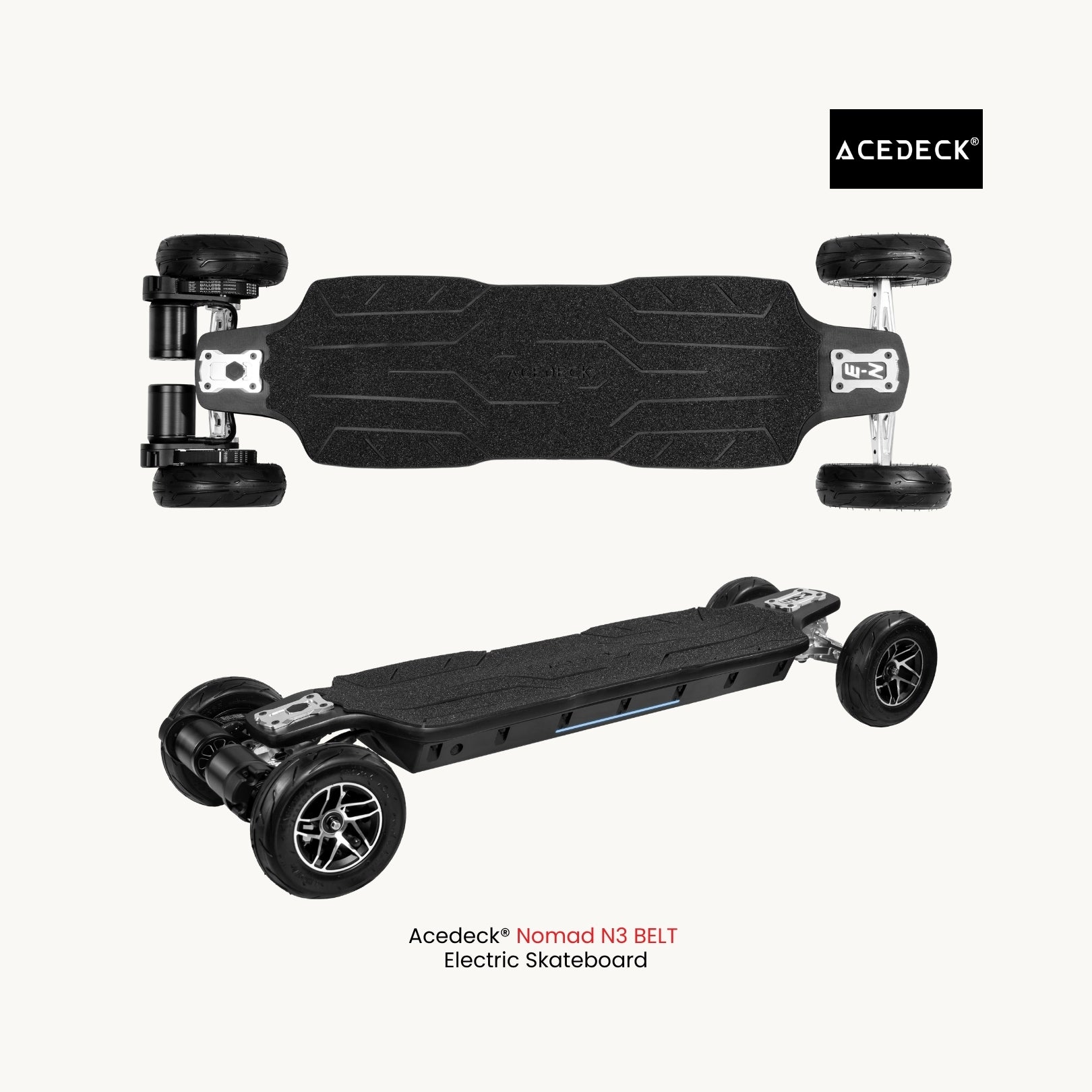

Belt Drive

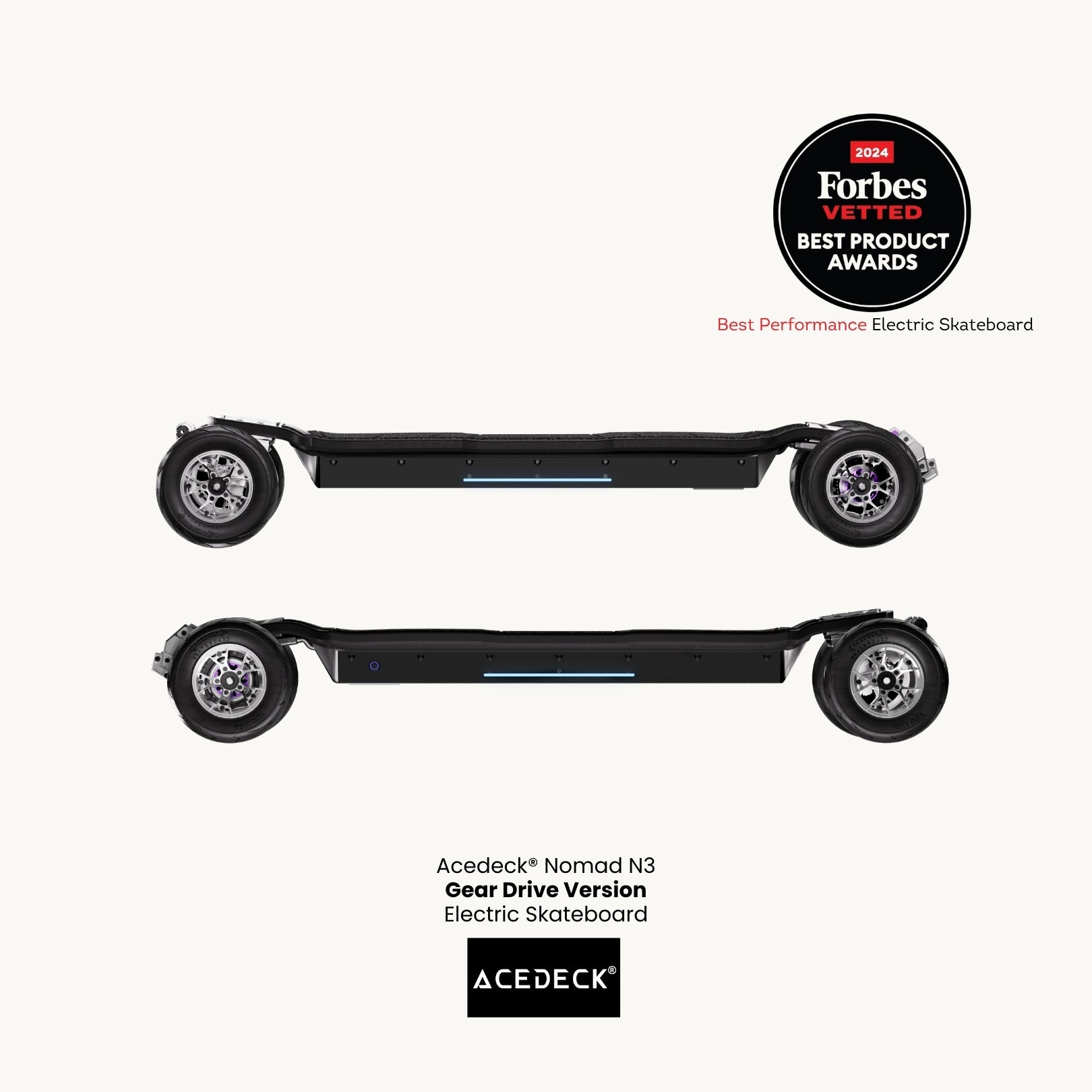

Gear Drive
Acedeck® Nomad N3 Electric Skateboard
Further. Faster. Nimble. Stable.
- Ultimate endurance:
- Up to 90km/ 56 miles Range(Gear Drive-1554Wh)
Up to 80km/ 49 miles Range(Gear Drive-1305Wh)

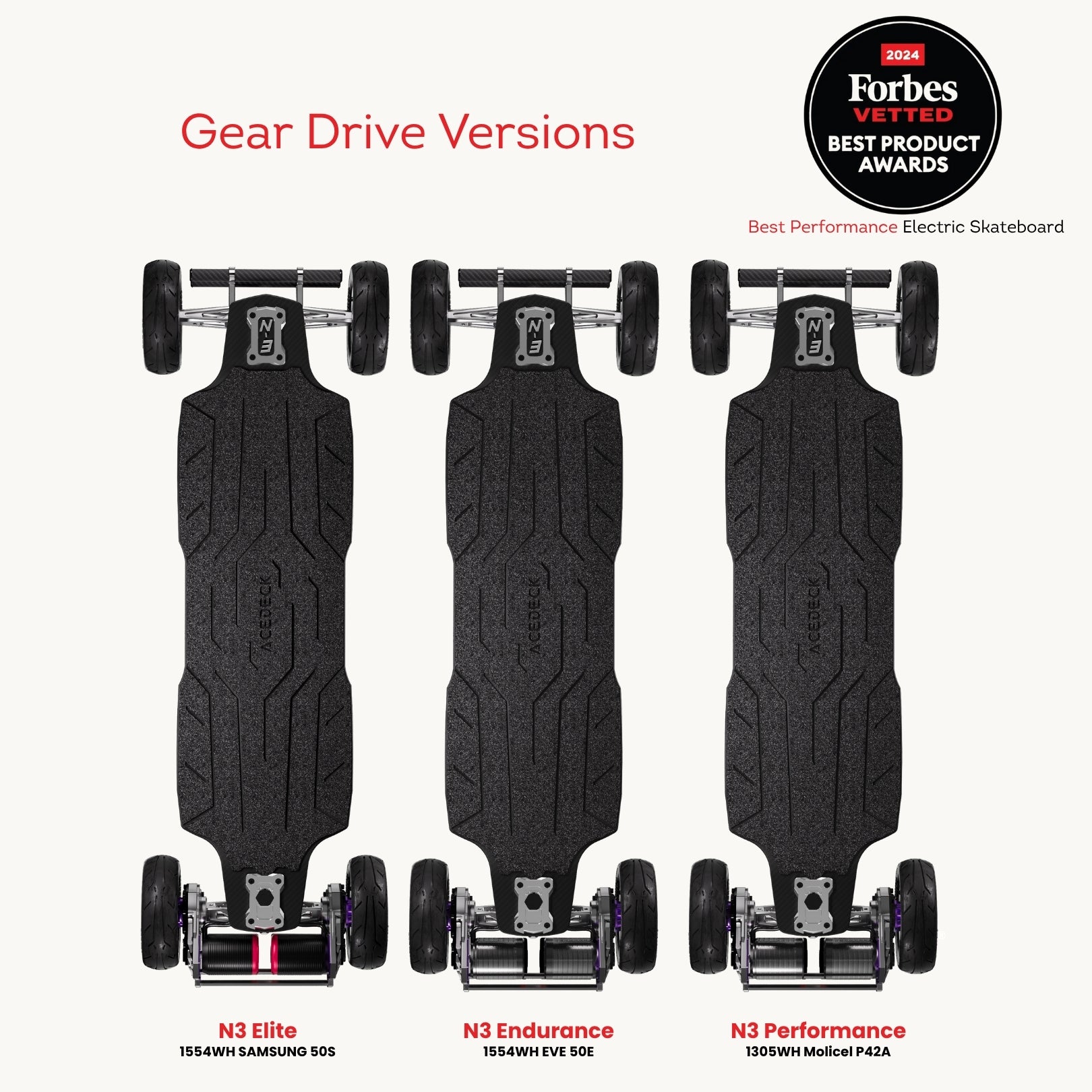

Up to 75km/47miles Range(Belt Drive-1295Wh) - Acedeck Gear Drive 4.0- Element AT Gear Drive/Belt Drive

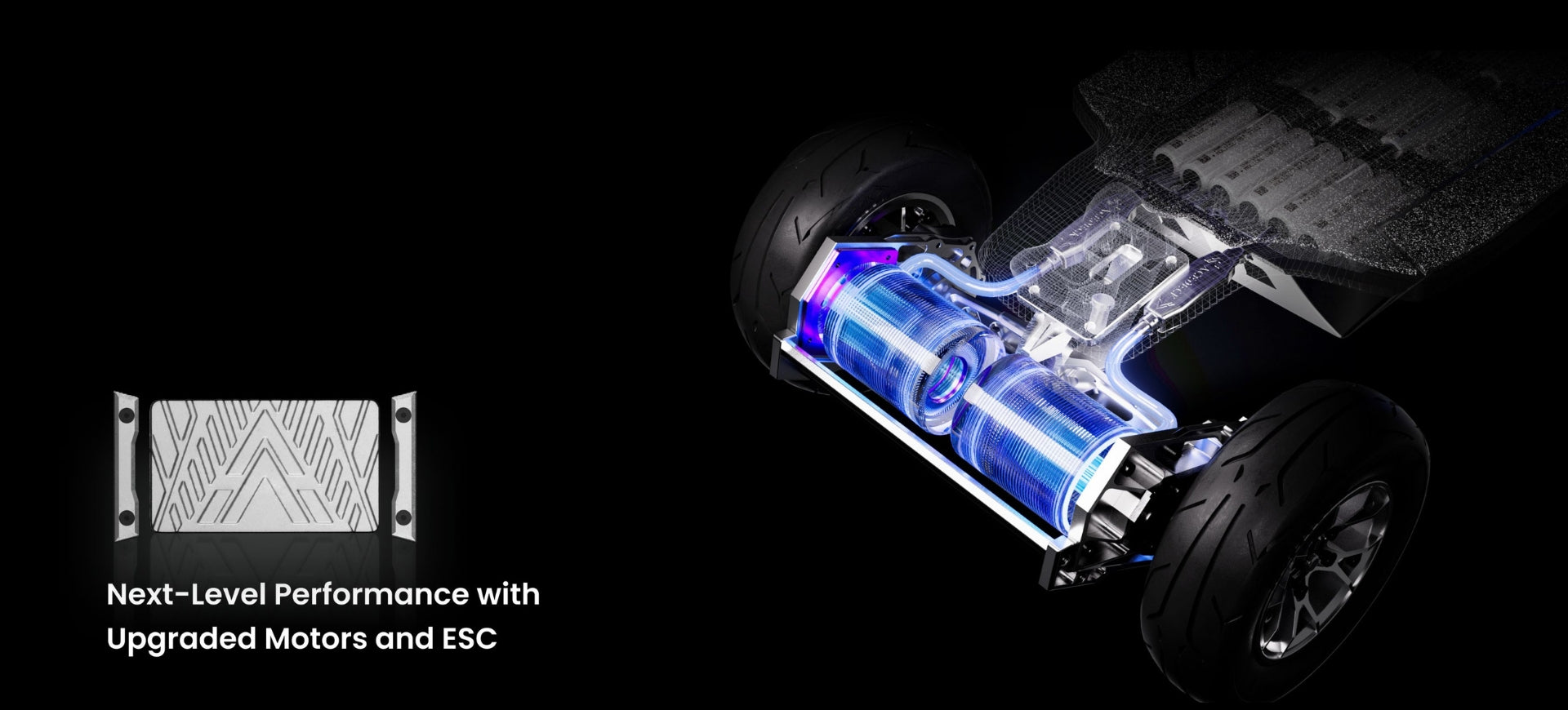

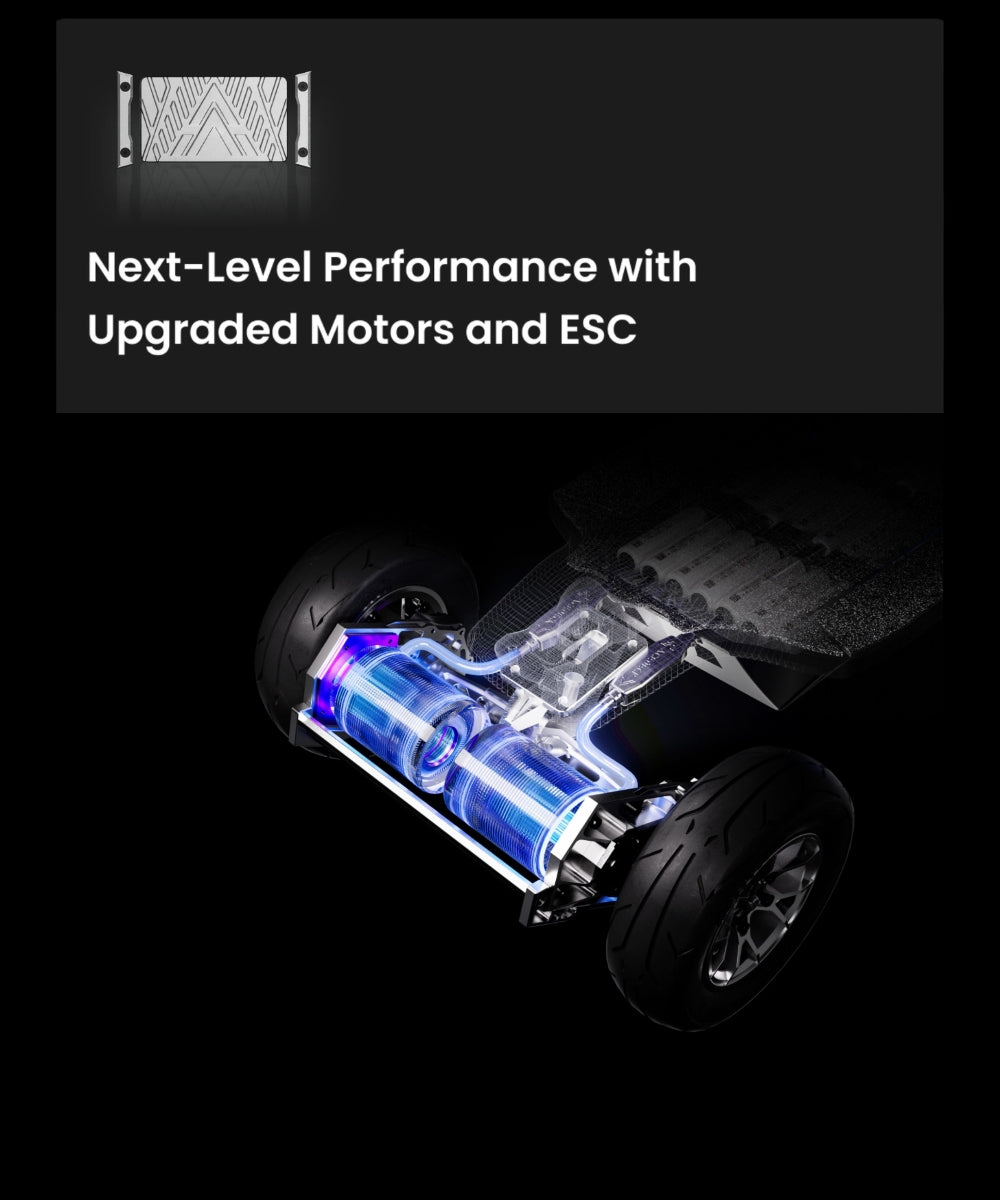

- A new generation of ESC: 145A
- Up to 60kph/ 37mph Top Speed

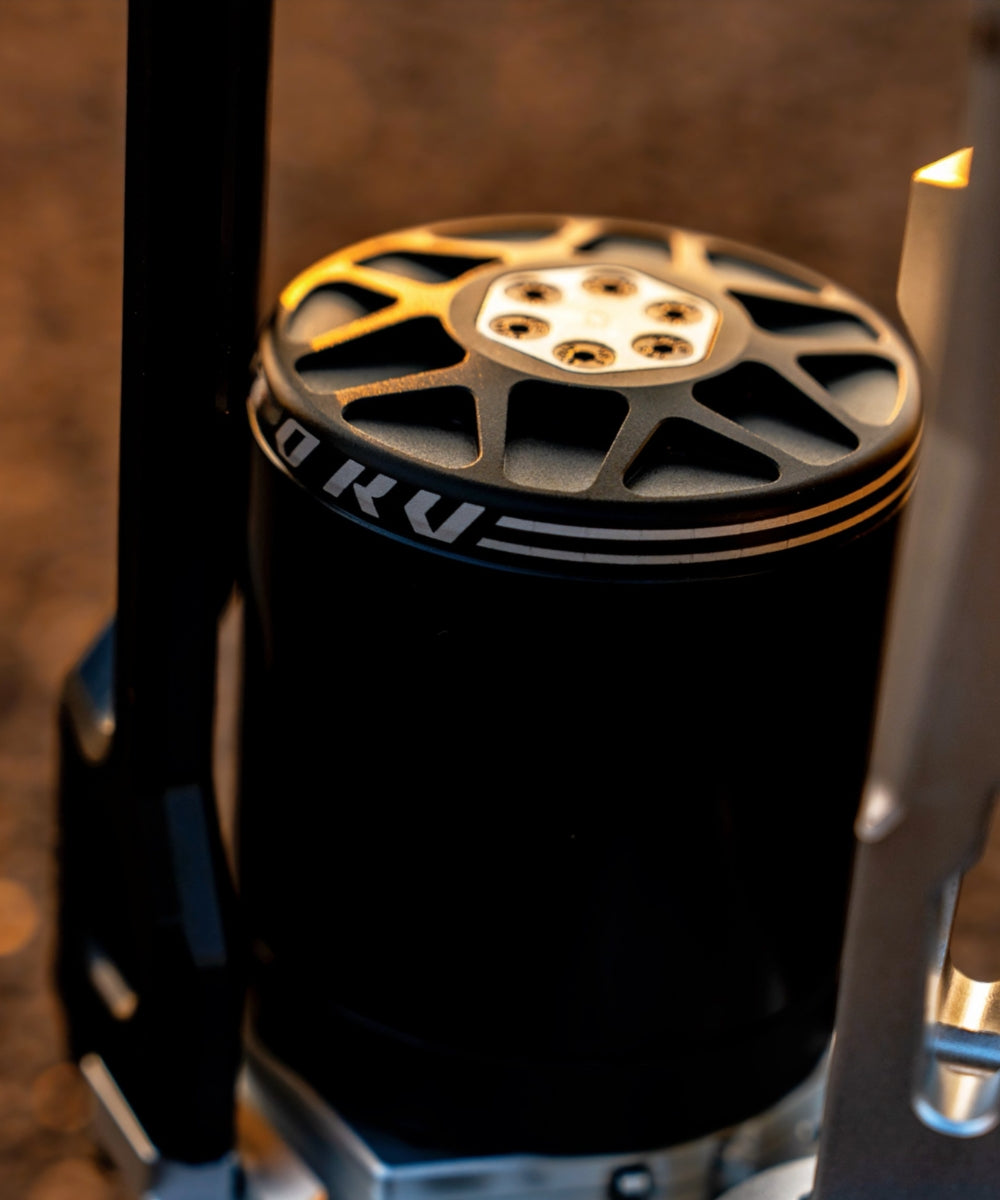

- 6890/6384 custom-designed motors, renowned for their exceptional torque, performance, and reliability.
- Wheel: AT 7 inches(180*65mm)Pneumatic wheels With CNC aluminum Hub
- Acedeck premium CNC materials, unbreakable
- Max load: 150kg
- Vibrant LED lights

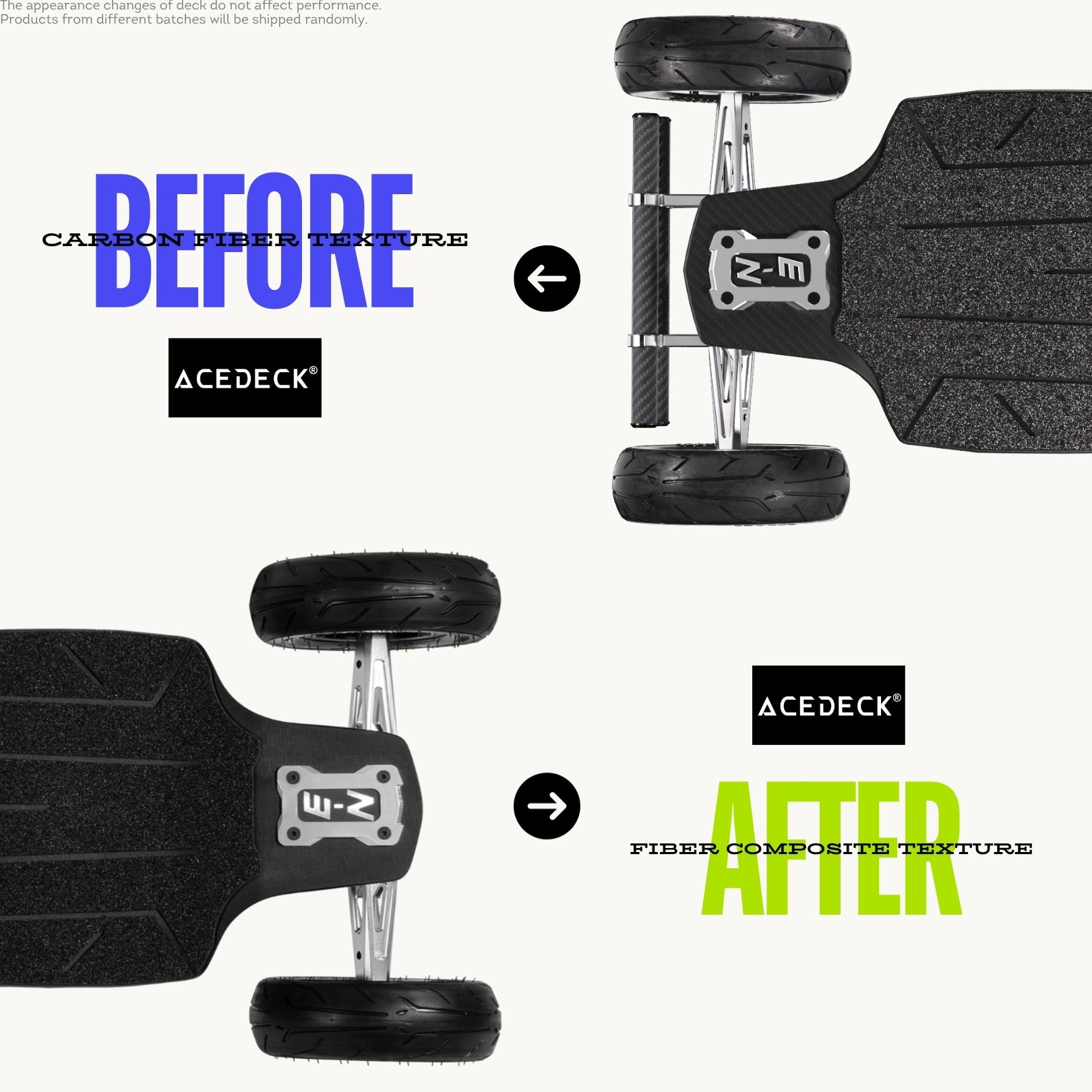

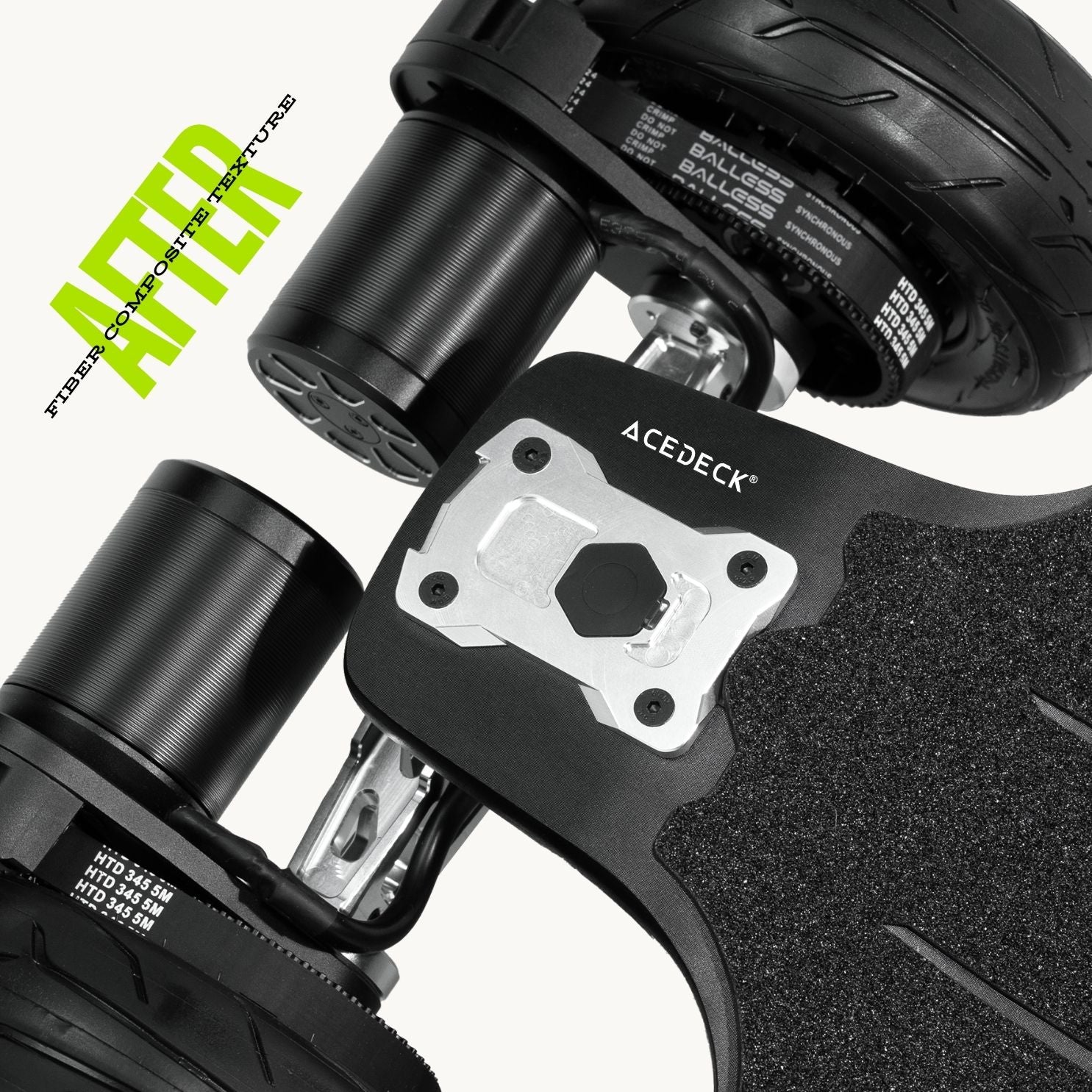

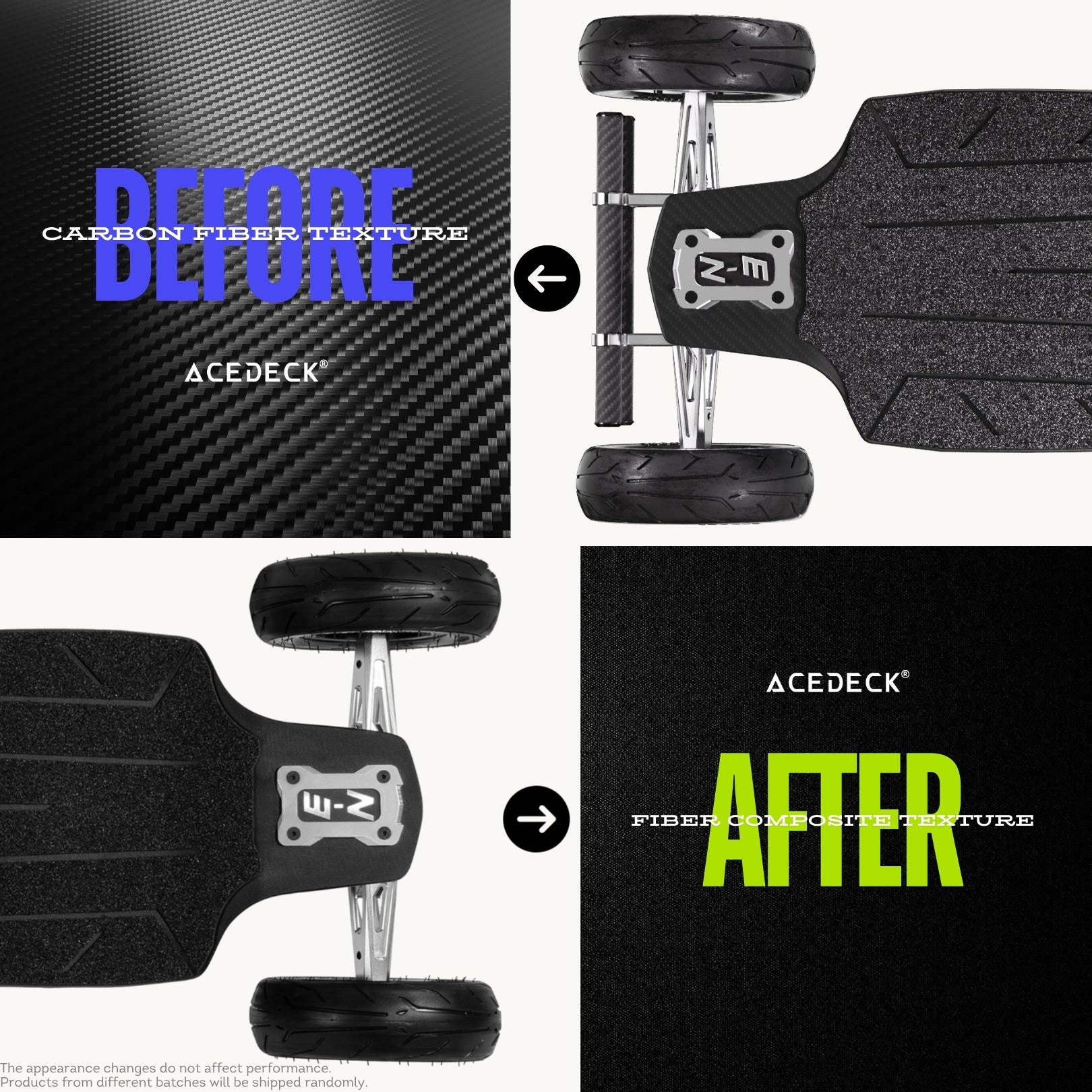

*Please kindly note that the texture and material of the deck may vary between batches. These differences in appearance will not affect the performance. Shipments will be made randomly from different batches.

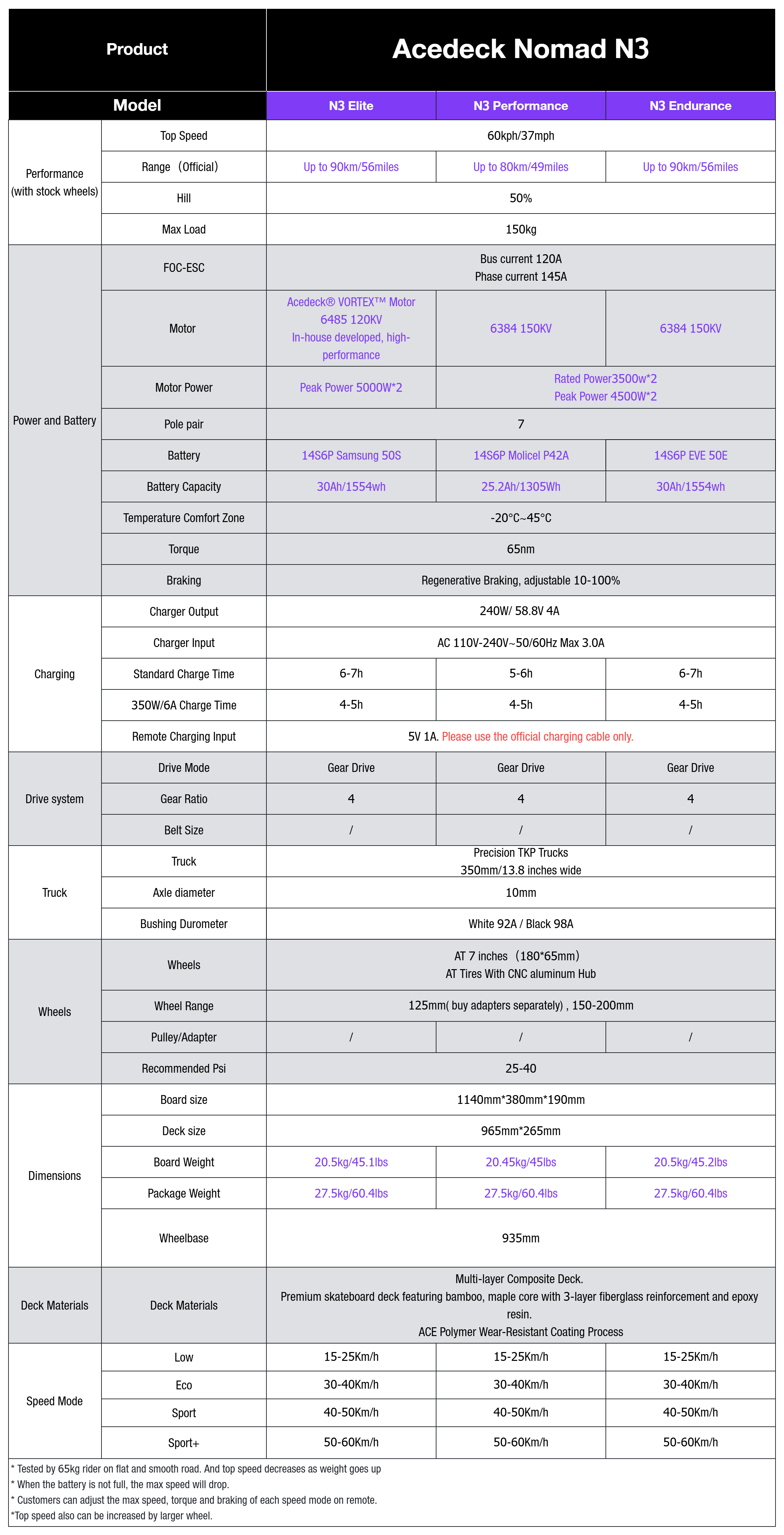

Specs
Shipping & Delivery
Delivery Timeline

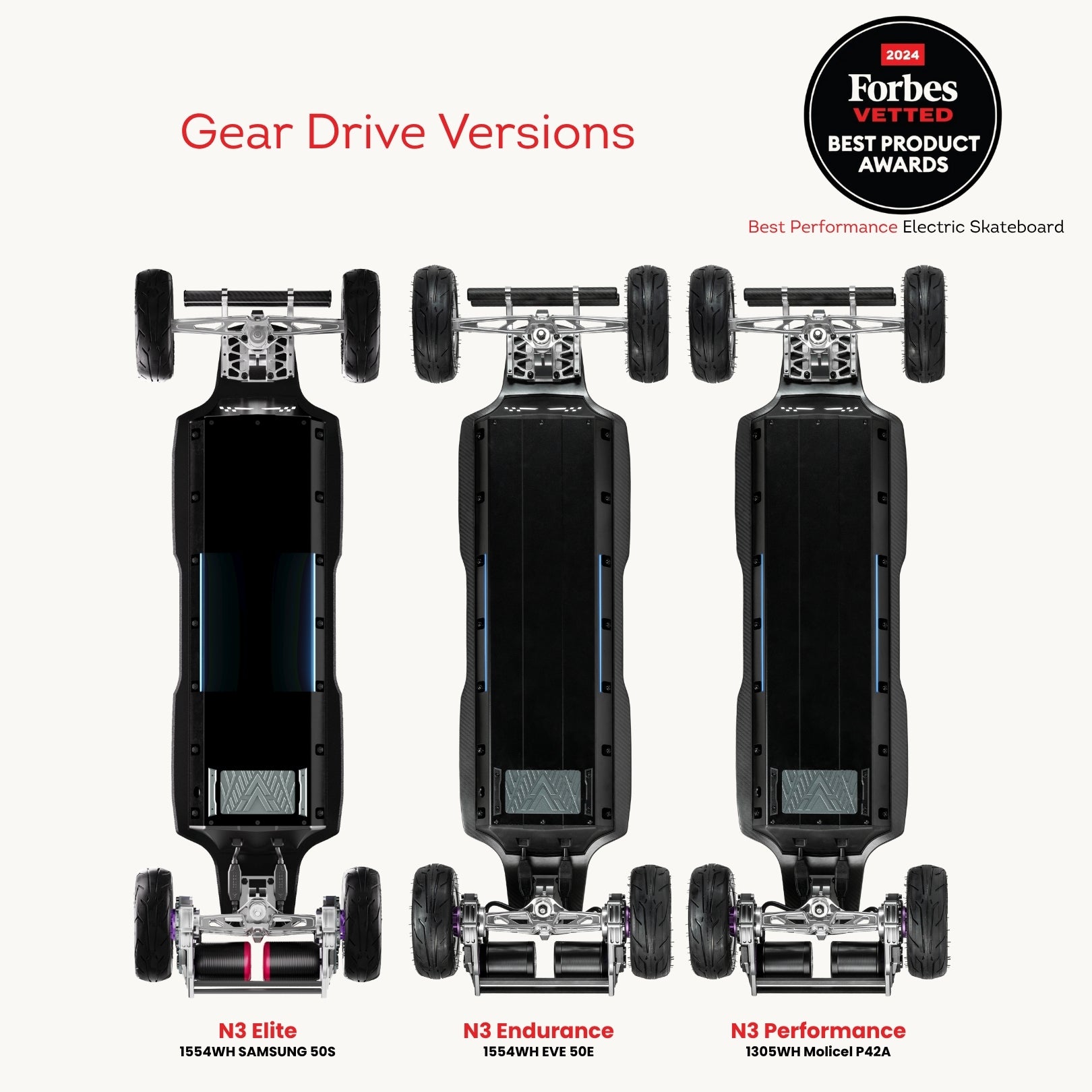

Gear Drive Version(50E/P42A)
- US: Domestic Delivery (1-7 Days)
- EU: Domestic Delivery (3-8 Days)
- Australia: Domestic Delivery (2-8 Days)
- Canada: Domestic Delivery (2-8 Days),start shipping from Canadian warehouse since September 6.
- Other countries: Please check the delivery time on your checkout page.
Gear Drive Version(50S)
- US: Domestic Delivery (1-7 Days)
- EU: Domestic Delivery (3-8 Days),start shipping from October 15th.
- Australia: Domestic Delivery (2-8 Days),start shipping from October 24th.
- Canada: Domestic Delivery (2-8 Days),start shipping from Canadian warehouse since November 20th.
- Other countries: Please check the delivery time on your checkout page.
Belt Drive Version
- US: Domestic Delivery (1-7 Days)
- EU: Domestic Delivery (3-8 Days)
- Other countries: Please check the delivery time on your checkout page.
What's In The Box?
- Fully Assembled eBoard with All Terrain 180mm wheels
- Remote Control with USB Charging Cable * 1
- Extra Foam Griptape * 1
- 17mm Wrench * 1
- Torx Wrench (2.5mm & 3mm) * 1
- PU (95A 16mm* 2-white, 98A 16mm*2-black)
- Charger (US/AU/EU plug ) * 1
- Coupling*2 (for gear drive version only)
- Quick Start Guide * 1
- Acedeck Stickers*n
- Screw * n
Delivery Timeline
Gear Drive Version(50E/P42A)
- US: Domestic Delivery (1-7 Days)
- EU: Domestic Delivery (3-8 Days)
- Australia: Domestic Delivery (2-8 Days)
- Canada: Domestic Delivery (2-8 Days),start shipping from Canadian warehouse since September 6.
- Other countries: Please check the delivery time on your checkout page.
Gear Drive Version(50S)
- US: Domestic Delivery (1-7 Days)
- EU: Domestic Delivery (3-8 Days),start shipping from October 15th.
- Australia: Domestic Delivery (2-8 Days),start shipping from October 24th.
- Canada: Domestic Delivery (2-8 Days),start shipping from Canadian warehouse since November 20th.
- Other countries: Please check the delivery time on your checkout page.
Belt Drive Version
- US: Domestic Delivery (1-7 Days)
- EU: Domestic Delivery (3-8 Days)
- Other countries: Please check the delivery time on your checkout page.
- Fully Assembled eBoard with All Terrain 180mm wheels
- Remote Control with USB Charging Cable * 1
- Extra Foam Griptape * 1
- 17mm Wrench * 1
- Torx Wrench (2.5mm & 3mm) * 1
- PU (95A 16mm* 2-white, 98A 16mm*2-black)
- Charger (US/AU/EU plug ) * 1
- Coupling*2 (for gear drive version only)
- Quick Start Guide * 1
- Acedeck Stickers*n
- Screw * n
This product has no reviews yet.
All Models
COMPARE
This product has no reviews yet.

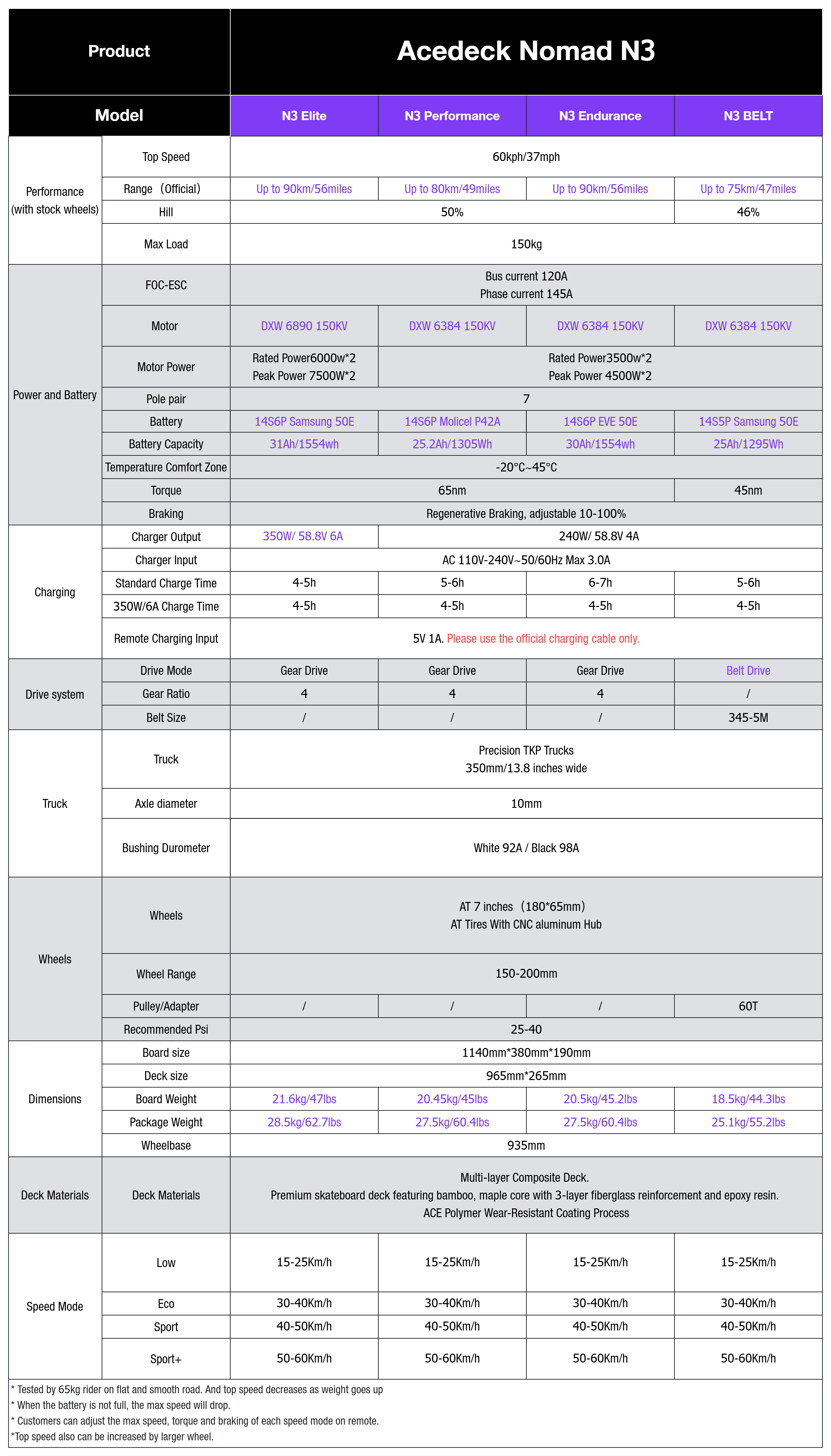

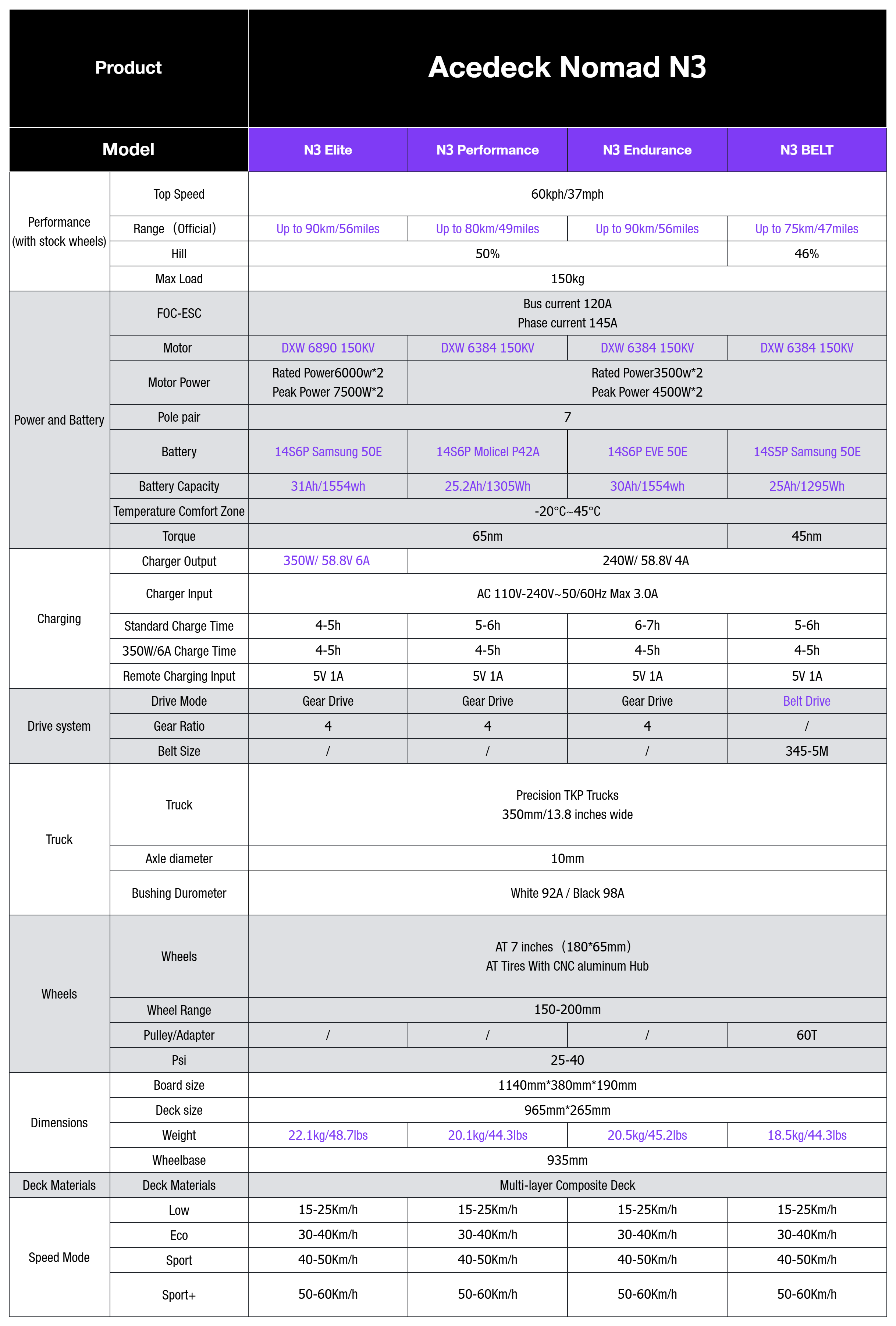

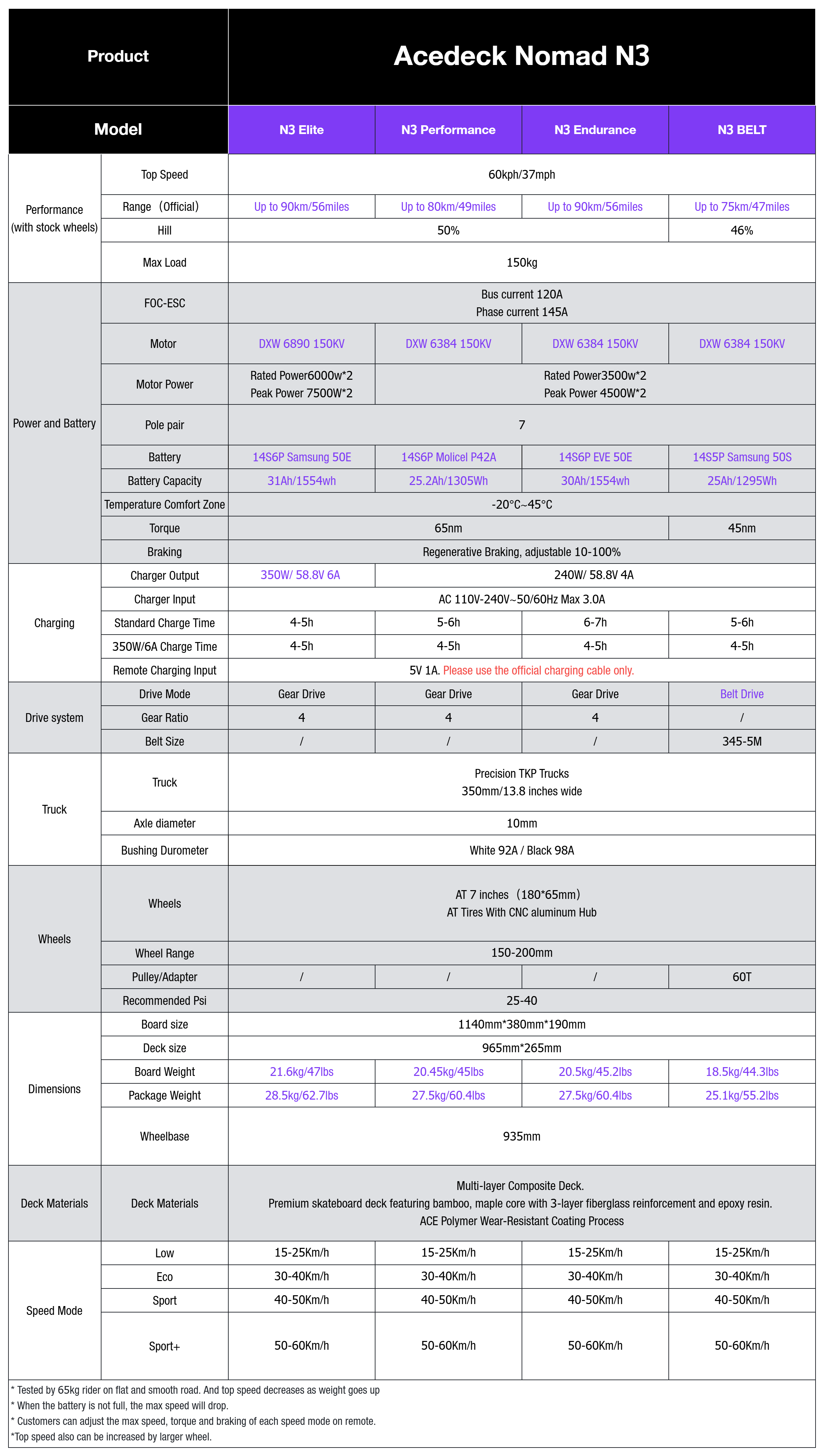

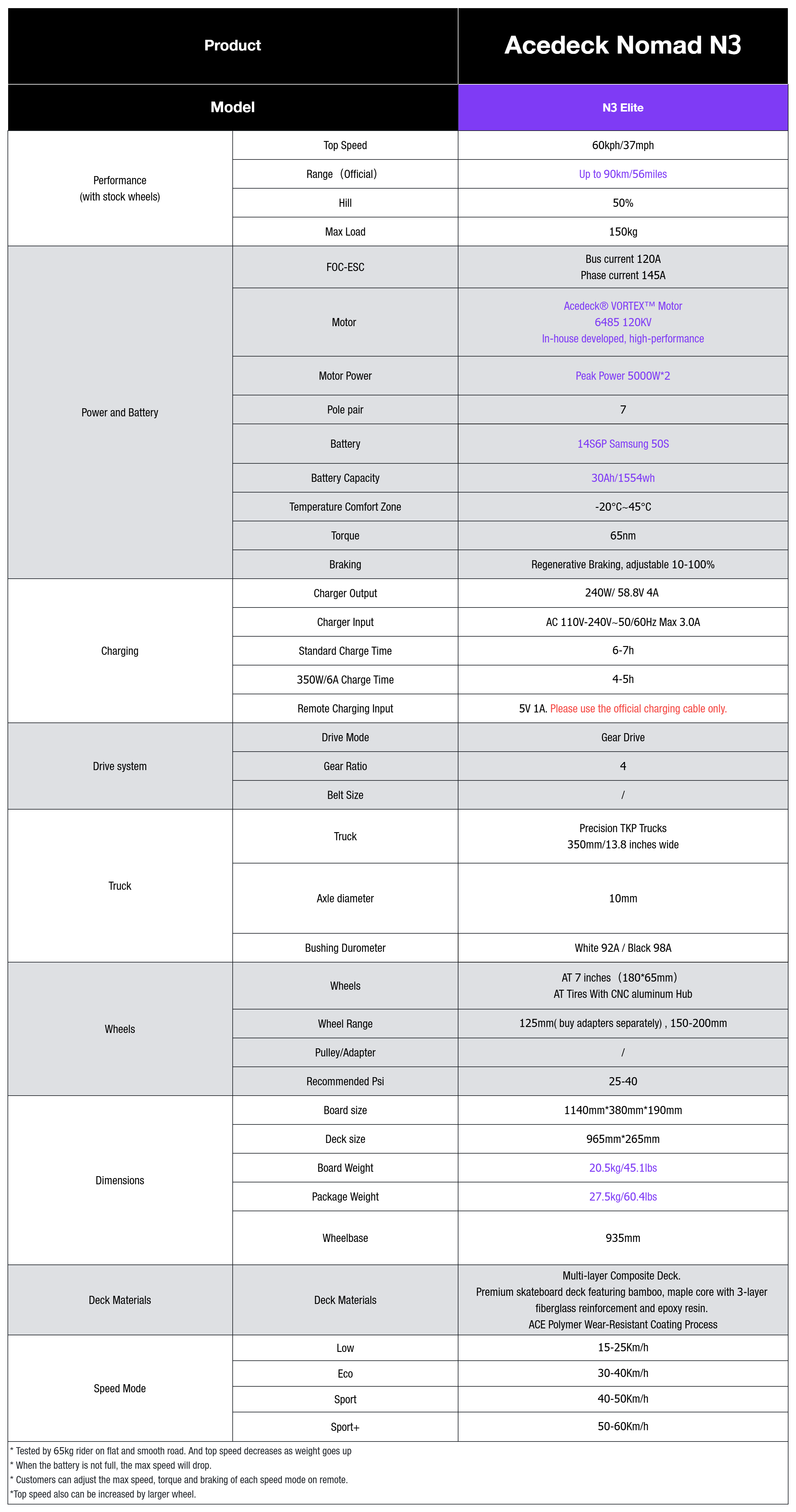

PERFORMANCE | ||||||
Top Speed | 60kph/37mph | 60kph/37mph(By 200mm wheel) | 60 kph / 37 mph(By 200 mm wheel) | 60kph/37mph | 60kph/37mph | 60kph/37mph (By 105mm wheel) |
Range | Up to 75km/47miles | Up to 40km/25miles | Up to 40km/25miles | Up to 80 km / 49 miles | Up to 40km/24miles, Up to 60km/37miles, Up to 80 km / 49 miles, Up to 95km/59miles, Up to 70km/43miles | Up to 50km/31miles |
Hill | 46% | 46% | 50 % | 50 % | 50% | 46% |
Max Load | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 200kg |
POWER AND BATTERY | ||||||
FOC-ESC | Bus current 70A, Phase current 120A | 60A | 120A | Bus current 120A,Phase current 145A | Bus current 120A,Phase current 145A | Bus current 70A, Phase current 120A |
Motor | 6384 150KV | 6384 150KV | 6384 150KV | 6384 150KV | 6384 150KV | 6374 170KV |
Motor Peak Power | Rated power 3500w*2, Peak power 4500w*2 | 3500w×2 | 3500w×2 | 3500w×2 | Rated power 3500w*2, Peak power 4500w*2 | 3500w×2 |
Pole pair | 7 | 7 | 7 | 7 | 7 | 7 |
Battery | 14S5P Samsung 50E | 14S3P Molicel P42A | 14S3P Molicel P42A | 14S5P Samsung 50E | 14S4P Samsung | 14S3P Samsung 50S |
Battery Capacity | 25Ah/1295Wh | 12.6Ah/ 652Wh | 12.6Ah/ 652Wh | 25Ah/ 1295Wh | 30Ah/1554Wh | 15Ah/ 777Wh |
Temperature Comfort Zone | -20°C~45°C | -20°C~45°C | -20°C~45°C | -20°C~45°C | -20°C~45°C | -20°C~45°C |
Torque | 45N·m | 45N·m | 65 N·m | 65 N·m | 65 N·m | 45N·m |
CHARGING | ||||||
Charger | 58.8V 4A | 58.8V 4A | 58.8V 4A | 58.8V 4A | 58.8V 4A | 58.8V 4A |
Charger Input | AC 110V-240V~50/60Hz Max 3.0A | AC 110V-240V~50/60Hz Max 3.0A | AC 110V-240V~50/60Hz Max 3.0A | AC 110V-240V~50/60Hz Max 3.0A | AC 110V-240V~50/60Hz Max 3.0A | AC 110V-240V~50/60Hz Max 3.0A |
Charge Time | 4-5h | 3h | 3-4h | 5-6h | 5-6h | 3-4h |
6A Charge Time | 4-5h | 2h | 2-3h | 4-5h | 4-5h | 2.5h |
Remote Charging Input | 5V 1A | 5V 1A | 5V 1A | 5V 1A | 5V 1A | 5V 1A |
DRIVE SYSTEM | ||||||
Drive Mode | Belt Drive | Belt Drive | Gear Drive | Gear Drive | Gear Drive | Gear Drive |
Gear Ratio | / | 4.3 | 4.3 | 4.3 | 4 | 2.8 |
Belt Size | 345-5M | 370-5M | / | / | / | / |
TRUCK | ||||||
Truck | Precision TKP Trucks 350mm/13.8 inches wide | Precision TKP Trucks | Precision CNC Trucks | Precision CNC Trucks | ACE Independent suspension truck based on Channel Truck configuration with EXA shock absorber | Precision TKP Trucks |
Bushing Durometer | Red 85A /White 75A | Orange 100A, Black 96A | Red 85A /White 75A | Red 85A /White 75A | Red 85A /White 75A | Front :White 95A 16mm Rear:Black 98A 16mm |
WHEELS | ||||||
Wheels | AT 7 inches(180*65mm) AT Tires | AT 7 inches(180×65mm)Pneumatic wheels | AT 7 inches (180*65mm) wheels | AT 8 inches(200×50mm)Pneumatic wheels | AT 8 inches(200×50mm)Pneumatic wheels | 105mm Mad Wheelz V2 |
Wheel Range | 160-200mm | 97-200mm | 160-200mm | 160-200mm | 160-200mm | 90-125mm |
Pulley/Adapter | / | 66T Kegel | / | / | / | Kegel Adapter & ABEC Adapter |
Psi | 25-40 | 25-40 | 25-40 | 25-40 | 25-40 | / |
DIMENSIONS | ||||||
Board size | 1140mm*380mm*190mm | 1117mm×370mm×200mm | 1065mm×441mm×240mm | 1085mm×441mm×250mm | 1110mm*455mm*295mm | 1060mm*400m*130mm |
Deck size | 965mm*265mm | 965mm×265mm | 920mm×265mm | 920mm×265mm | 920mm×265mm | 940mm×240mm |
Weight | 18.5kg/44.3lbs | 15kg/ 33.1lbs | 18kg/ 39.1lbs | 20.5kg/ 45.3lbs | 18.9kg | 13.6kg/29.2Ibs |
Wheelbase | 915mm | 940mm | 900mm | 900mm | 915mm | 910mm |
DECK MATERIALS | ||||||
Deck Materials | Multi-layer Composite Deck | Multi-layer Composite Deck | Multi-layer Composite Deck | Multi-layer Composite Deck | Multi-layer Composite Deck | Premium T700 3K Carbon Fiber |
WATER PROOF | ||||||
Water Proof | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
SPEED MODE | ||||||
Low | 15-25Km/h | 10-20Km/h | 10-20Km/h | 15-25Km/h | 15-25Km/h | 15-25Km/h |
Eco | 30-40Km/h | 25-35Km/h | 25-35Km/h | 30-40Km/h | 30-40Km/h | 25-40Km/h |
Sport | 40-50Km/h | 35-45Km/h | 35-45Km/h | 40-50Km/h | 40-50Km/h | 40-50Km/h |
Sport+ | 50-60Km/h | 45-55Km/h(By 180mm wheel) | 45-55Km/h(By 180mm wheel) | 50-60Km/h(By 200mm wheel) | 50-60Km/h | 50-60Km/h |
